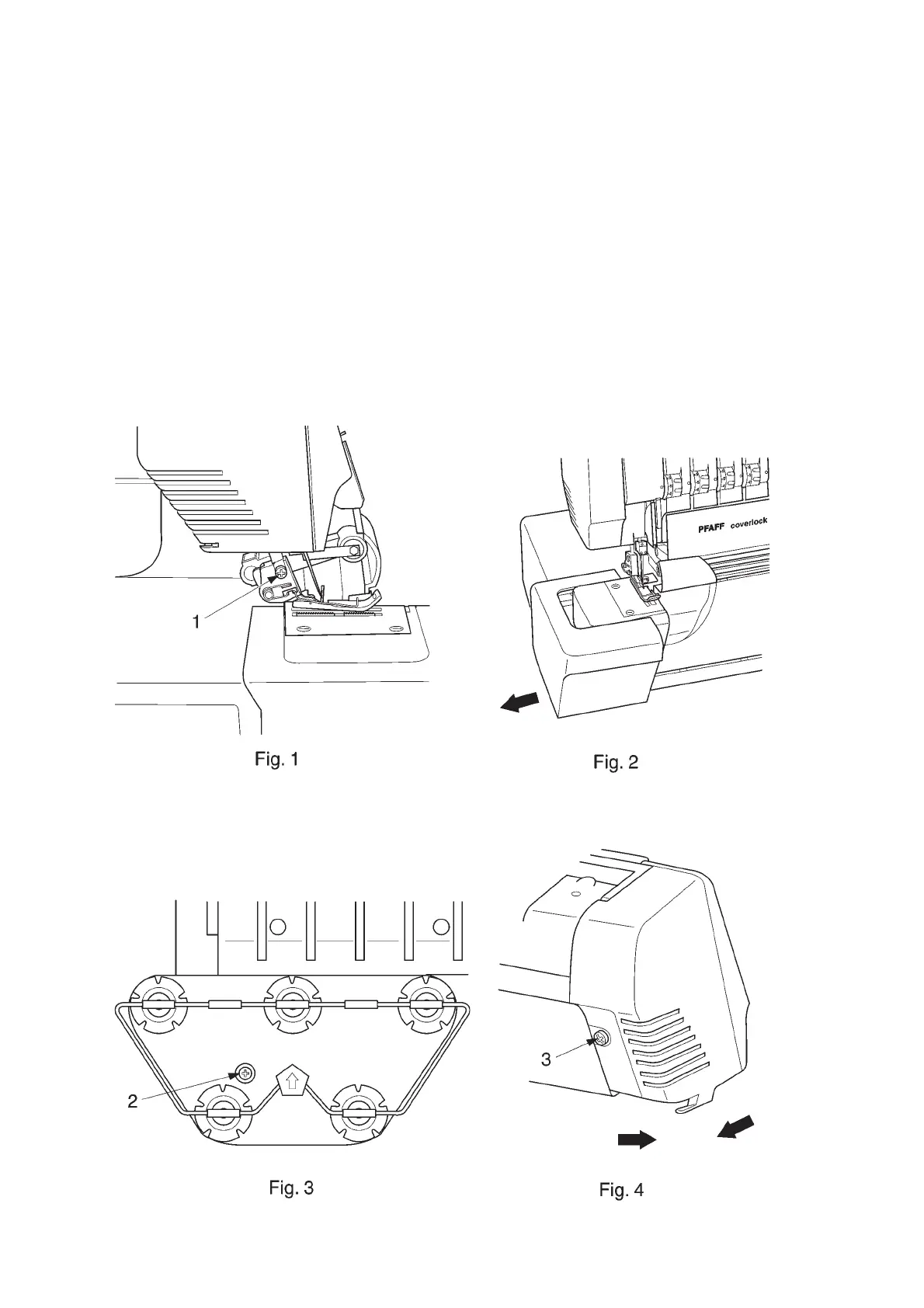

Dismantling the housing of the coverlock 4772
● Remove the mains plug from the machine.
● Remove the fastening screw 1 (figure 1).
● Remove the presser foot holder completely.
● Remove the needles.
● Remove the detachable work support / free arm to the left (figure 2).
● Remove the fastening screw 2 (figure 3)
● Remove the spool holder completely by pushing it a little to the right and then removing it from the
rear of the machine.
● Unscrew the fastening screw 3 (figure 4).
● Remove the face cover by turning it in the direction of the arrow.
● Remove the accessory box to the left
7
