Setting the needle guards
23. Setting the rear needle guard
Requirement:

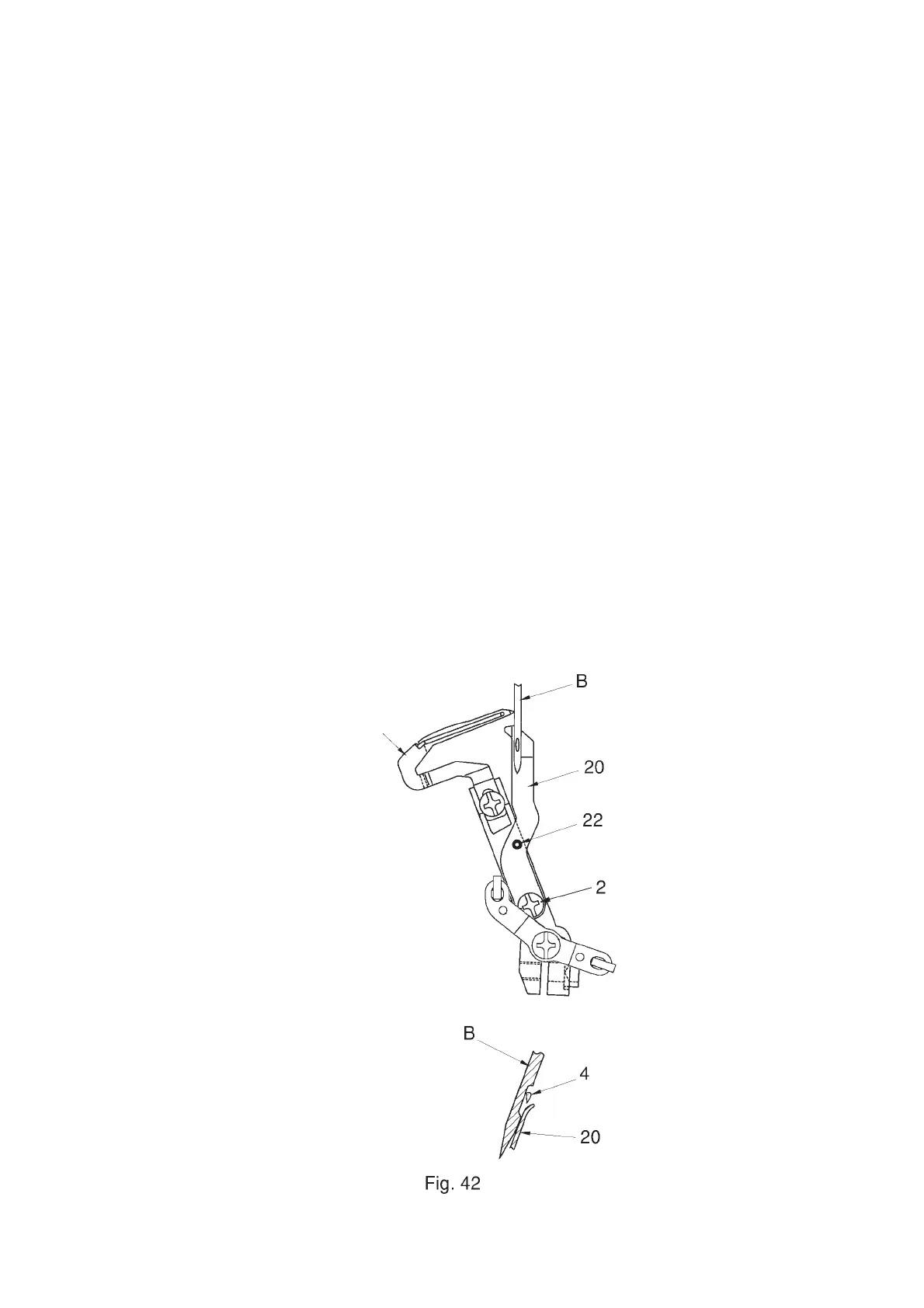

When the looper point of the lower overedge looper 4 is precisely in the center line of needle B and A
when moving to the right, the needles should be positioned right next to the rear needle guard 20 (figure
42).
Check:
Turn the handwheel in the normal direction until the looper point, when moving to the right,
is precisely behind needle B.
Check the distance.
Setting:
Turn the handwheel in the normal direction until the looper point, when moving to the right,
is precisely behind needle B.
Slightly loosen the screw 2.
Push the rear needle guard against the looper lever and position it in a parallel manner
as shown in figure 42.
Tighten the screw 2.
Using the screw 22, position the rear needle guard 20 so that it is located right next to the needle.
Test:
As described under “Requirement”.
42
