Pfaff coverlock 4772 Service Manual

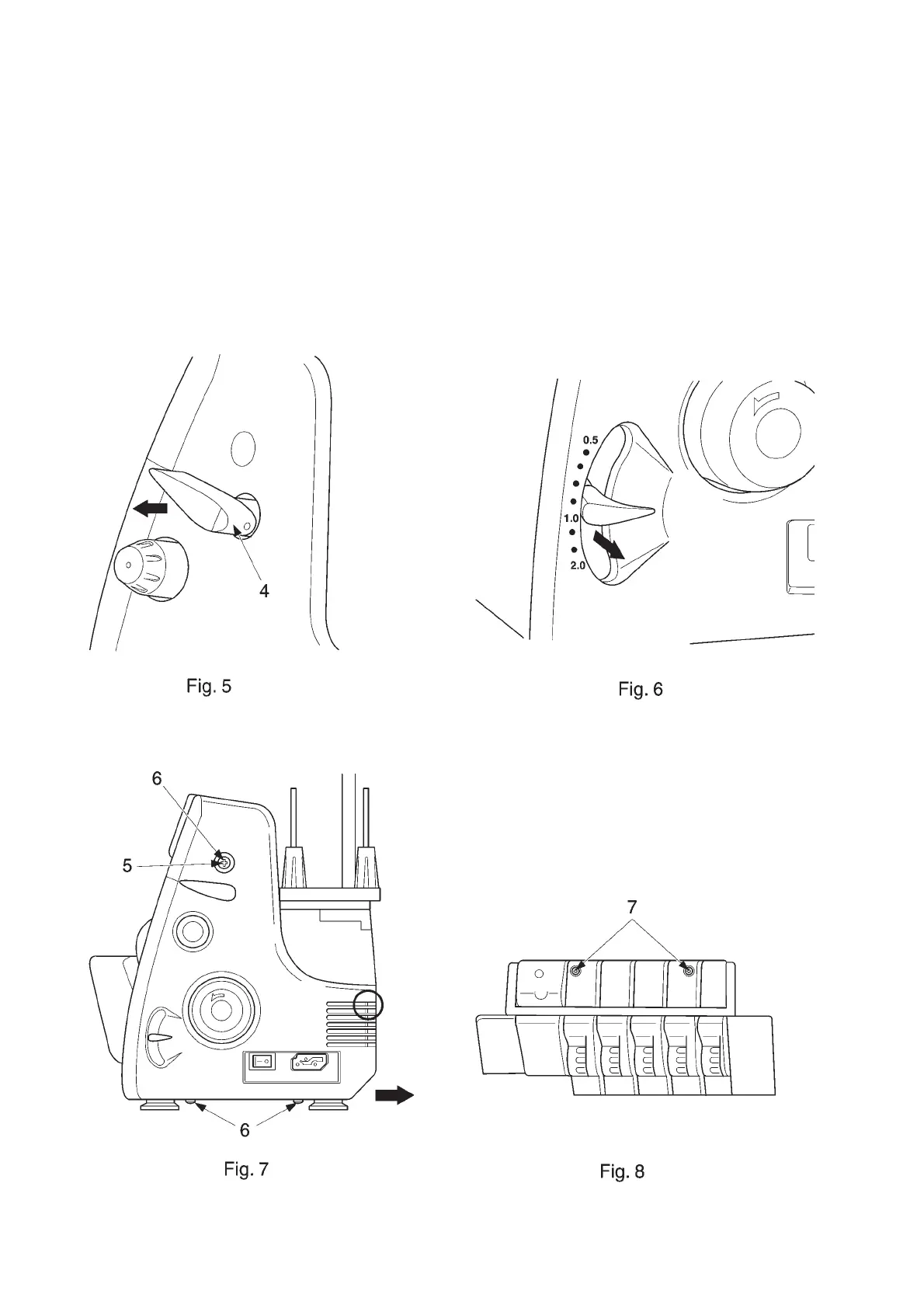

● Unscrew (approx. 3 turns) and remove the fastening screw 4 using a 2 mm Allen key (figure 5).
● Remove the differential setting knob to the right (figure 6).
● Remove the small cover to the motor guard (figure 7).
● Unscrew and remove the three fastening two screws 6 to the stand cover.
● Remove the stand cover by pushing it to the back.
● Unscrew and remove the fastening screws 7 (figure 8).
● Remove the arm cover upwards.
● Unscrew and remove the light bulb.
8

Pfaff coverlock 4772 Specifications

General

Brand	Pfaff
Model	coverlock 4772
Category	Sewing Machine
Language	English
