Connect devices

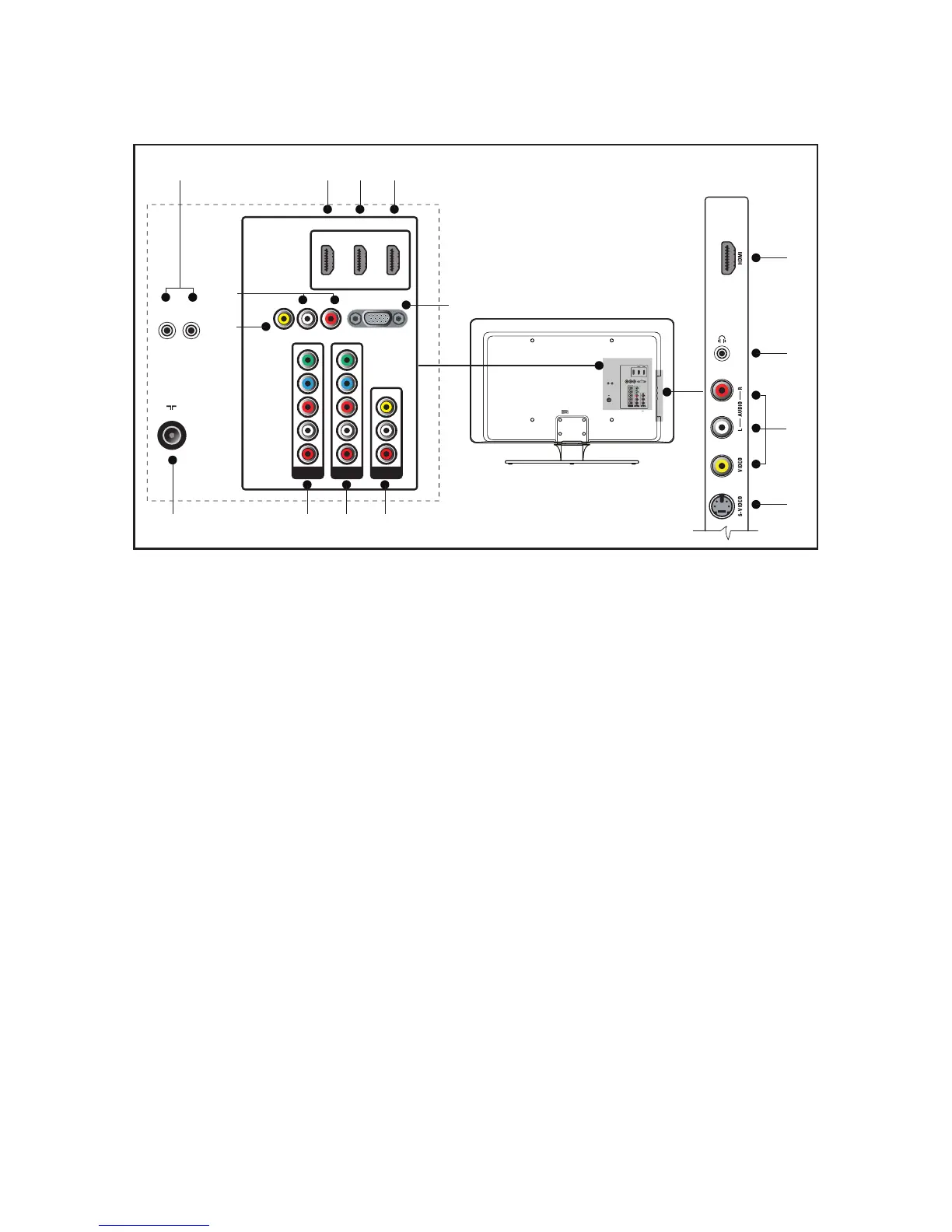

Connection overview
Antenna input1.
CVI-12.
Component video input. Y Pb Pr and
Audio L/R connectors for DVD, digital
receiver or game console, etc.
CVI-23.
Second component video input.
AVI IN4.
Composite video input to be used
together with Audio L/R connectors for
camcorder, game console, etc.
SPDIF Out5.
Digital audio out.
Audio IN for VGA6. .
Service ports7. (For service personnel)
HDMI 1 In 8.
HDMI in connector for Blu-ray Disc
player, HD digital receiver or game
cconsole, etc.
HDMI 3HDMI 2
AV1 IN
RL
AUDIO IN VGASPDIF OUT
L
R
VIDEO
HDMI 1
CVI-1
L
Pr
Pb
Y
R
CVI-2
L
Pr
Pb
Y
R
SERV . CPBS SX
TV ANT ENNA
75X
R
AUDIO INSPDIF OUT
HDMI 1
CVI-1
L
Pr
Pb
Y
R
SERV. CPBS SX
TV ANTENNA
75X
R
A
UDIO INSPDIF OUT
HDMI 1
CV
I-
1
L
Pr
Pb
Y
R
SERV.
C
P
BS SX
TV
ANTENN
A
7
5X
21 3 4
5
6
8 9 10
11
7
12
13
14
15
HDMI 2 In 9.
Second HDMI in connector.
HDMI 3 In 10.
Third HDMI in connector.
VGA 11.
Video Graphics connector for personal
computers.
HDMI In (Side)12.
See HDMI 1 In description.
Headphones13. (Side)
Stereo Mini Jack.
Video (Side)14.
Video input connector to be used
together with Audio L/R connectors for
camcorder, game console, etc.
S-Video (Side) 15.
S-Video input connector to be used
together with Audio L/R connectors for
camcorder, game console, etc.
