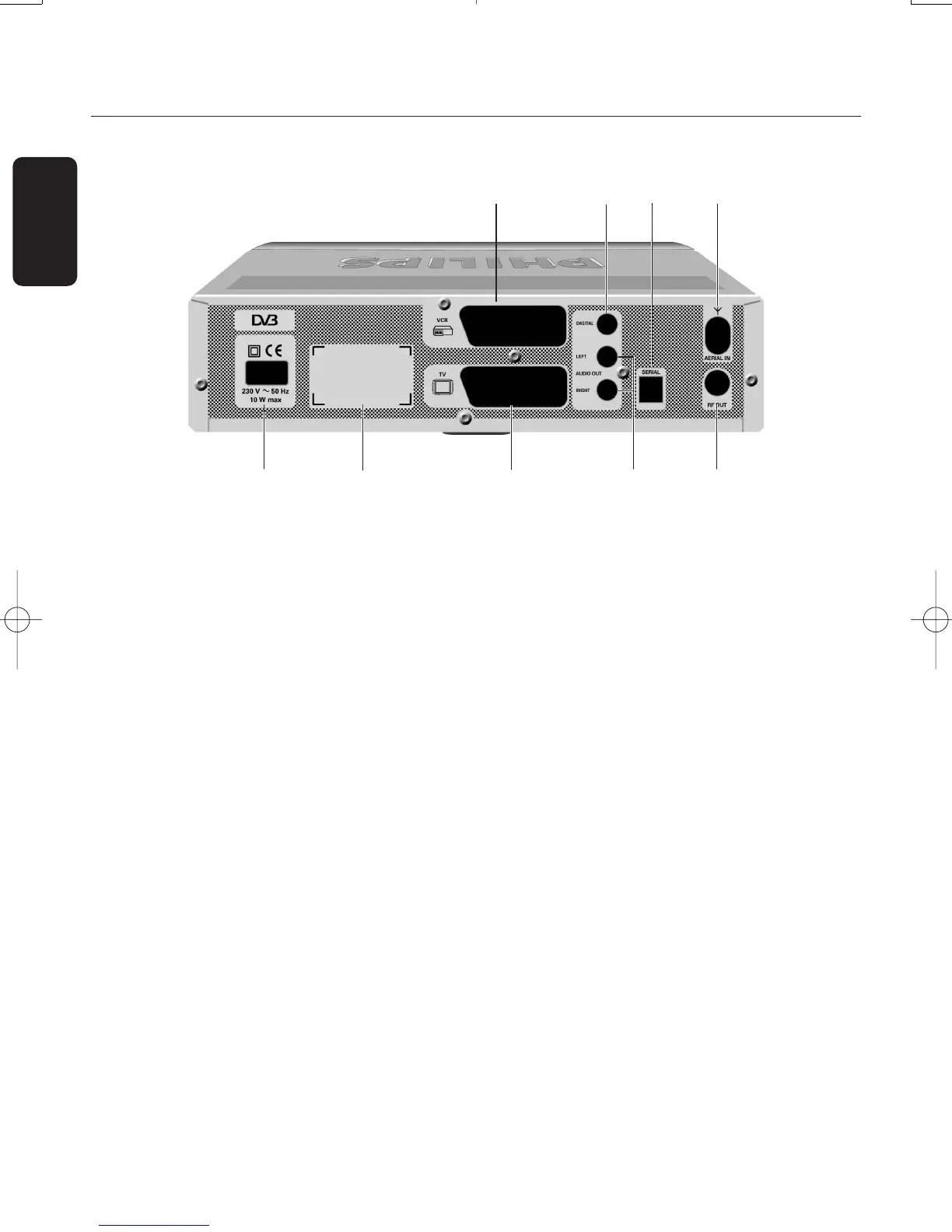

3.2 Rear view
1 VCR (*) . . . . . . . . . . . . . . . . . . . . . . . . . . SCART (1) socket to connect your video recorder
or DVD player/recorder
2 Digital audio output (*)
. . . . . . . . Coaxial Digital audio output to connect your HIFI /
Audio receiver system
3 Serial (*)
. . . . . . . . . . . . . . . . . . . . . . . . . RJ 9 socket for serial data transfer during servicing
4 AERIAL IN (*)
. . . . . . . . . . . . . . . . . . . Input to connect your UHF aerial
5 230V~50Hz 10W max (**)
. . . Socket to connect the Mains cord
6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Label showing the type and serial number of the receiver
7 TV (*)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . SCART (1) socket to connect to your TV set or a video
projector (2)
8 L/R Audio out (*)
. . . . . . . . . . . . . . . Left/Right audio outputs to connect your HIFI /
Audio receiver system
9 RF out (*)
. . . . . . . . . . . . . . . . . . . . . . . . RF output to be connected to the aerial input of your video
recorder or TV set. Refer to chapter 5 for recommended
connection diagrams.
(1) SCART is also called Euroconnector or Peritel.
(2) To connect a video projector to the TV SCART socket, refer to chapter 5.4.
* Safety Extra Low Voltage (SELV)
** Hazardous Voltage (HV)
