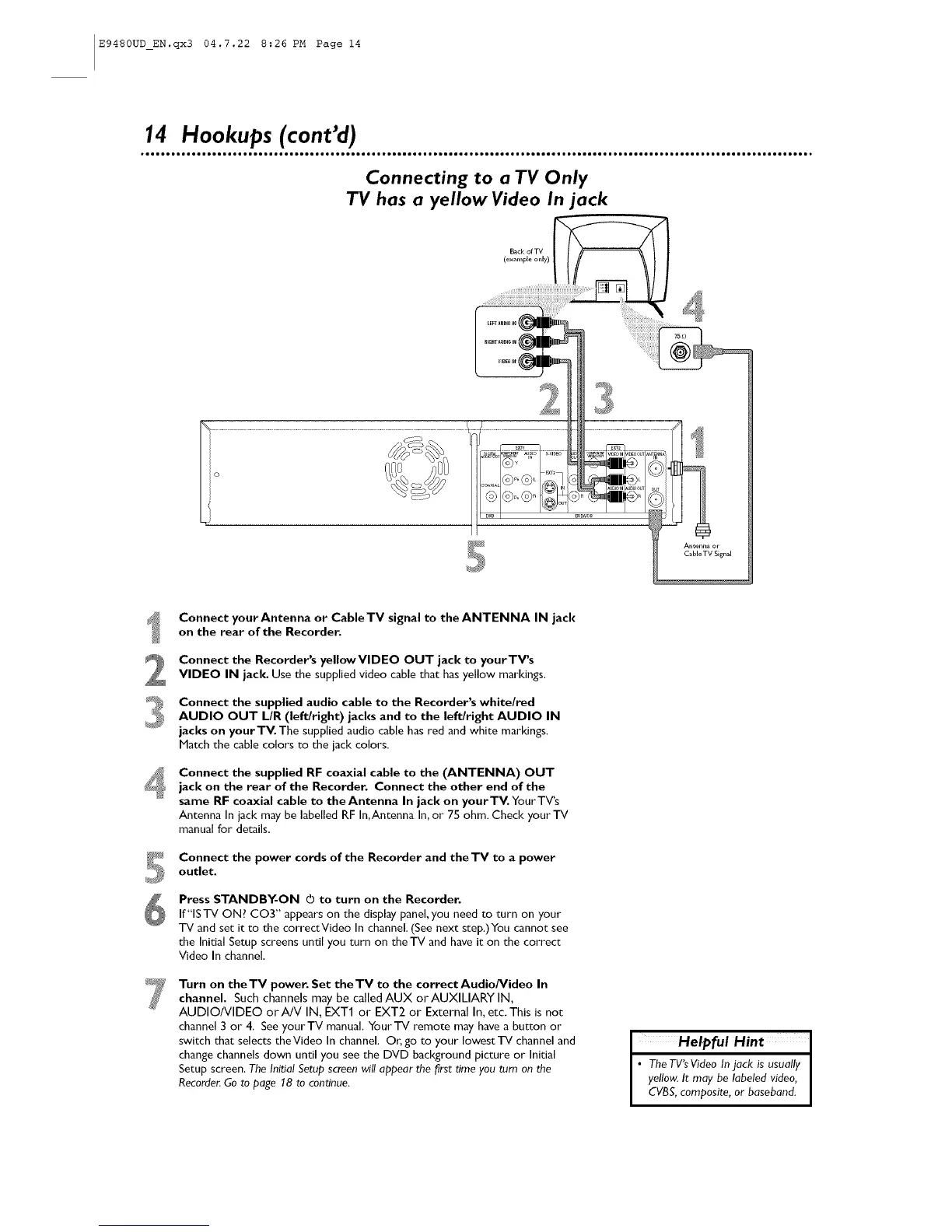

14 Hookups (cont'd)
Connecting to a TV Only
TV has a yellow Video In jack
2
3
4
Connect yourAntenna or CableTV signal to the ANTENNA IN jack
on the rear of the Recorder.
Connect the Recorder's yellowVlDEO OUT jack to yourTV's
VIDEO IN jack. Use the supplied video cable that hasyellow markings.
Connect the supplied audio cable to the Recorder's white/red
AUDIO OUT LIR (left/right) jacks and to the left/right AUDIO IN
jacks on yourTV. The supplied audio cable has red and white markings.
Match the cable colors to the jack colors.
Connect the supplied RF coaxial cable to the (ANTENNA) OUT
jack on the rear of the Recorder, Connect the other end of the
same RF coaxial cable to the Antenna In jack on yourTV. Your TV's
Antenna In jack may be labelled RF In,Antenna In,or 75 ohm. Check your TV
manual for details,
Connect the power cords of the Recorder and the TV to a power
outlet.
Press STANDBY-ON O to turn on the Recorder,
If"ISTV ON? CO3" appears on the display panel, you need to turn on your
TV and set it to the correctVideo In channel. (See next step.)You cannot see
the Initial Setup screens until you turn on theTV and have it on the correct
Video In channel.
Turn on theTV power. Set theTV to the correct Audio/Video In
channel, Such channels may be called AUX or AUXILIARY IN,
AUDIO/VIDEO orA/V IN, EXT1 or EXT2 or External In, etc. This is not
channel 3 or 4, See yourTV manual, YourTV remote may have a button or
switch that selects the Video In channel. O_;go to your lowest TV channel and
change channels down until you see the DVD background picture or Initial
Setup screen, The Initial Setup screen will appear the first time you turn on the
RecordenGo to page 18 to contJnue.
I Helpful Hint
• TheTV'sVideoInjack is usually
yellow.It maybe labeledvideo,
CVBS,composite,or baseband.
