E9480UD_EN.qx3 04.7.22 8:26 PM Page 15
Hookups (cont'd) 15

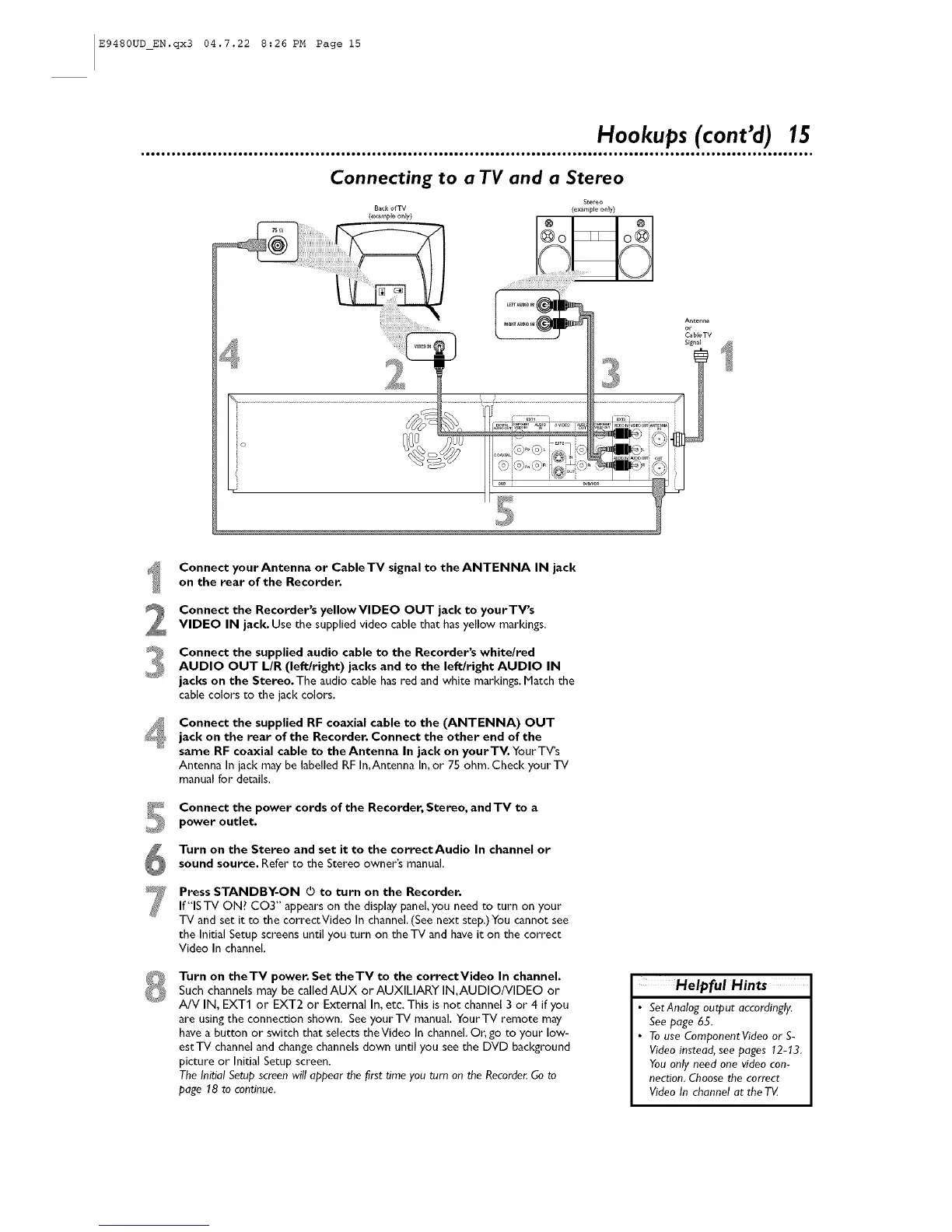

Connecting to a TV and a Stereo
Back of TV
Stereo
(e_mple only)
Connect your Antenna or Cable TV signal to the ANTENNA IN jack
on the rear of the Recorder.
Connect the Recorder's yellowVlDEO OUT jack to yourTV's
VIDEO IN jack. Use the supplied video cable that has yellow markings.
Connect the supplied audio cable to the Recorder's white/redAUDIO OUT L/R (leftlright) jacks and to the left/right AUDIO IN
jacks on the Stereo. The audio cable has red and white markings, Match the
cable colors to the jack colors,
4
Connect the supplied RF coaxial cable to the (ANTENNA) OUT
jack on the rear of the Recorder. Connect the other end of the
same RF coaxial cable to the Antenna In jack on yourTV. Your TV's
Antenna In jack may be labelled RF In,Antenna In,or 75 ohm. Check your TV
manual for derails.
Connect the power cords of the Recorder, Stereo, and TV to a
power outlet.
Turn on the Stereo and set it to the correct Audio In channel or
sound source, Refer to the Stereo owner's manual.
Press STANDBY-ON © to turn on the Recorder.
If"IS TV ON? CO3" appears on the display panel, you need to turn on your
TV and set it to the correctVideo In channel, (See next step.) You cannot see
the Initial Setup screens until you turn on theTV and have it on the correct
Video In channel,
Turn on theTV power. Set theTV to the correctVideo In channel.
Such channels may be called AUX or AUXILIARY IN,AUDIO/VIDEO or
A/V IN, EXT1 or EXT2 or External In, etc, This is not channel 3 or 4 if you
are using the connection shown. See your TV manual, YourTV remote may
have a button or switch that selects theVideo In channel. O_,go to your Iow-
estTV channel and change channels down until you see the DVD background
picture or Initial Setup screen.
The Initial Setup screen will appear the first tJmeyou turn on the Recordel:Go to
page 18 to continue.
Helpful Hints
Set Analog output accordingly.
See page 65.
To use Cemponent Video or S-
Video instead, see pages 12-13.
Youonly need one video con-
nection. Choose the correct
Video In channel at the TV
