Startup and functions
7278_en_04 PHOENIX CONTACT 2-7
2.1.3.2 Assigning IP parameters

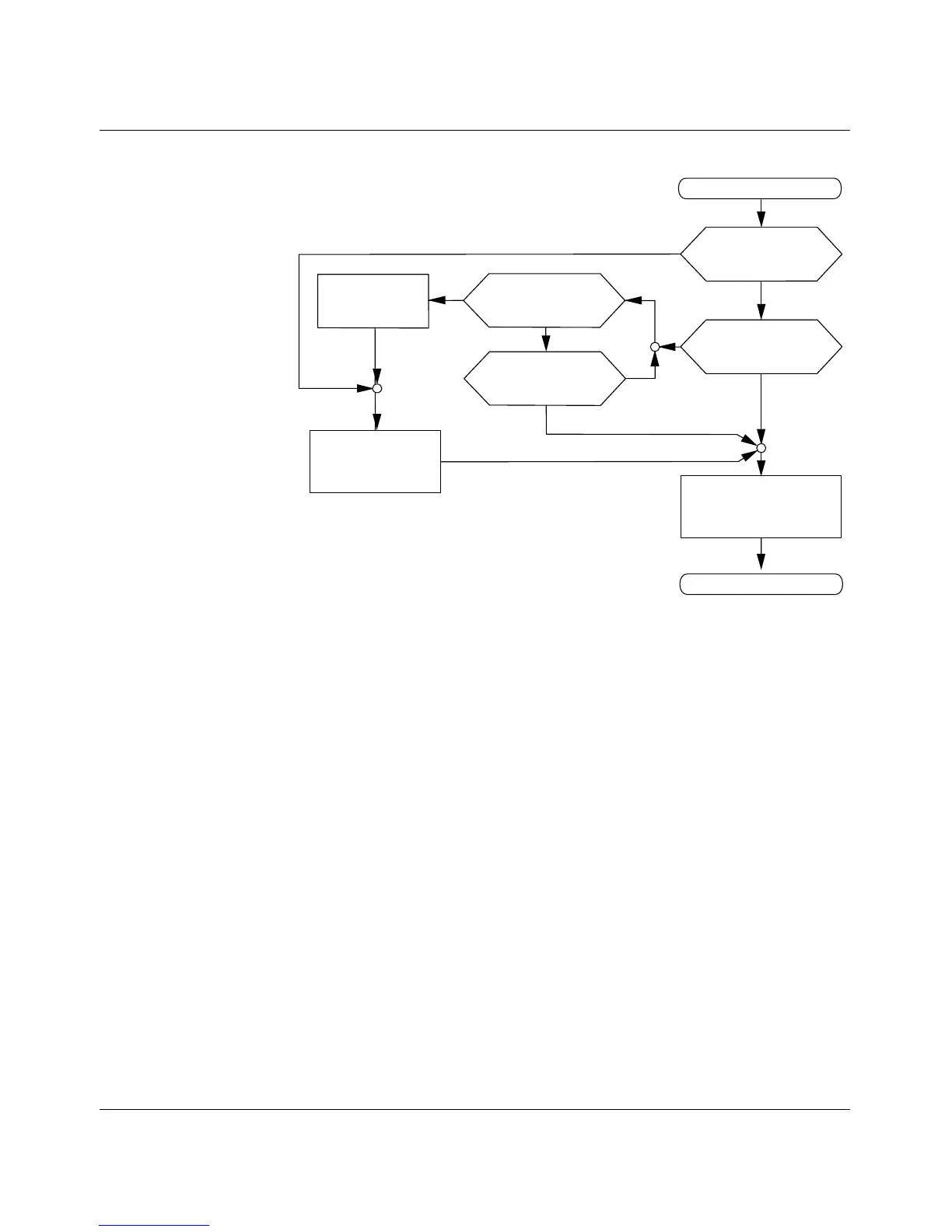

Figure 2-4 Flowchart: Assigning IP parameters
Startup
72780013
Assignment of
IP parameters via
V.24 (RS-232)?
Startup completed
No
Assignment of
IP parameters
via BootP?
Ye s
No
No
Start with local
configuration data, as
long as valid data
is available
IP parameters
received from
BootP server
Entry of
IP parameters as
local configuration
Ye s
No
Three requests
remain
unanswered?
Ye s
Ye s
Is there a valid
local IP address?
No
