3.3.5 Private MIBs
The private MIBs for the LMS from Phoenix Contact can be found under object
ID 1.3.6.1.4.1.4346. The LMS MIB contains the following groups:
– pxcModules (OID = 1.3.6.1.4.1.4346.1)
– pxcGlobal (OID = 1.3.6.1.4.1.4346.2)
– pxcFactoryLine (OID = 1.3.6.1.4.1.4346.11)
MIB tree
The private MIB from Phoenix Contact is integrated in the MIB tree as follows (see red
arrow).

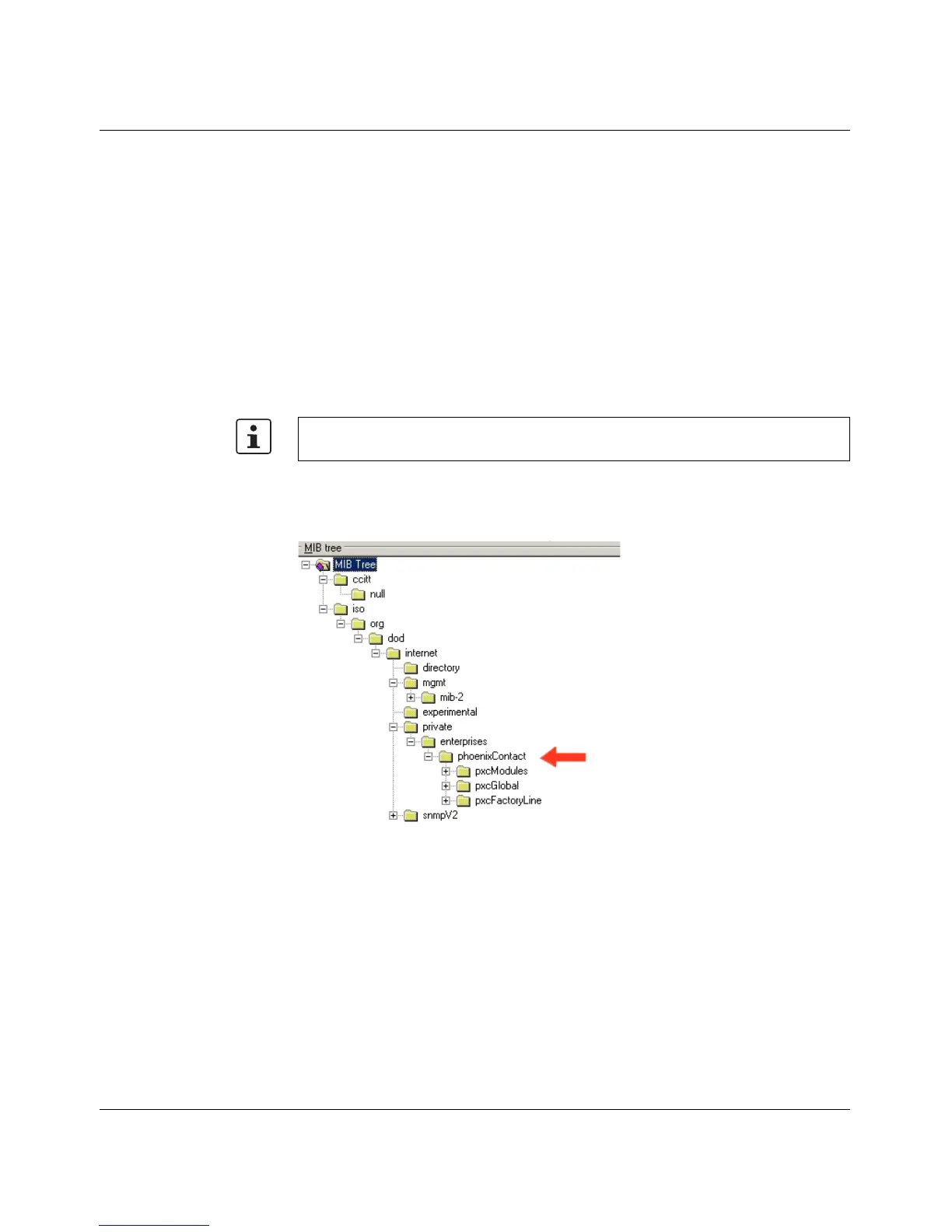

Figure 3-27 MIB tree
3.3.5.1 pxcModules OID = 1.3.6.1.4.1.4346.1
flMSwitchMModule
OID 1.3.6.1.4.1.4346.1.8
The object contains information about the manufacturer (address, phone number, etc.).
3.3.5.2 pxcGlobal OID = 1.3.6.1.4.1.4346.2
pxcBasic
OID 1.3.6.1.4.1.4346.2.1
-- (1) dot1dTpPort
-- (2) dot1dTpPortMaxInfo
-- (3) dot1dTpPortInFrames
-- (4) dot1dTpPortOutFrames
-- (5) dot1dTpPortInDiscards
All configuration modifications, which are to take effect after an LMS restart, must be
saved permanently using the "flWorkFWCtrlConfSave" object.
