Rapid Spanning Tree
7278_en_04 PHOENIX CONTACT 4-5
RSTP Port Table

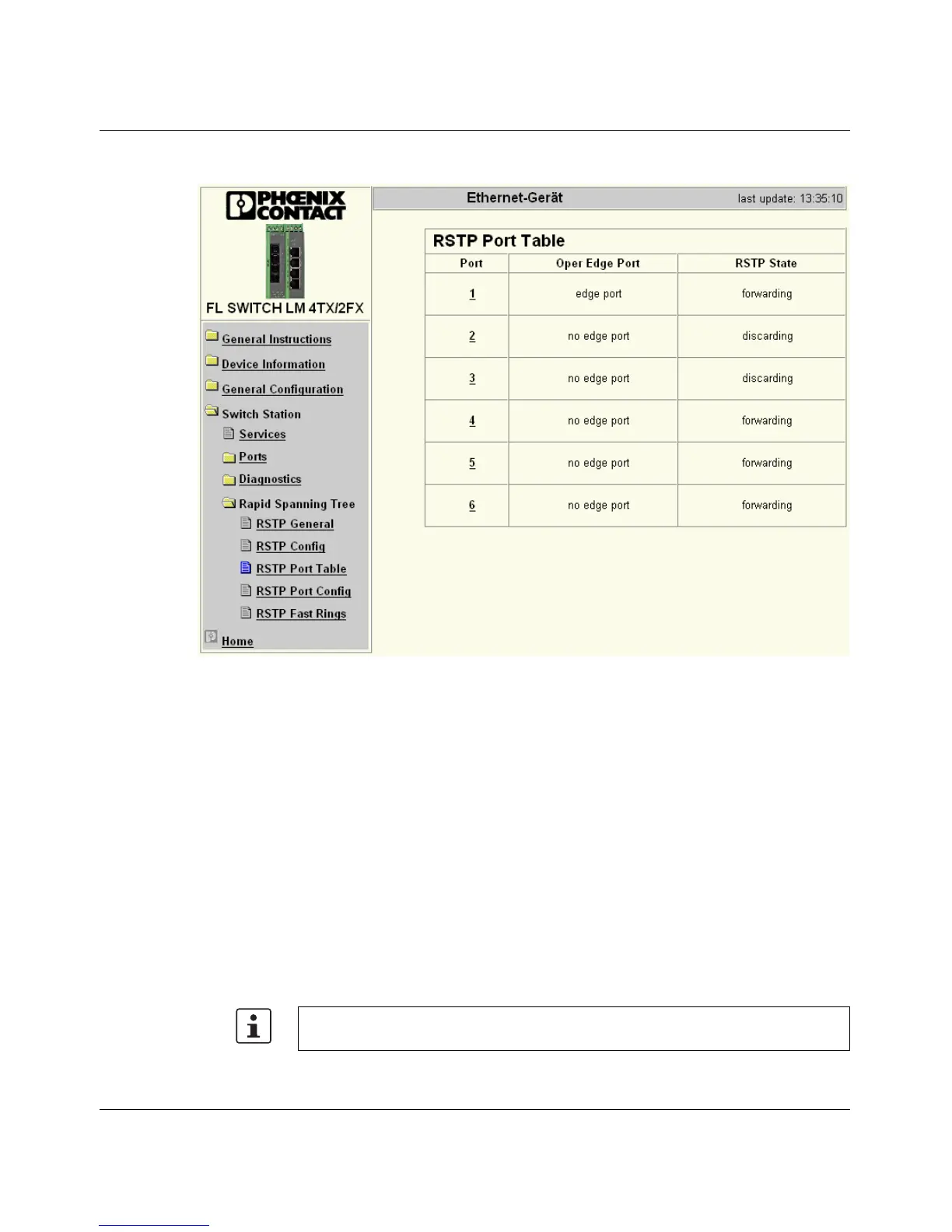

Figure 4-5 "RSTP Port Table" web page
Oper Edge Port
All ports that do not receive any RSTP BPDUs become edge ports, i.e., ports that switch to
the "Forwarding" state immediately after restart.
RSTP State
Indicates the current RSTP state of the relevant port.
Possible states:
–"Forwarding"
The port is integrated in the active topology and forwards data.
–"Discarding"
The port does not take part in data transmission.
–"Learning"
The port does not take part in data transmission of the active topology, however, MAC
addresses are learned.
4.2.1.2 RSTP Port Configuration
Modifications of properties can result in complete reconfiguration of Rapid Spanning Tree.
