15
5277A
Bus Errors E1 - E9
Generally, the display indicates the segment and location of
the error in the case of a remote bus error.
However, this does not include bus errors which begin with an
E. For these errors, it was not possible to clearly define the er-
ror location or area.
The bus errors are represented by the error codes E1 - E9.
The codes E3 and E5 are reserved and not actively used.
In the case of bus errors of this kind, the bus stops and the
outputs are reset in the LOOK FOR FAIL state. The following
display can be read:
- Line 1 - Error type (BUS)
- Line 2 - Relevant error type, e.g. E1
- The background color changes to red.

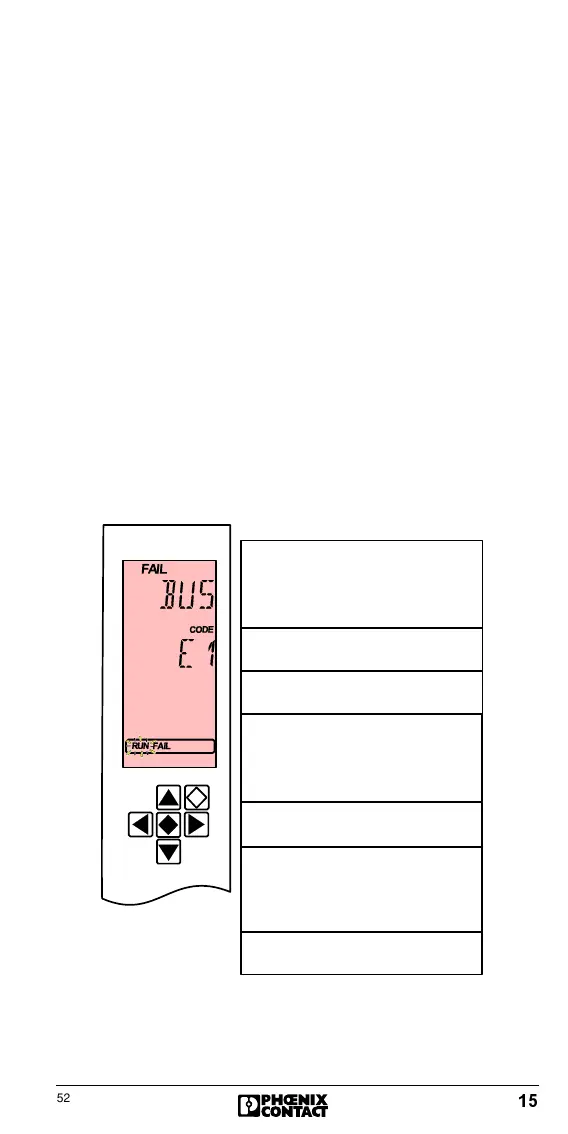

Figure 14: Message of bus errors (E1 - E9)
E1
E2
E4
E6
No error was found when the
configuration was acquired and
compared after the error occurred.
- Power supply/shielding/grounding
The maximum permissible configu-
ration was exceeded.
The configuration could not be
acquired (- power supply -).
No error was found when the con-
figuration was acquired and com-
pared, but no data cycle is possible.
- Power supply/shielding/grounding
E7
INTERBUS
The configuration could not be
acquired during startup.
E8
The configuration could not be
acquired during startup of diagnostic
cycles.
The additional diagnostic phase was
interrrupted due to errors.
5241A012
Change of configuration during
active diagnostics.
E9
