Structure of the Display

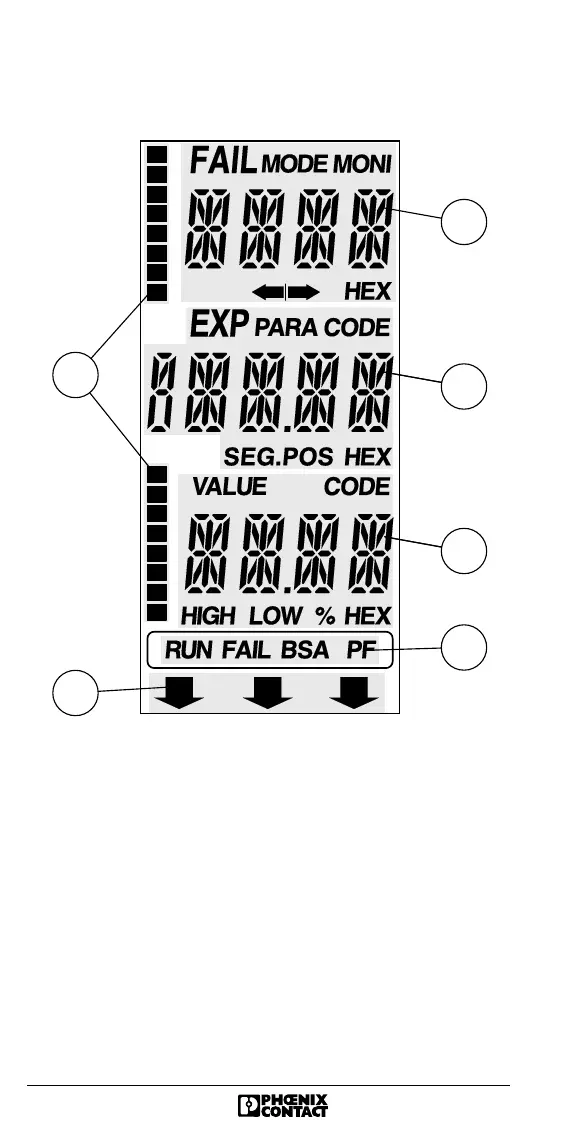

Figure 6: Display segments and lines
Line 1
Main line:
Four alphanumeric positions for variable displays.
FAIL
Is always active if an error has occurred. In the first main line,
the type of error is indicated during standard operation.
- CTRL: Controller error
- RBUS: Remote bus error
- LBUS: Local bus error
- BUS: General bus error
5241A005
5
6
1
2
3
4
1
