41
5277A
To cause the display of data, select the desired address area,
e.g. P IN or P OUT, and confirm with ENTER. The second
line flashes the address.
If you press the arrow key longer than 0.8 seconds, the dis-
play starts to scroll:
- first, every 0.5 seconds in steps of two.
- if you keep pressing key and the display reaches an ad-
dress divisible by ten, the display scrolls in steps of ten.
After selecting the area, the most recent address is flashing.
The Left Arrow and Right Arrow keys allow to select the ad-
dresses, the valid area ranges from 0 to 254.
The third line displays the contents of the address as hex
number. The corresponding VALUE element is switched on.
On the left side of the display, the value is represented in bi-
nary form (see Figure 29).

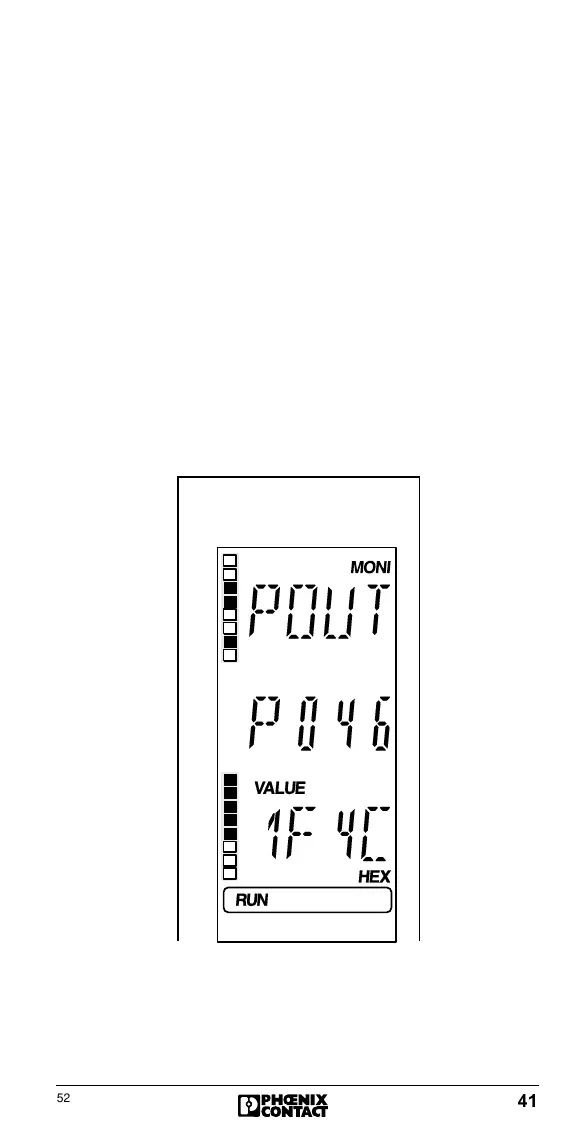

Figure 29: Example of the display of process data
5241A024
INTERBUS
