PIAGGIO Beverly Tourer 300 i.e. - Page 98

FUSES
Specification Desc./Quantity
1 Fuse No. 1 Capacity:30 A
Protected circuits:Battery recharge circuit.
Live:Fuses No.7-8-9-10.
2 Fuse No. 2 Capacity:5A
Protected circuits:Clock, Immobilizer.
3 Fuse No. 3 Capacity:15A
Protected circuits:Plug socket, helmet compartment
light switch, electric fan (with remote control), pre-instal-
lation for anti-theft device.
Live:Saddle opening actuator.
4 Fuse No. 4 Capacity:10 A
Protected circuits:Injection load (via remote control).
5 Fuse No. 5 Capacity:15A
Protected circuits:Light switch (via remote control)
6 Fuse No. 6 Capacity:7.5 A
Protected circuits:Injection ECU.
7 Fuse No. 7 Capacity:7.5 A
Protected circuits:Headlight remote control, stop
lights, starter circuit.
8 Fuse No. 8 Capacity:7.5 A
Protected circuits:Side lights, license plate light, instru-
ment panel lighting, horn.
9 Fuse No. 9 Capacity:7.5 A
Protected circuits:Electric fan remote control, injection
load remote control, Immobilizer aerial, injection ECU.
10 Fuse No. 10 Capacity:7.5 A
Protected circuits:Pre-installation for anti-theft device,
turn indicators, instrument panel.

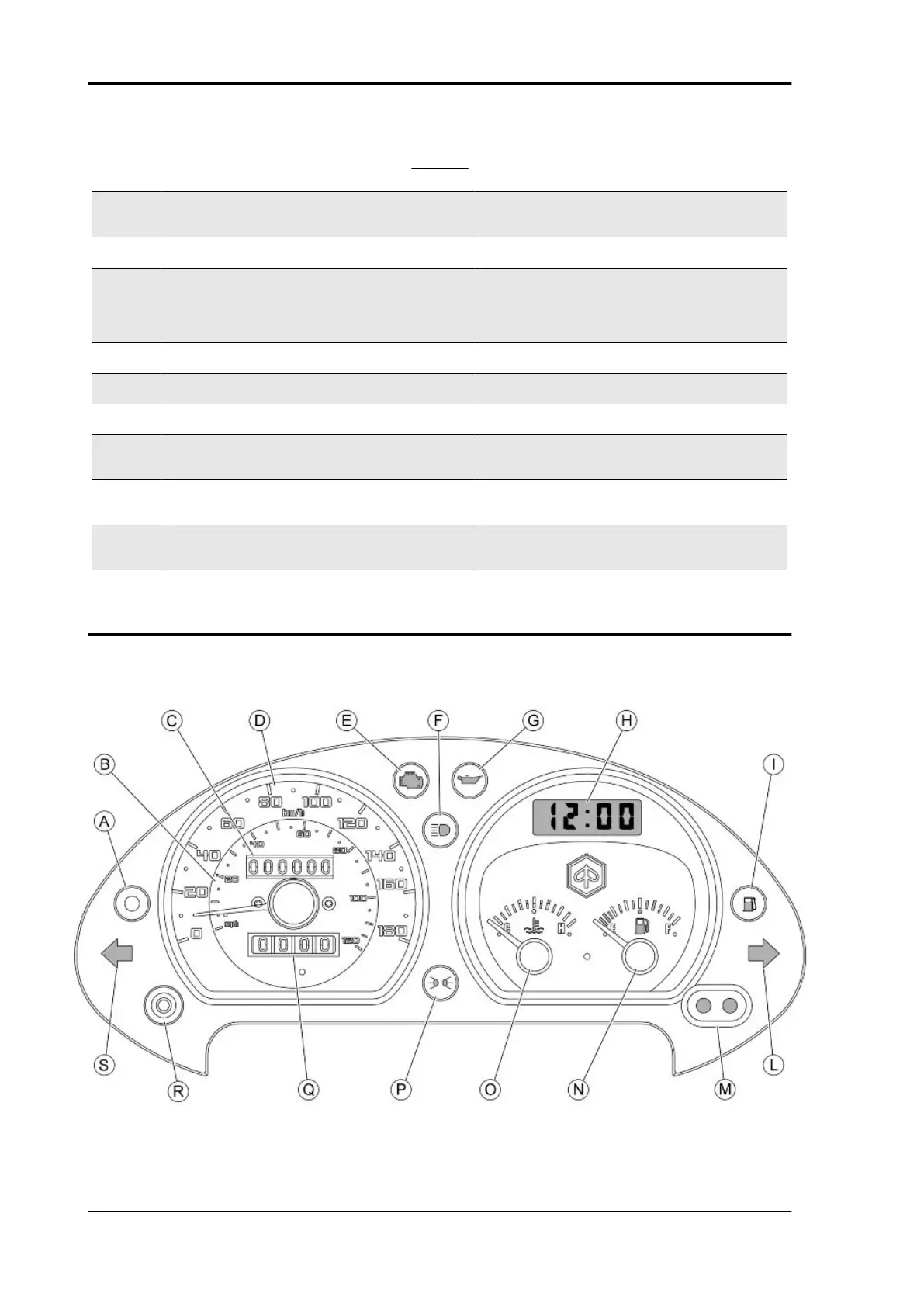

Dashboard
A = Immobilizer LED
B = Speedometer (mph)
Electrical system Beverly Tourer 300 i.e.
