PIAGGIO Beverly Tourer 300 i.e. - Page 97

Specification Desc./Quantity
8 License plate light bulb Type: All glass
Quantity: 1
Power: 12V - 5W
Tail lights and instrument panel lighting line
In the event of a malfunction, check:
- Efficiency of the bulbs
- Fuses No. 1 and 8
- Key switch contacts
- Cable harness continuity
High-beam/low-beam light line
In the event of a malfunction, check:
- Efficiency of the bulbs
- Light switch
- Headlight remote control
- Fuses No. 1, 5 and 7
- Key switch contacts
- Cable harness continuity

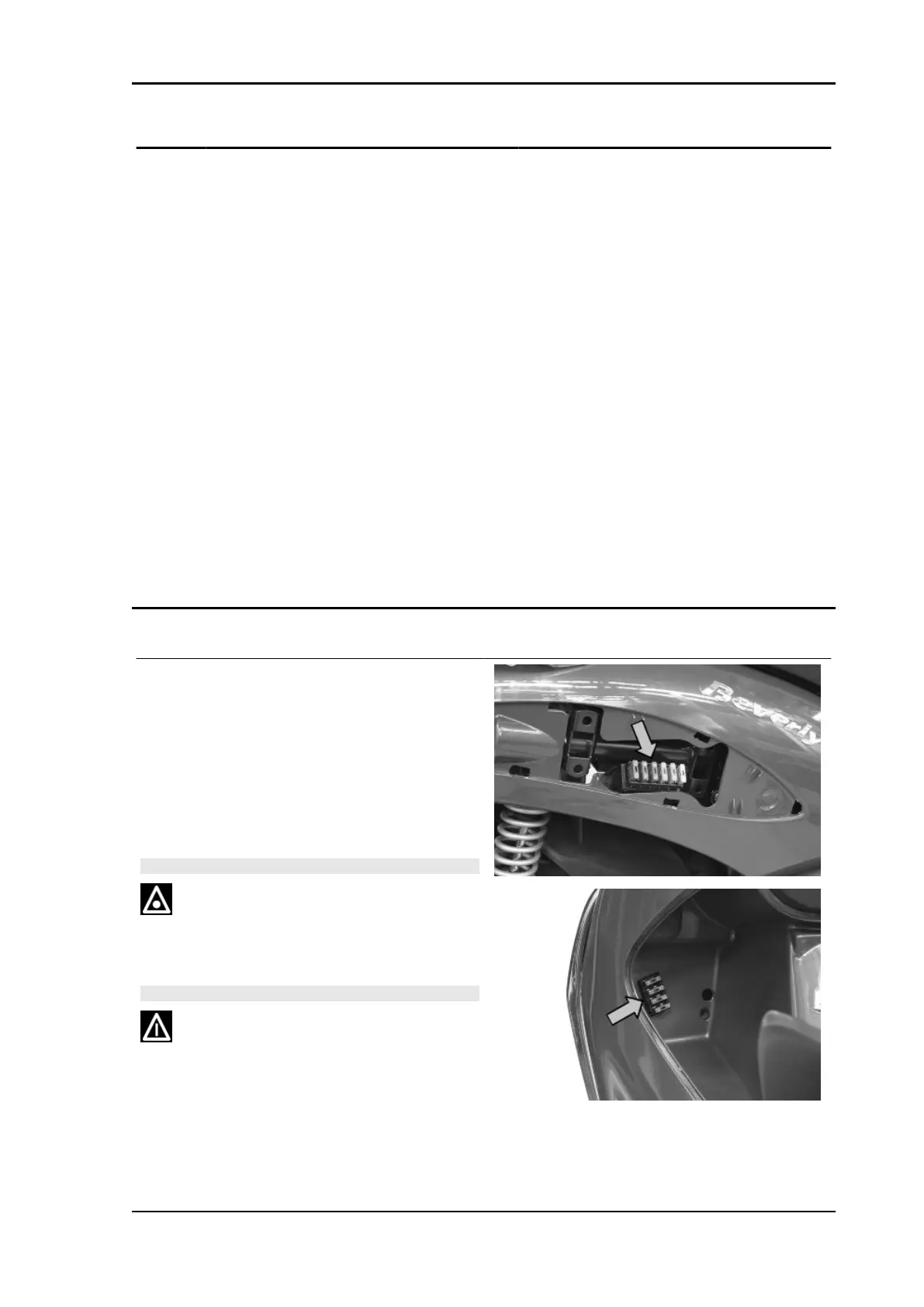

Fuses
The electrical system is equipped with:
1. Six protective fuses «A» located inside the side
panel on the right-hand side;
2. Four protective fuses «B» located inside the
compartment on the upper left-hand side.
The chart shows the position and specifications of
the fuses in the vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE
THE FAILURE THAT CAUSED IT TO BLOW. NEVER TRY
TO REPLACE THE FUSE WITH ANY OTHER MATERIAL
(E.G., A PIECE OF ELECTRIC WIRE).
CAUTION
MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYS-
TEM, PERFORMED INCORRECTLY OR WITHOUT STRICT
ATTENTION TO THE TECHNICAL SPECIFICATIONS OF
THE SYSTEM CAN CAUSE MALFUNCTIONING AND RISK
OF FIRE.
Beverly Tourer 300 i.e. Electrical system
ELE SYS - 97
