7) Check that the Pink and White-Blue cables connecting the bulbs and the turn indicator switches are
not interrupted.
8) Check the bulbs ground connection.
level indicators
WARNING
ALL CONTINUITY TESTS MUST BE CARRIED OUT WITH THE CORRESPONDING CONNECTORS
DISCONNECTED.
If faults are detected:

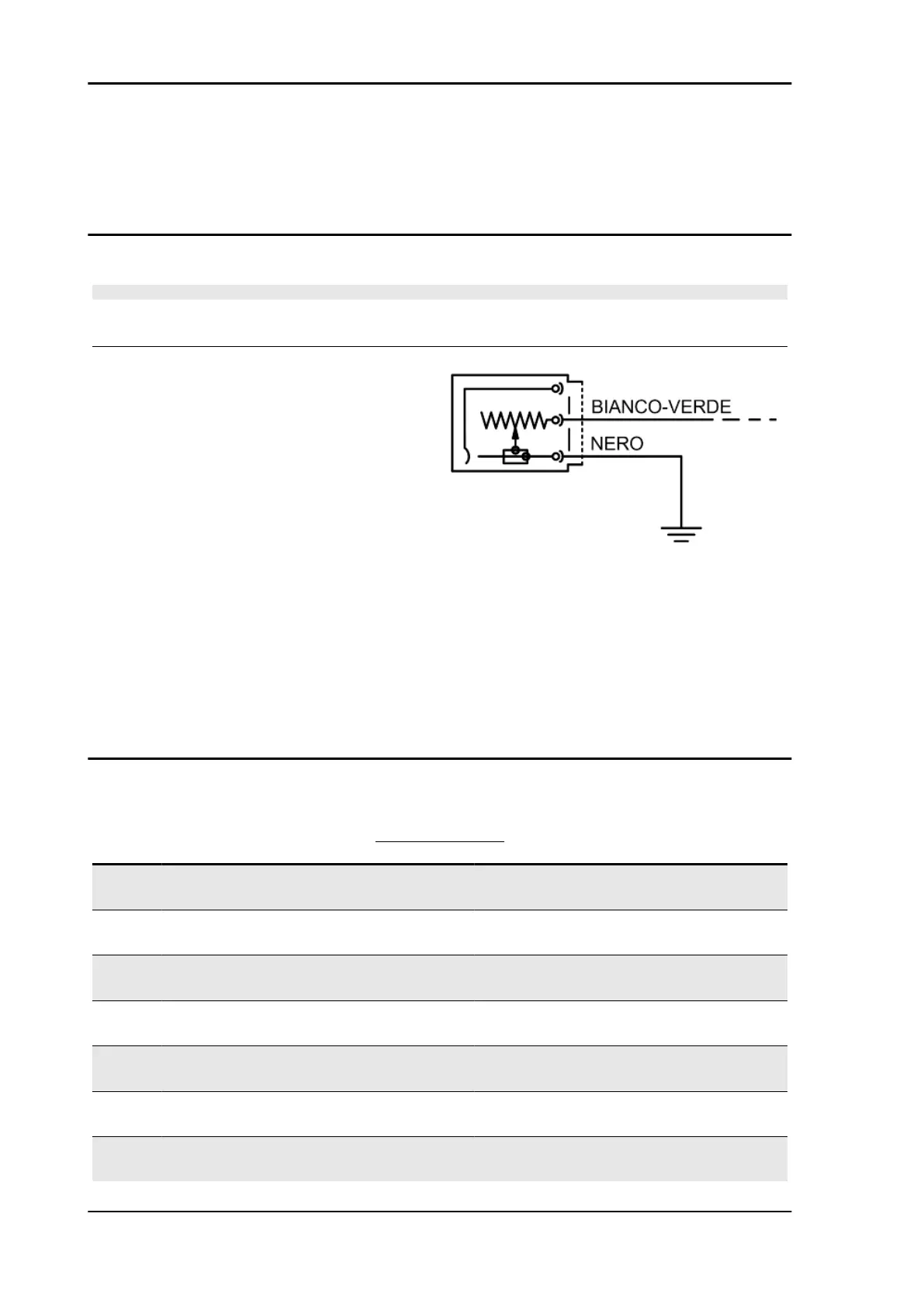

1) With a multimeter, check resistance values be-
tween the White-Green cable and the Black cable
of the fuel level transmitter by moving the arm with
the float.
2) If the transmitter operates correctly but the in-
dication on the instrument panel is not exact,
check that the cable harnesses between them are
not interrupted.
Electric characteristic
Resistance value when the tank is full
<= 7 Ω
Resistance value when the tank is empty
90 +13/-3 Ω
Lights list
LIST OF BULBS
Specification
Desc./Quantity
1 High-/low-beam bulb Type: Halogen (H4)
Quantity: 1
Power: 12V - 55/60W
2 Front tail light bulb Type: All glass
Quantity: 1
Power: 12V - 5W
3 Turn indicator bulbs Type: Spherical
Quantity: 4
Power: 12V - 10W
4 Rear tail light bulb Type: All glass
Quantity: 2
Power: 12V - 3W
5 Stop light bulb Type: Spherical
Quantity: 1
Power: 12V - 10W
6 Instrument panel lighting bulbs Type: All glass
Quantity:5
Power: 12V - 1.2W
7 Helmet compartment light bulb Type: Cylindrical
Quantity: 1
Power: 12V - 5W
Electrical system Beverly Tourer 300 i.e.
ELE SYS - 96
