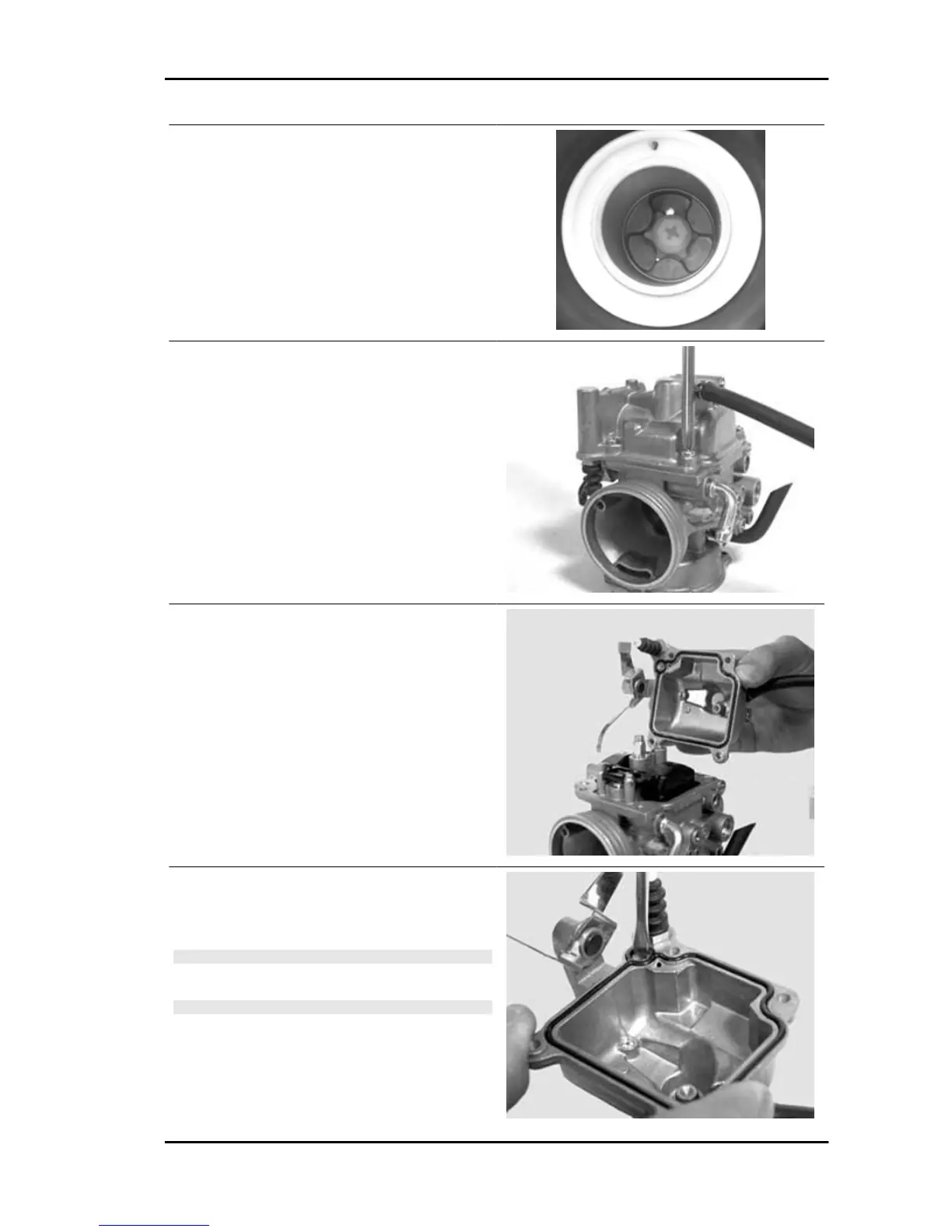

- Unscrew the bayonet joint 1/8 of a turn and re-
move, take out the spring and vacuum valve nee-
dle
- Remove the 4 screws indicated in the figure.
- Remove the chamber with the accelerating
pump, its control and gasket.
- Remove the oil pump seal.
- Remove the intake and outlet valves of the intake
pump from the tank
N.B.
CAUTION, THE ACCELERATION PUMP VALVES ARE
MADE UP OF NOZZLES, SPRING AND BALL.
N.B.
AVOID REMOVING THE PISTON OF THE PUMP AND ITS
CONTROL.
