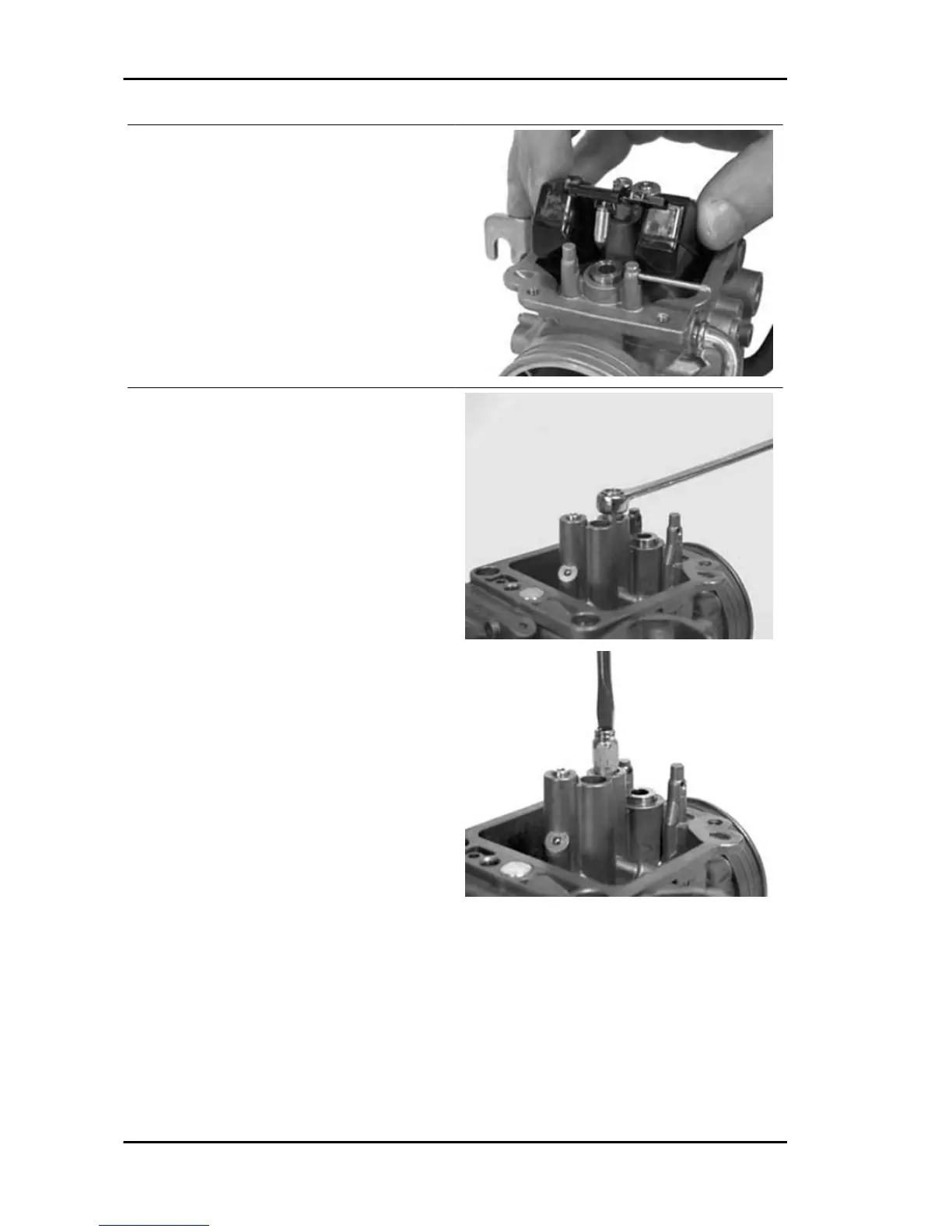

Adequately support the carburettor and using a
rod and hammer remove the float pin acting from
the throttle control side.
- Remove the float and the plunger.
- Remove the maximum nozzle
-Remove the maximum nozzle.
Engine
X9 Evolution 125
ENG - 156
