Installation
OperatingManualPNOZs50
1002194EN02
25
5.2 Mountingdistances
Dependingontheambienttemperature,withcontrolcabinetinstallationitmaybeneces
sarytomaintainacertaindistancefromthetopandbottom,aswellastootherheatprodu
cingdevices(seediagram).
Thevaluesstatedforthemountingdistancesareminimumspecifications.Detailsof
whetheradistanceneedstobemaintainedcanbefoundinthesectionentitled"Supple
mentarydata".
Airconditioningmayotherwiseberequired.

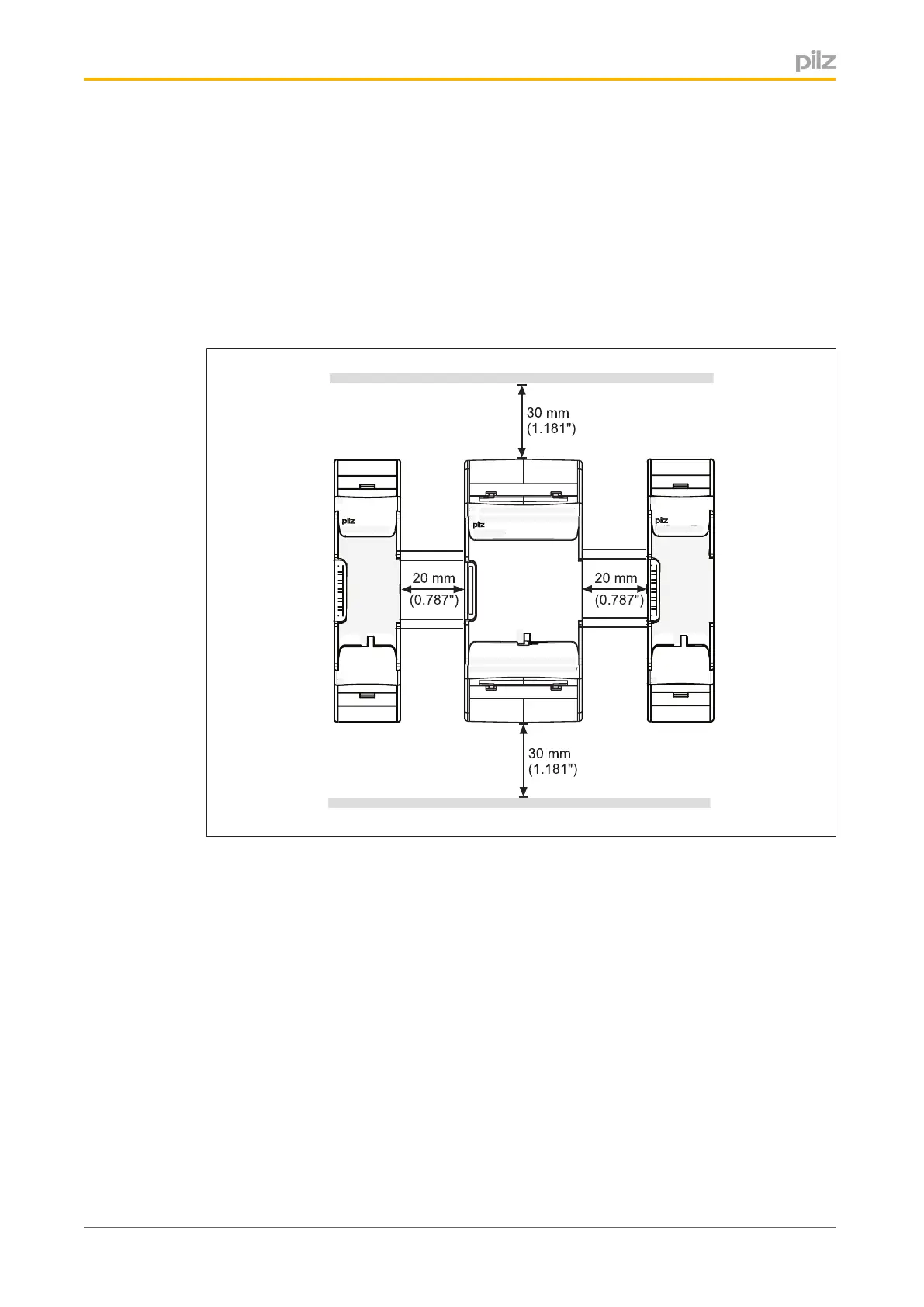

Fig.:MountingdistancesforthePNOZs50
