The term “external unit” refers to future
Pioneer devices that are not currently planned
for, or to devices that allow control of basic
functions although they are not fully con-
trolled by the navigation system. Two external
units can be controlled by this navigation sys-
tem. When two external units are connected,
the navigation system allocates them as exter-
nal unit 1 or external unit 2.
For details of the connection method, refer to
“Installation Manual”.
For details concerning operation, refer to the
external unit’s operation manual. This section
provides information on external unit opera-
tions with the navigation system that differ
from those described in the external unit’s op-
eration manual.
p Operation varies depending on the external
unit connected. (In some cases, the exter-
nal unit may not respond.)

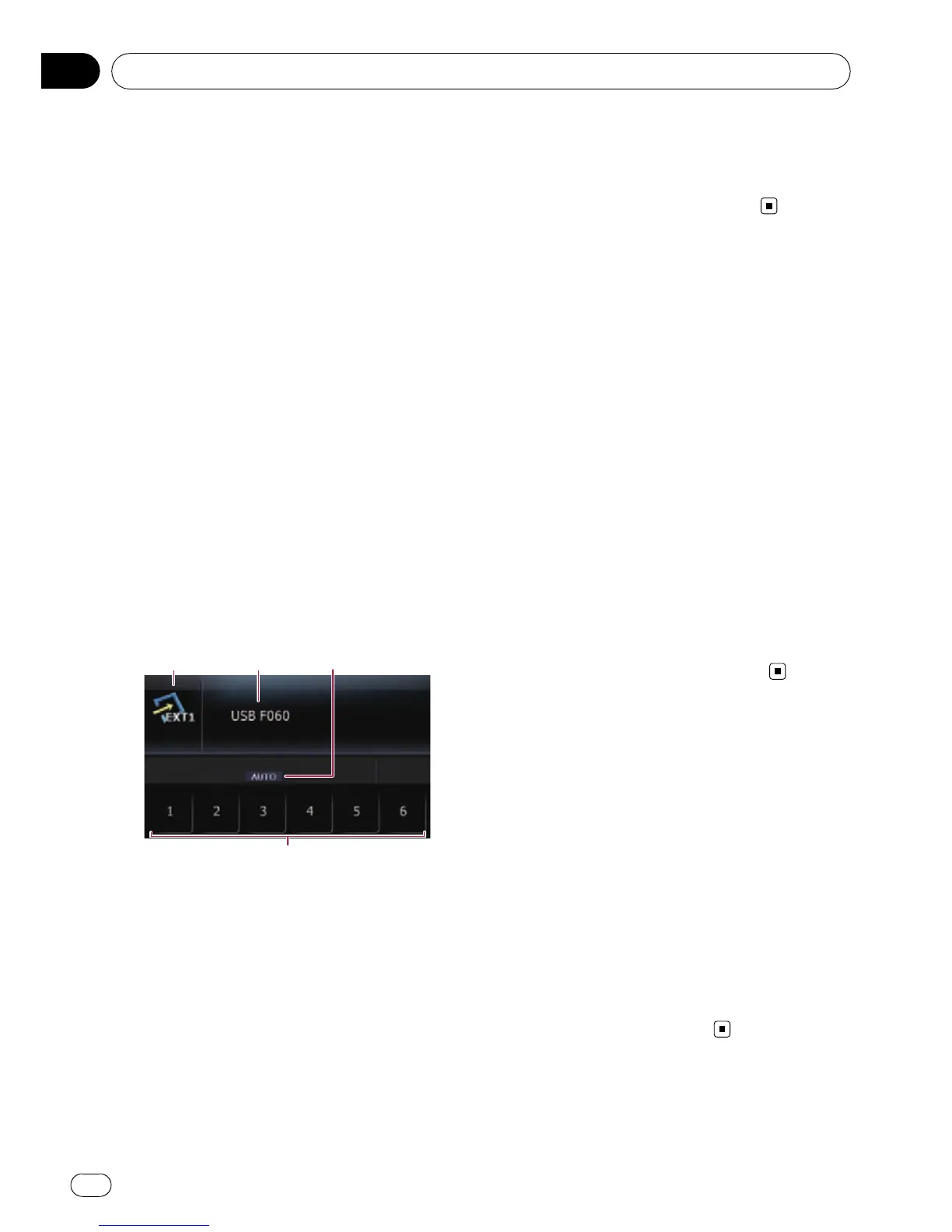

Reading the screen
1 Source icon
Shows which source has been selected.
2 External unit indicator
Displays the information that is sent by con-
nected external units.
3 Auto/Manual mode indicator
Shows the current mode.
4 Touch panel keys
The external unit can be operated by transmit-
ting the operating commands set to 1 key — 6
key.
p Operation varies depending on the ex-
ternal unit connected. (In some cases,
some functions may not be used until
you touch and hold the key.)
Operating by hardware
buttons
Pressing BAND/ESC button
You can send a band command to the external
unit.
p Operation varies depending on the external
unit connected. (In some cases, the exter-
nal unit may not respond.)
Pressing MULTI-CONTROL up, down, left
or right
You can operate the external unit.
p Operation varies depending on the external
unit connected. (In some cases, some func-
tions may not be used until you touch and
hold the key.)
Pressing the center of MULTI-CONTROL
The function select screen appears.
Switching between automatic
and manual function
1 Display the “Function Menu” screen.
= For details, refer to Screen switching over-
view on page 70.
2 Turn MULTI-CONTROL until “Auto/Man-
ual” appears in the display.
3 Pressing the center of MULTI-CONTROL
switches between “Auto” and “Manual”.
p Operating commands set for Auto and
Manual operations vary depending on the
external unit connected.
Using the external unit (EXT1, EXT2)
En
100
