Pioneer PDP-5071PU User Manual

PDP-5071PU
112
1234
1234
C
D
F
A
B
E
4 4 4 4 4 4
2
1
3
3
5 5
8
6
7

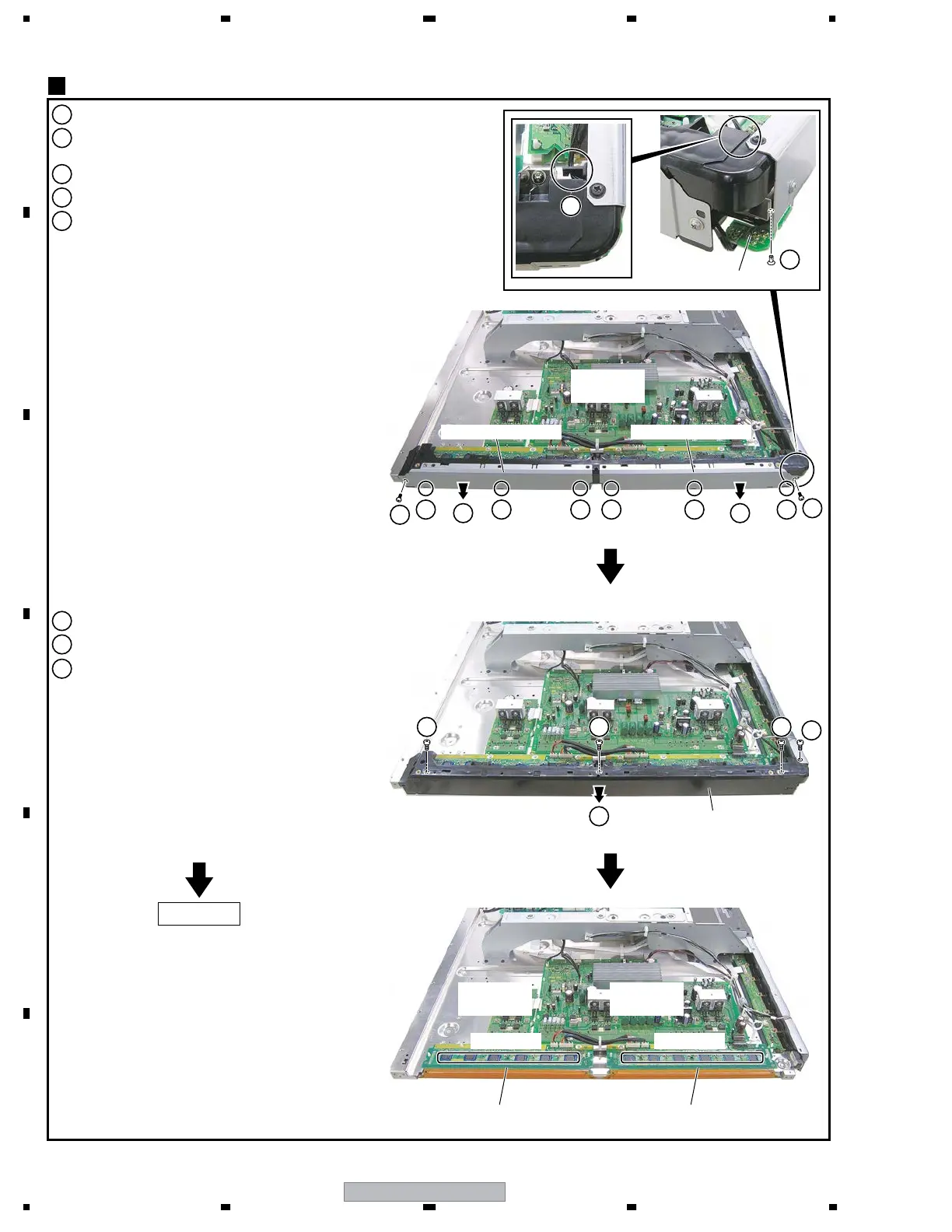

1
Loosen the jumper wire.
2
Remove the LED IR Assy by removing the one
nyron rivet.
3
Remove the two screws.
4
Unhook the six hooks.
5
Remove the panel holders V1 (50) and V2 (50).
6
Remove the one screw.
7
Remove the three screws.
8
Remove the front chassis VL (50).
50 Y MAIN
DRIVE Assy
50 Y MAIN
DRIVE Assy
50 Y SUB
DRIVE Assy
SCAN IC ×6 SCAN IC ×6
50 SCAN B Assy 50 SCAN A Assy
Panel holder V2 (50)
Front chassis VL (50)
Exchange
Exchange of SCAN IC
5
77
LED IR Assy
Panel holder V1 (50)
