Mounting the fuel lines in the cabin
 You are supplied with three fuel lines and quick connect fitting. Two lines are short and
one is long. The long line is the fuel return line which is used later in the process.

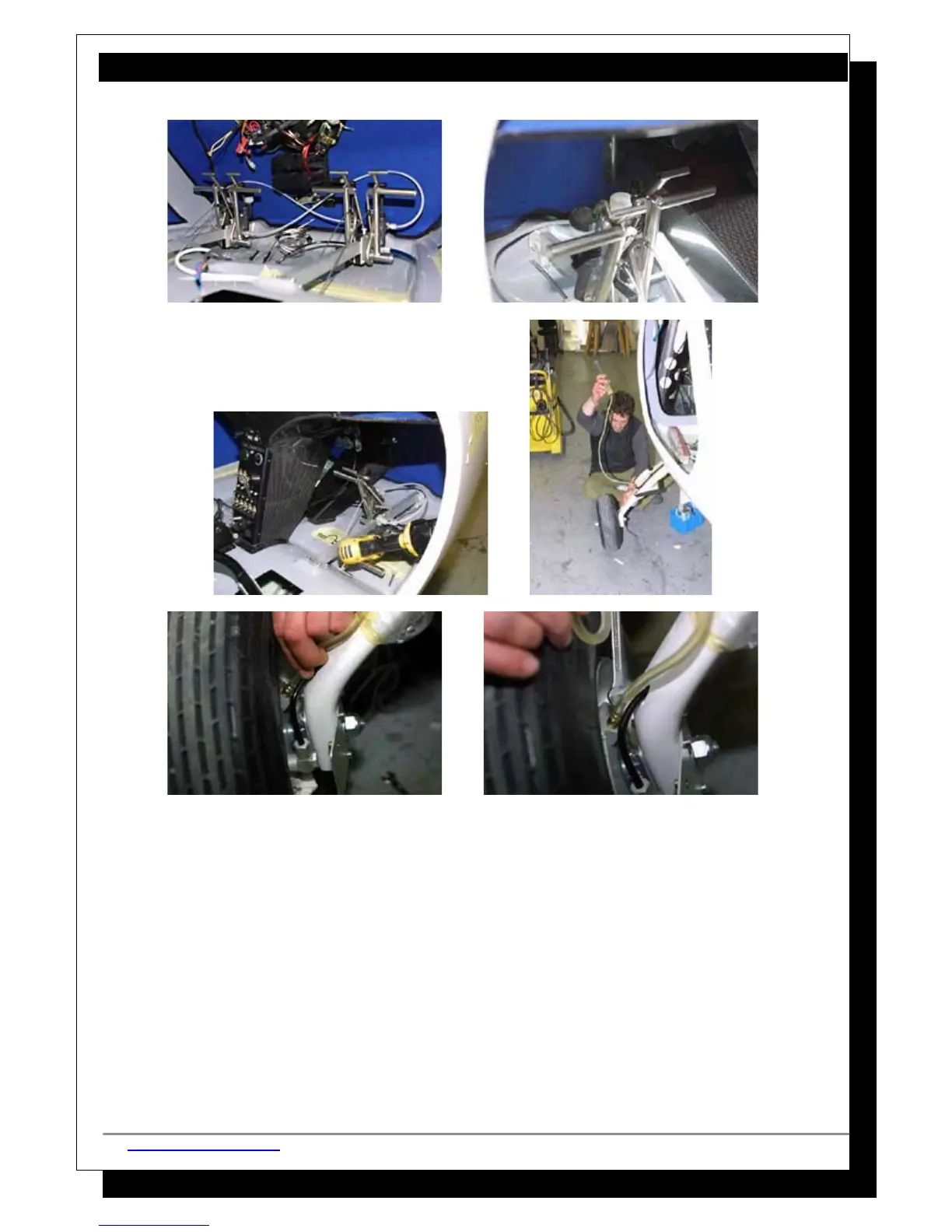

 Install the two shorter lines onto the fuel cocks as shown and secure with the supplied
hose clamps. Position the clamps with the screw fittings close to the wing root to keep
them clear of your hands etc in the cockpit and to eliminate any chance of catching
clothing on them.
