Installation of the strobes
It is easier to mount the strobe box before the chute container is mounted, but it is still possible

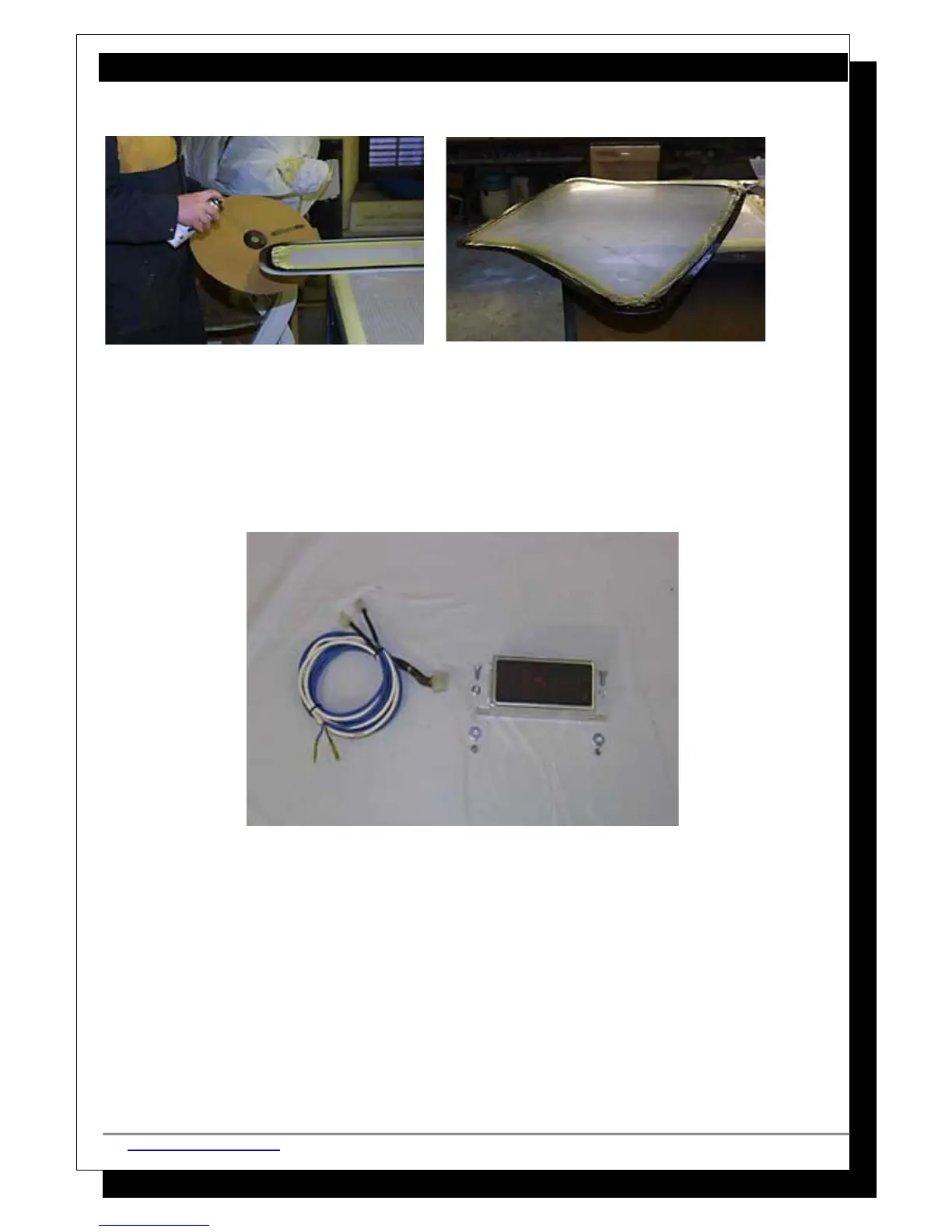

to do it afterwards. The strobe kit looks like the kit shown below, except that the wires are a
different colour and it comes with a white Velcro patch.
 Mount the strobe box on the floor of the fuselage, just behind the cabin bulkhead on the
right hand side (when looking towards the engine from the tail). Fix it into place using the
white Velcro patch supplied. Be sure to position it so that the the side with the fixation
holes is facing starboard and electrical inputs are pointing towards the engine.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 123 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
