Fitting the engine (part 2)

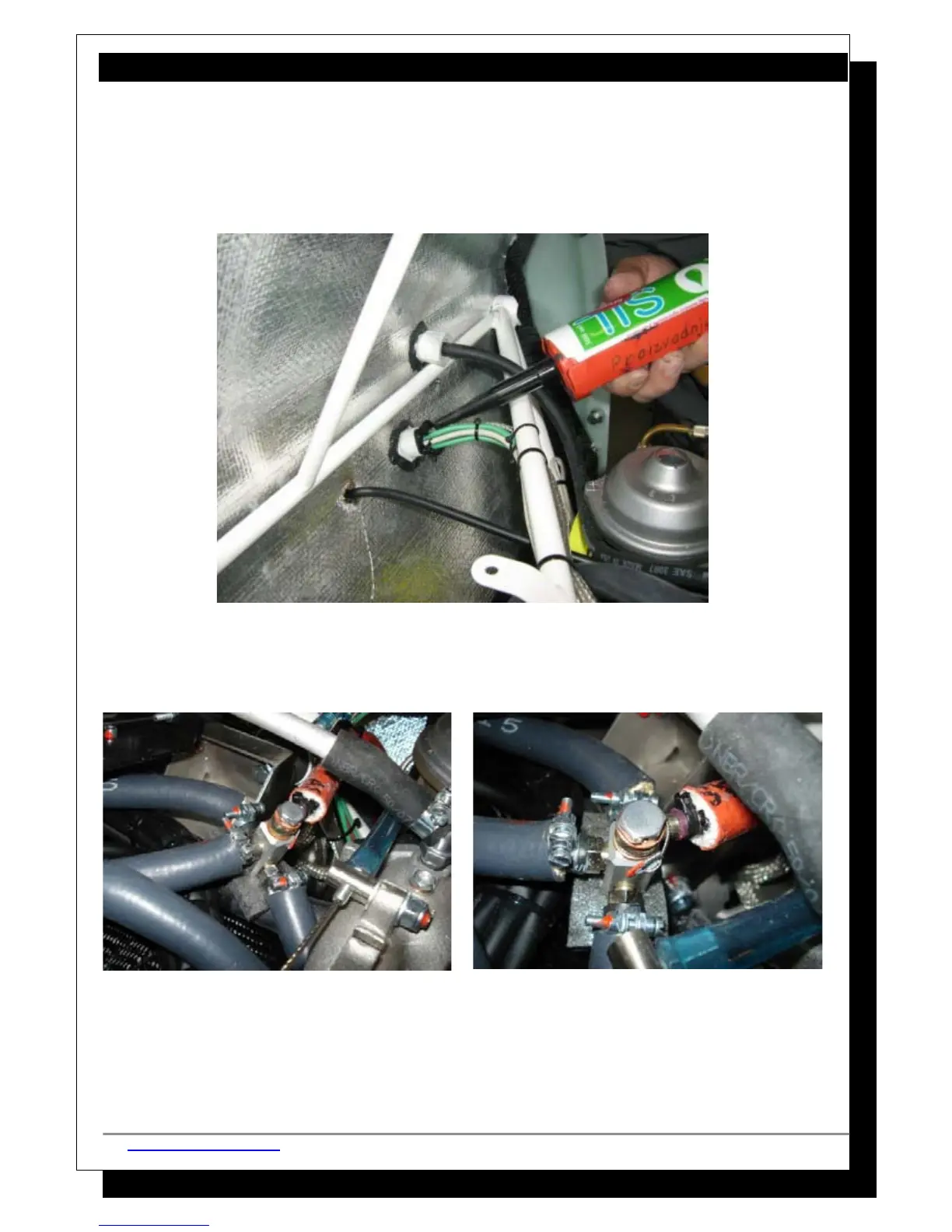

 Feed the two sets of various sensor wiring through the firewall. Be sure to group the
wires with plastic ties and secure them to the firewall feed tubes using black silicon.
 Find the return fuel line, slide some rubber orange insulation over it and feed it from the
firewall to the 4-way fuel distributor.
 Fit the fuel line to the top nozzle with a hose clamp using a hose clamp
 Lockwire the nozzle's bolt head to the 4-way distributor.
 Find the fuel supply line, which is run through the firewall to the T-junction, and connect
it to the fuel supply line to the gascolator. Use hose clamps and protect it with orange
rubber insulation.
 You can now fit the other fuel line, which runs from the fuel pump, to the gascolator. Be
sure to fit it with two hose clamps, one at the end and one on on the existing bracket just
above cylinder head 4. This is the same bracket you mounted to hold the fuel line with
the gas flow sensor.
