Fitting the trim system

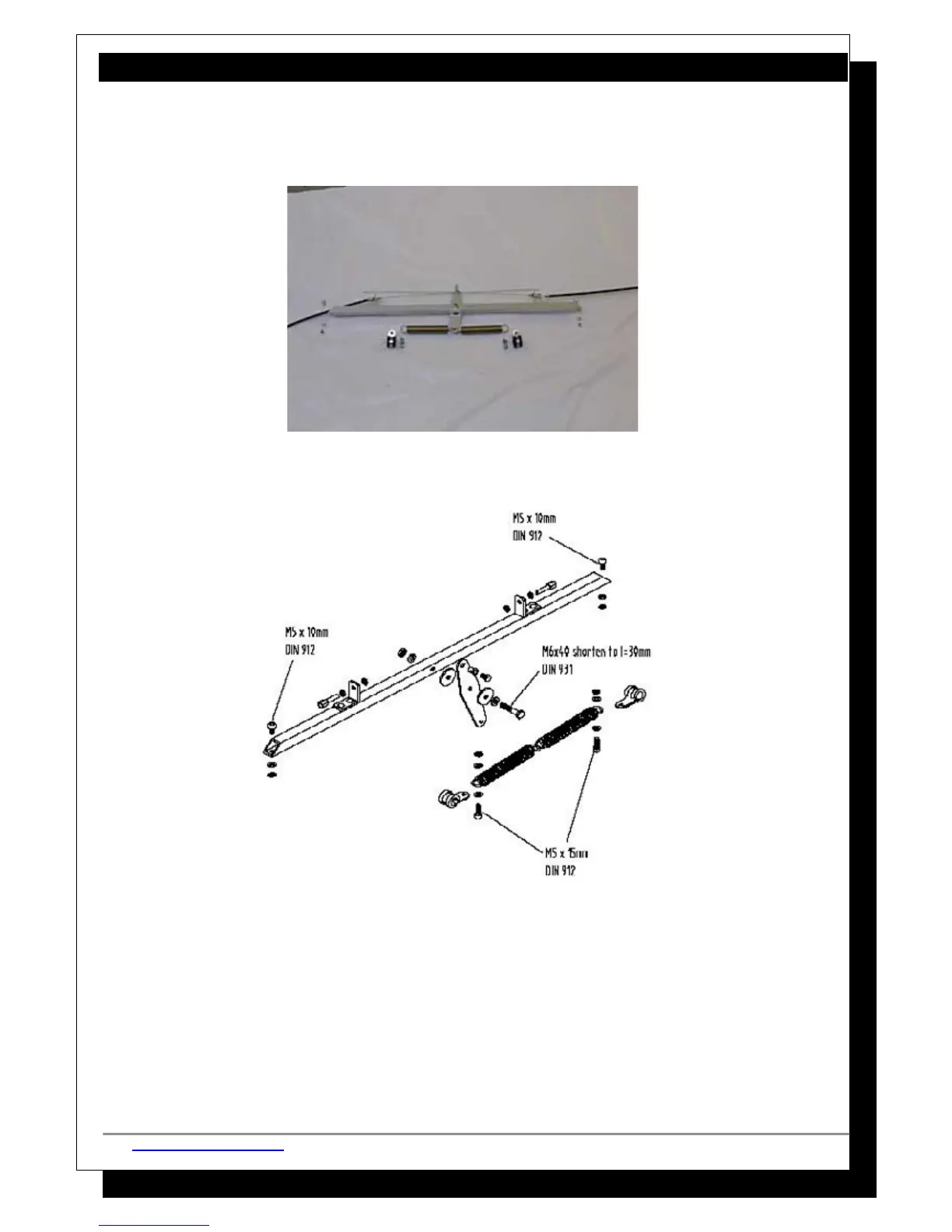

The assembly
 Begin by removing the masking tape covers from the trim adjusting handle in the cockpit.
Make sure the trim handle position is locked in the middle by turning the locking knob.
 Then position the trimmer assembly into the rear of the aircraft. It should sit approx. 1
cm to the right of the push rod (when looking towards the rudder) and on top of the two
bulkheads.
 The link on the trimmer should be mounted on the right hand side to avoid hitting the
pushrod, this is important. Lastly, be sure that the link is mounted appropriately, so that
the end with the bigger hole is facing upwards.
