Pipistrel Sinus User Manual

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

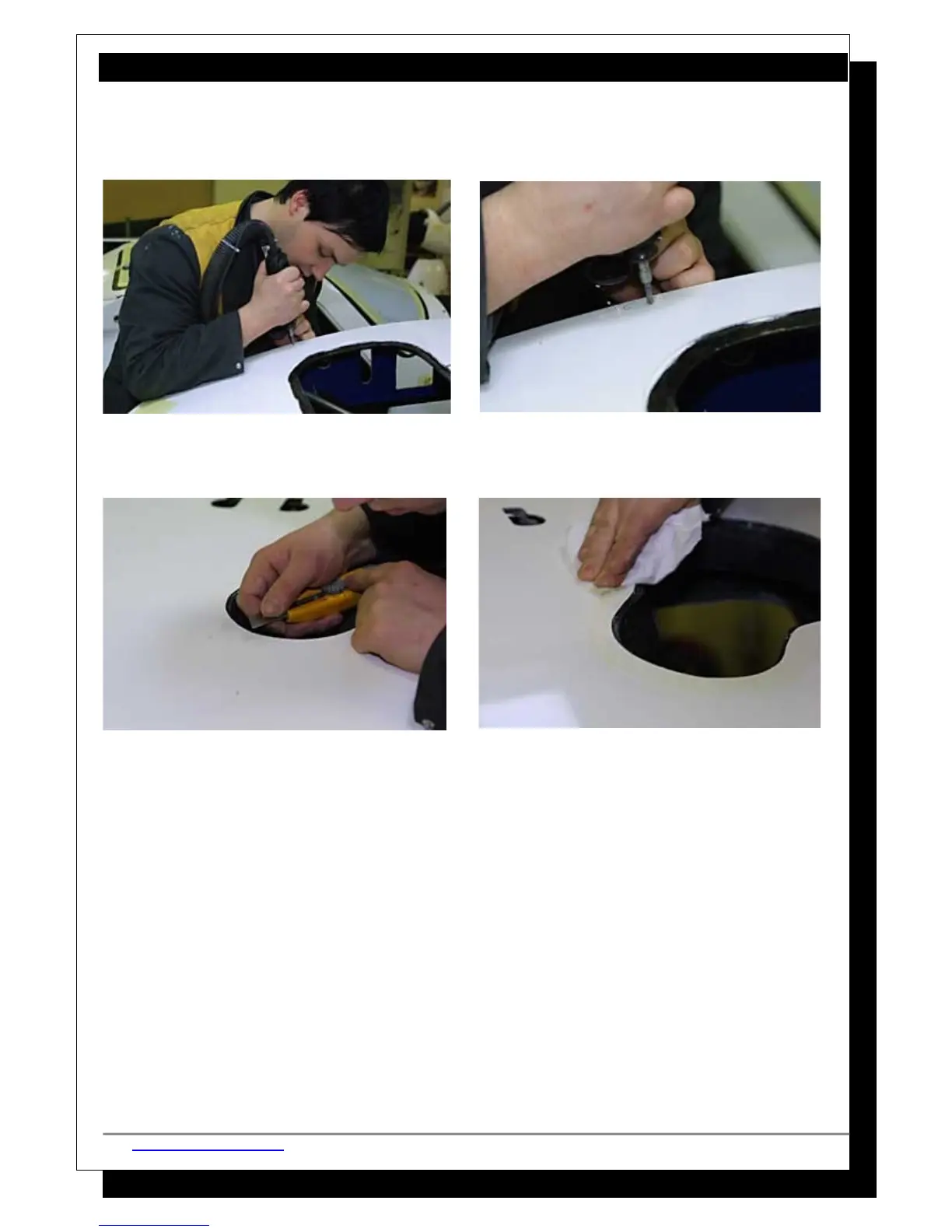

 Using a Dremel, grind the holes in the roof which will be used to fit the rescue parachute
slings. The outlines are already marked on the roof by the factory.
 Carefully cut off excess epoxy around opening of the chute container top cap with a very
sharp knife. Use cutting polish to take off any remaining epoxy and then clean the surface
with cleaning alcholol.
Fitting the ballistic chute (part 2)
Mounting the rocket assembly:
 Locate the 4 holes already drilled between the main parachute holder and the rocket
assembly blast tube.
 Apply Loctite 243 to the treads of the rocket assembly's mounting plate.
 Mount the rocket assembly; the launching handle must be run downwards through the
bottom of the rocket assembly blast tube, while the connecting strap should be pulled
through the top of the rocket assembly blast tube.
 Cover screws and holes with electrical tape.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 43 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
