Pipistrel Sinus - Drilling the Rudder Cable Holes; Running the Rudder Cable Outers

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

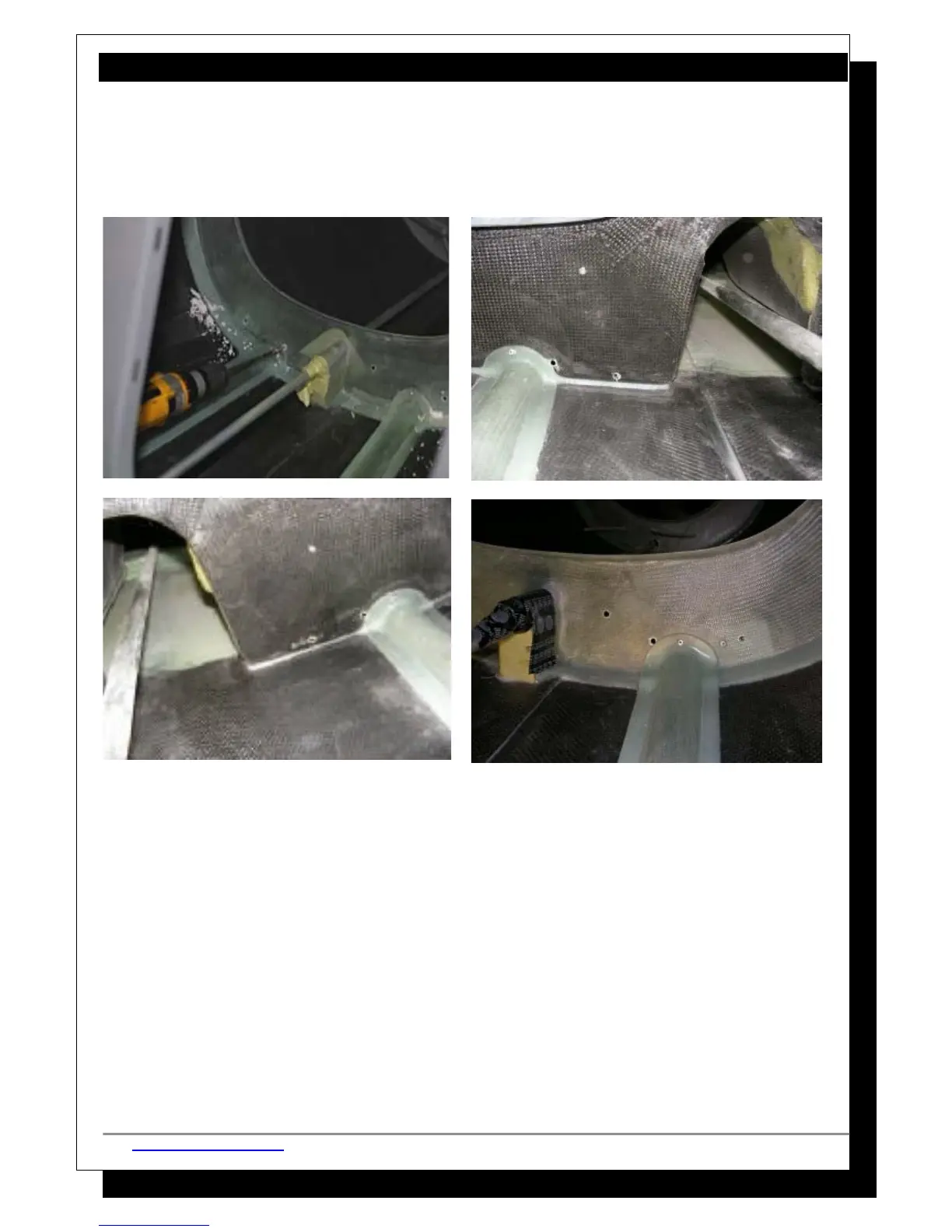

Drilling the rudder cable holes
 Drill the holes for the rudder cables in the rear bulkhead. Each hole has a diameter of
6mm hole. Also drill the bulkhead underneath the seats in the marked locations.
Running the rudder cable outers
The rudder cable outers run from the cockpit (just in front of the pedal adjustment knob) to just
beyond the first rear bulkhead.
 Mount the rudder cable outers using the supplied pressure hose
 Feed them under the seats towards the rear bulkhead as shown below
