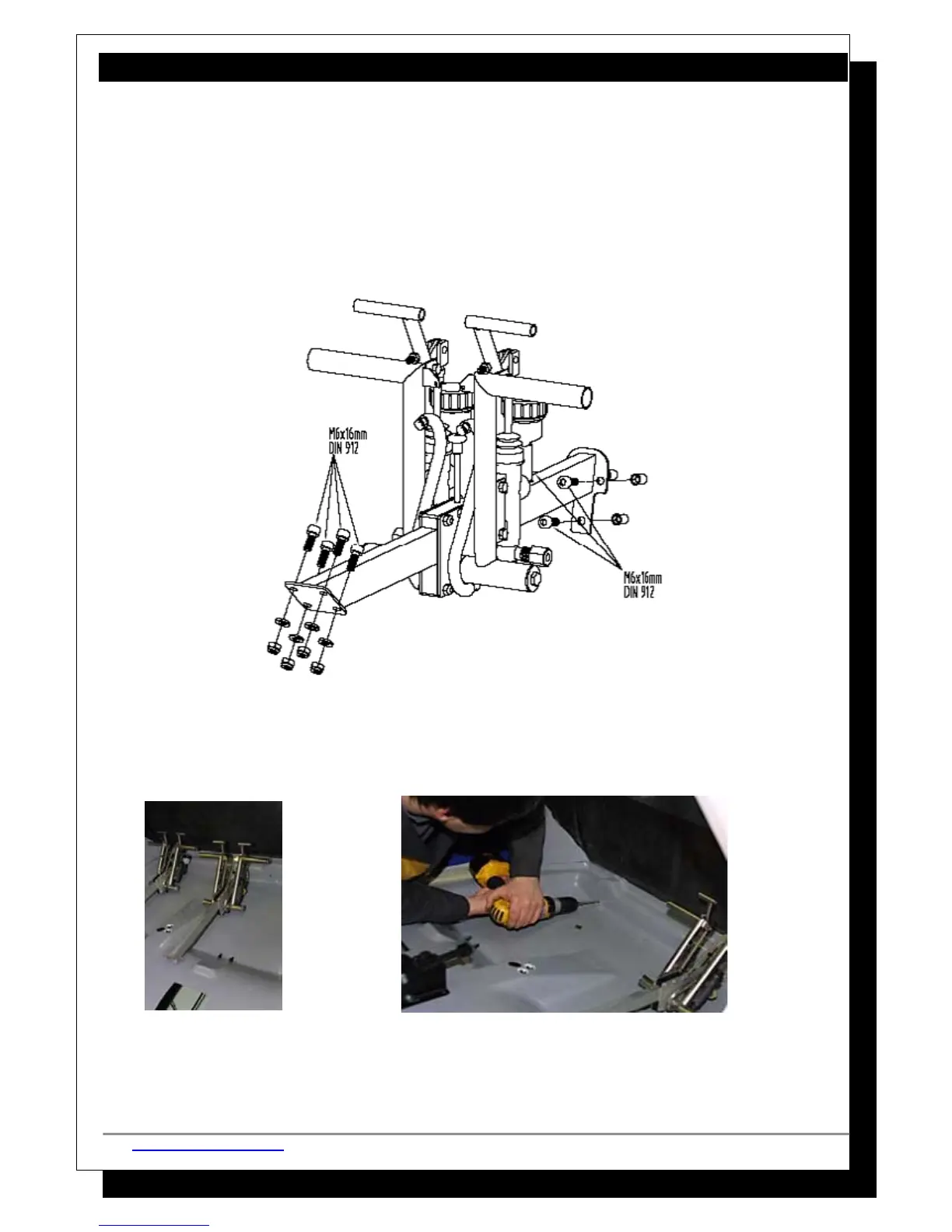

Mounting the adjustable pedals
The pedals come assembled with the brake pump and you can mount them following two steps:
mounting the pedal assembly and mounting the pedal adjustment knob.
Mounting the pedal assembly:
• First you need to drill the middle lower hole for the pedal's front mounting plate. Hole
positions come already marked on the cabin floor. Drill a hole 8mm diameter hole and fit
it with a nutsert. Place the pedals and bolt them in with the one lower middle screw in
the front mounting plate. Use a spirit level to make sure the pedals are level.
