Pipistrel Sinus User Manual

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

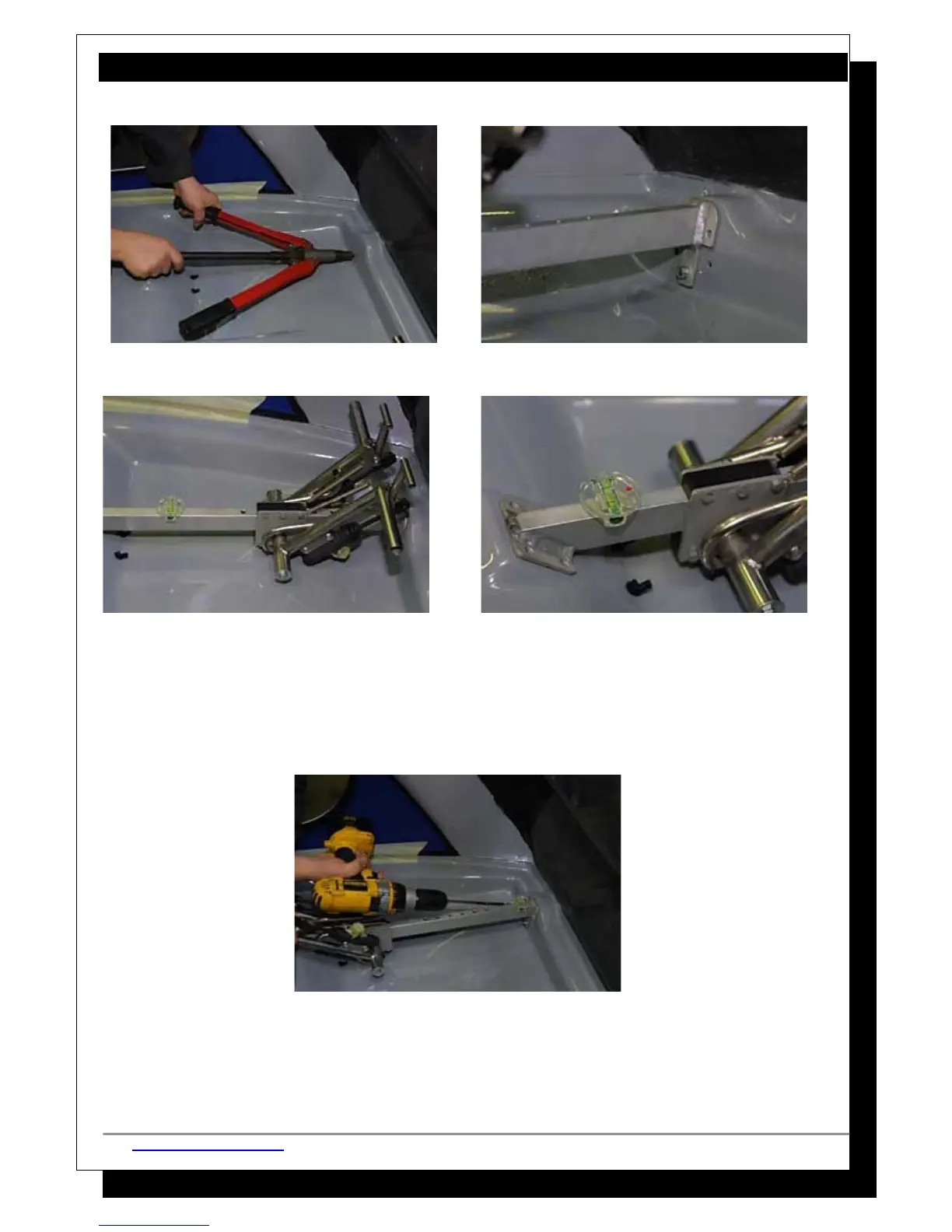

Make sure pedals remain level when drilling
• Now mark the other two holes in the front mounting plate and drill through the inner
layer. Do not drill into the firewall. Use a 6mm drill piece first and make sure the pedals
remain level.
• After the 6mm hole is drilled, open it up to 8mm and insert a nutsert in each hole. Before
tightening all the way, check that the pedals have remained level
• Tighten up all three bolts.
 Now you must center the pedals, push down on the assembly so that the rear mounting
plate sits flush on the cabin floor. Drill one 6mm hole and insert a bolt.
 Check the alignment of everything and, when satisfied, drill the remaining 3 holes and
insert the washers, nyloc nuts from behind.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 62 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
