 Fit the co-pilots pedals using the same methods.
Mounting the pedal adjustment knob:
For this step, the goal is to run a cable from the black adjustment knob, which
sits just behind the pedals, to the adjustment pin in the pedal assembly. A
spring is to be attached to the part of the cable, which runs under the cabin
floor.
 Remove the pedal assemblies and drill two 6mm holes in the cabin's floor

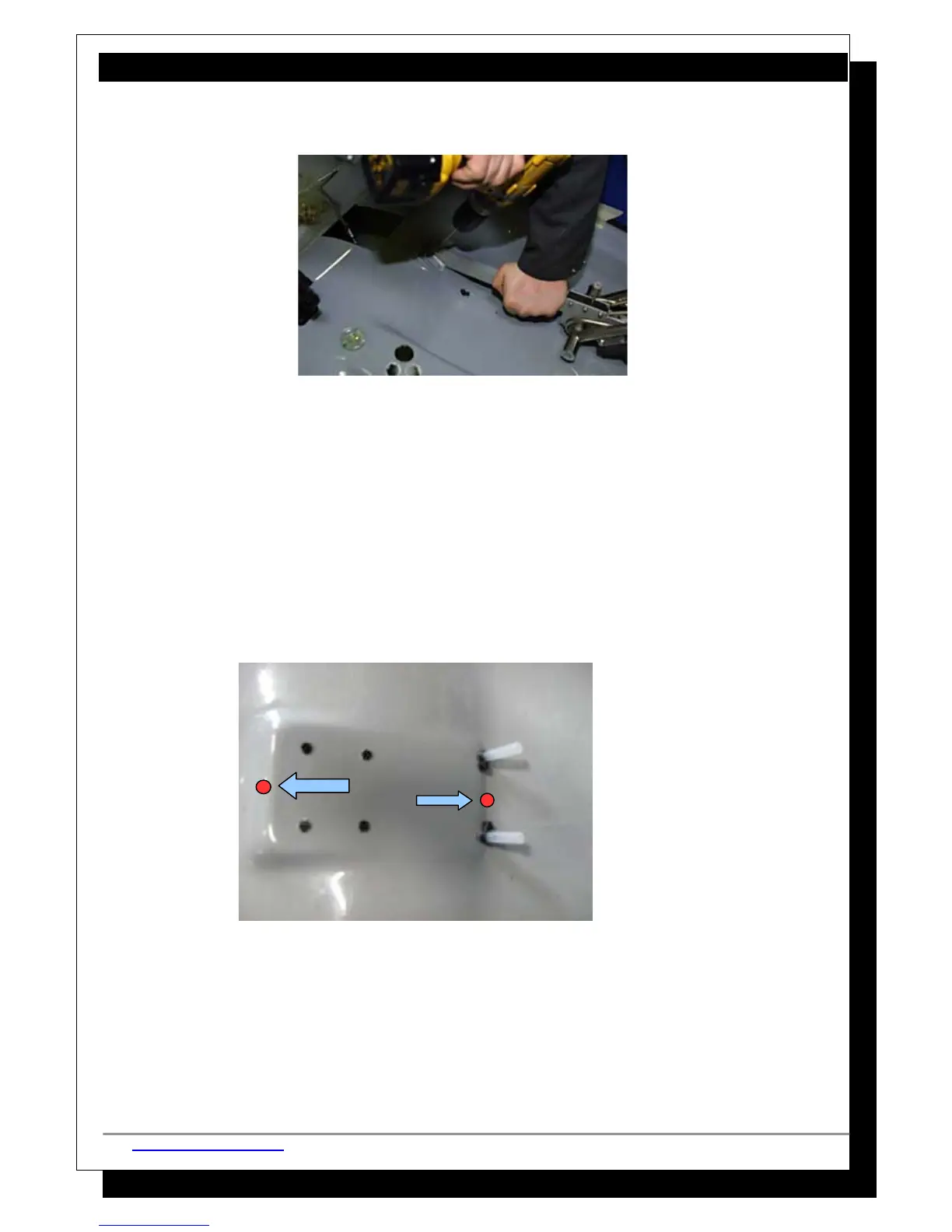

in the spots indicated in the photo below. The lower hole should be drilled
parallel to the cabin floor, while the upper hole should be drilled normal (at
a 90
o
) to the surface.
 Let's focus on the upper hole, where the knob will eventually be located.
Fix it with an insert and feed a short length of cabel outer through it.
 Fix the cable outer to the insert using a little Loctite 406. Trim the cable
outer, so that approx. 30 mm of outer remains under the cabin floor and
none remains in the cabin. See picture below.
