K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t
 Drill the rear mounting hole first and then the front hole when the trimmer is properly
positioned.

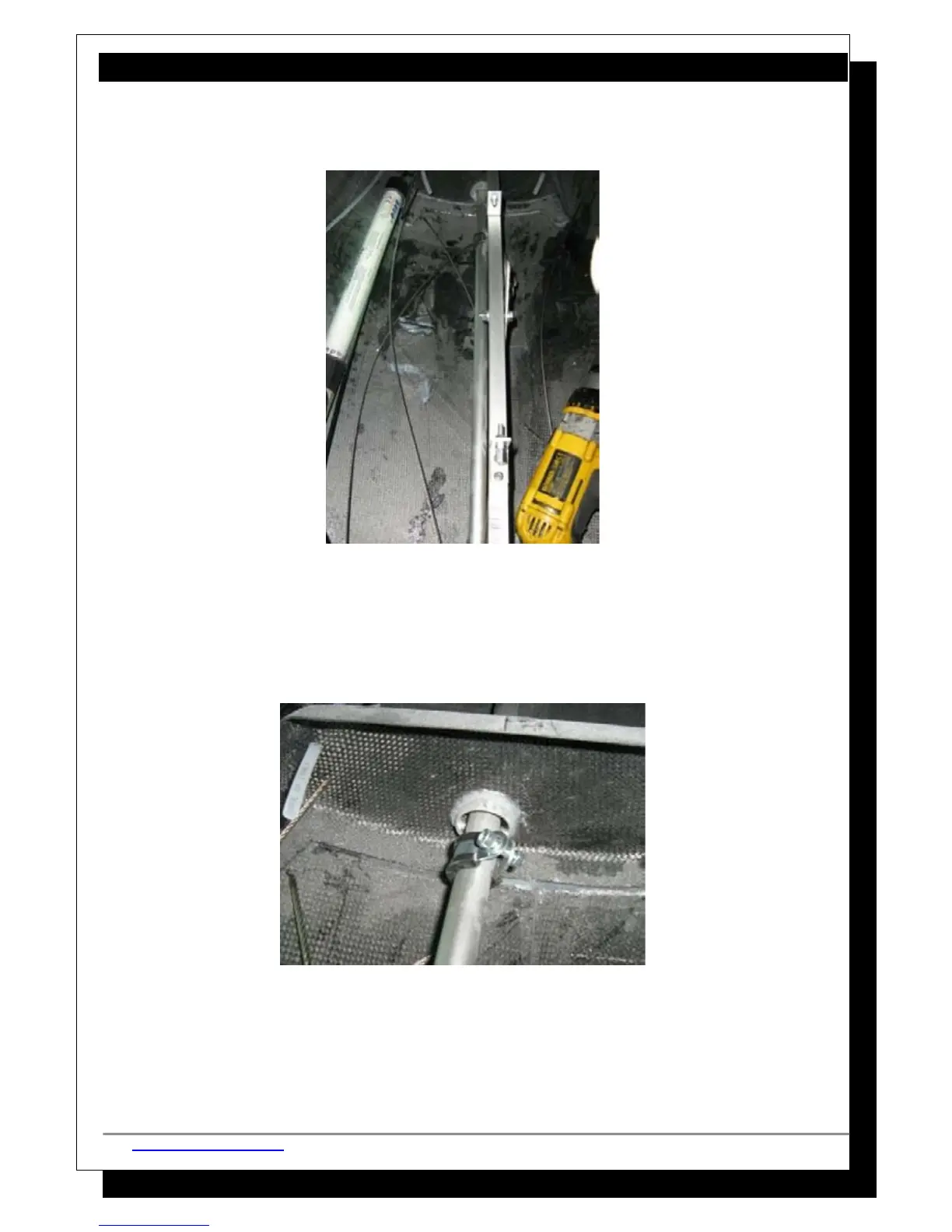

 Push the pushrod back to the rudder as far as it will go and mount the rubber clamp
around the pushrod with about 1cm clearance and at an angle of about 45 degrees to
make it line up with the trim lever.
 Then push the pushrod to the front of the aircraft and mount another rubber clamp in a
similar fashion, but with a 1cm clearance to the front bulkhead.
 Connect the springs, but be careful because of the pressure. Be sure to use your whole
hand to push on the lever
 Then connect up the trim cables to the top of the trim lever, pull the cables as tight as
you can and also check they are still mounted securely in the trim unit in the cockpit.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 96 of 267
