K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

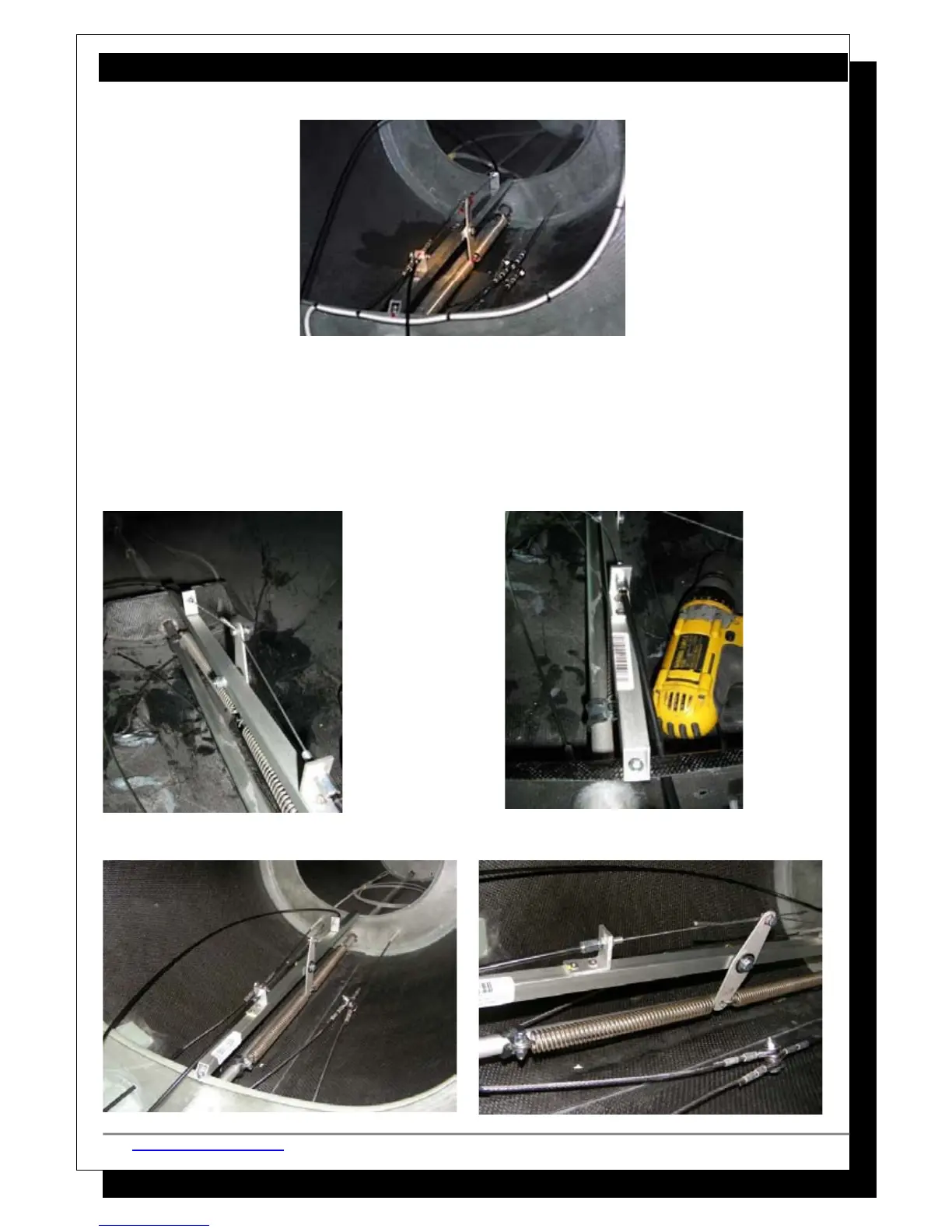

 When you're happy with the setup, secure the cables to the trimmer using Loctite 243
and cut off the extra cable
 Be sure to use a swage on the cable ends to prevent the cables from fraying. Do not over
tighten the locking screw or you can cut into the cable and possibly break it.
 Mark the bolts with red paint afterwards.
 Put tape back over the trim handle in the cockpit to keep out the dust.
