K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

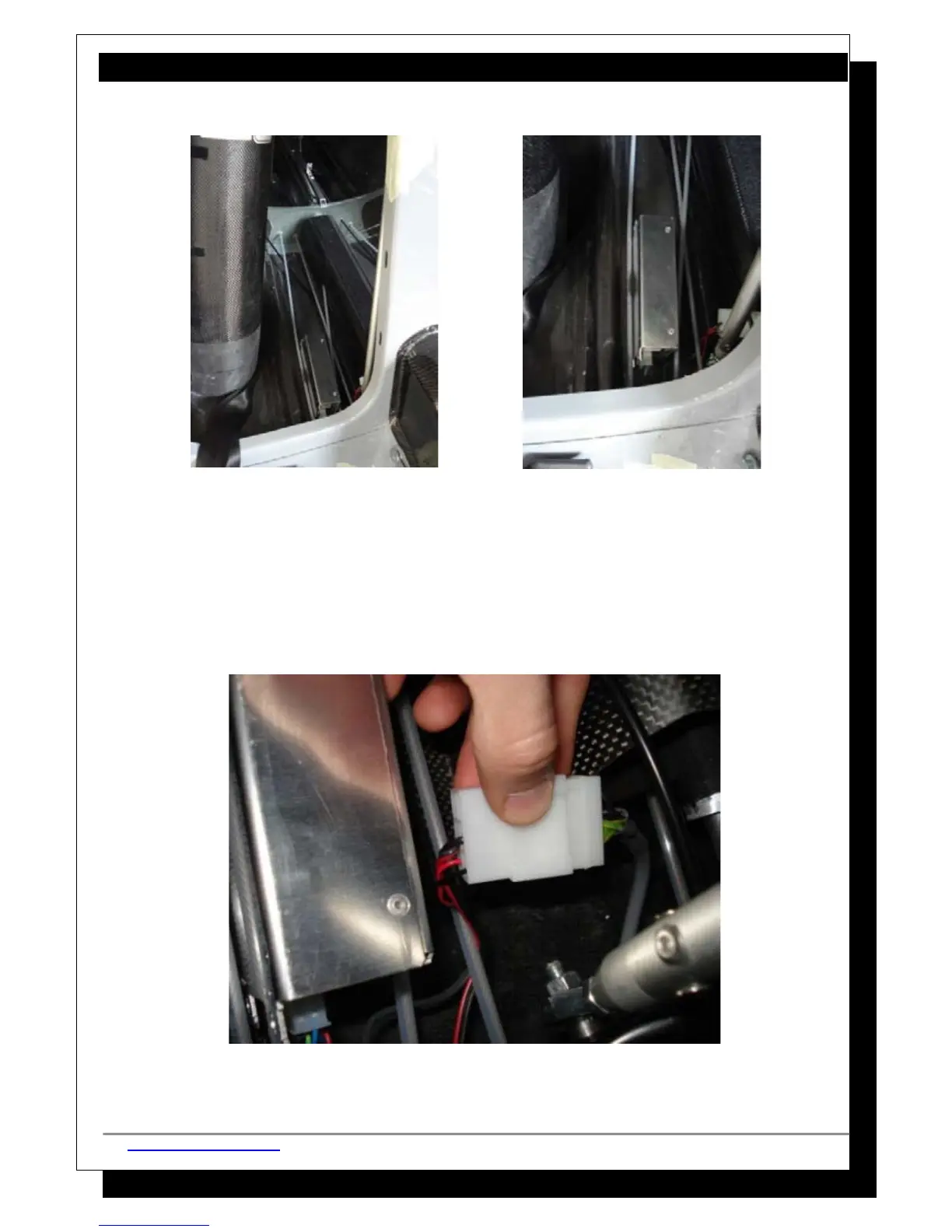

 Now take the grey cable and run it from the power supply, under the cabin floor to the
strobe box.
 Connect the strobe box and the microphone to the connector, which is at the end of the
grey power supply cable. The picture below shows the black strobe box wire and the red/
black microphone wire connected to one side of the connector, with the grey power
supply cable on the other side.
