Pipistrel Sinus User Manual

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t
 Now you can start cleaning up a little and organizing cables and hoses. Find the two
hoses that run from the fuel pump. Fix them to the brace (the one between the
electronics and the crankcase) using plastic ties.
 Also fix the two cables that come from the oil pump and the banjo fitting on the
crankcase.
 Do the same for the carburetor control cables.

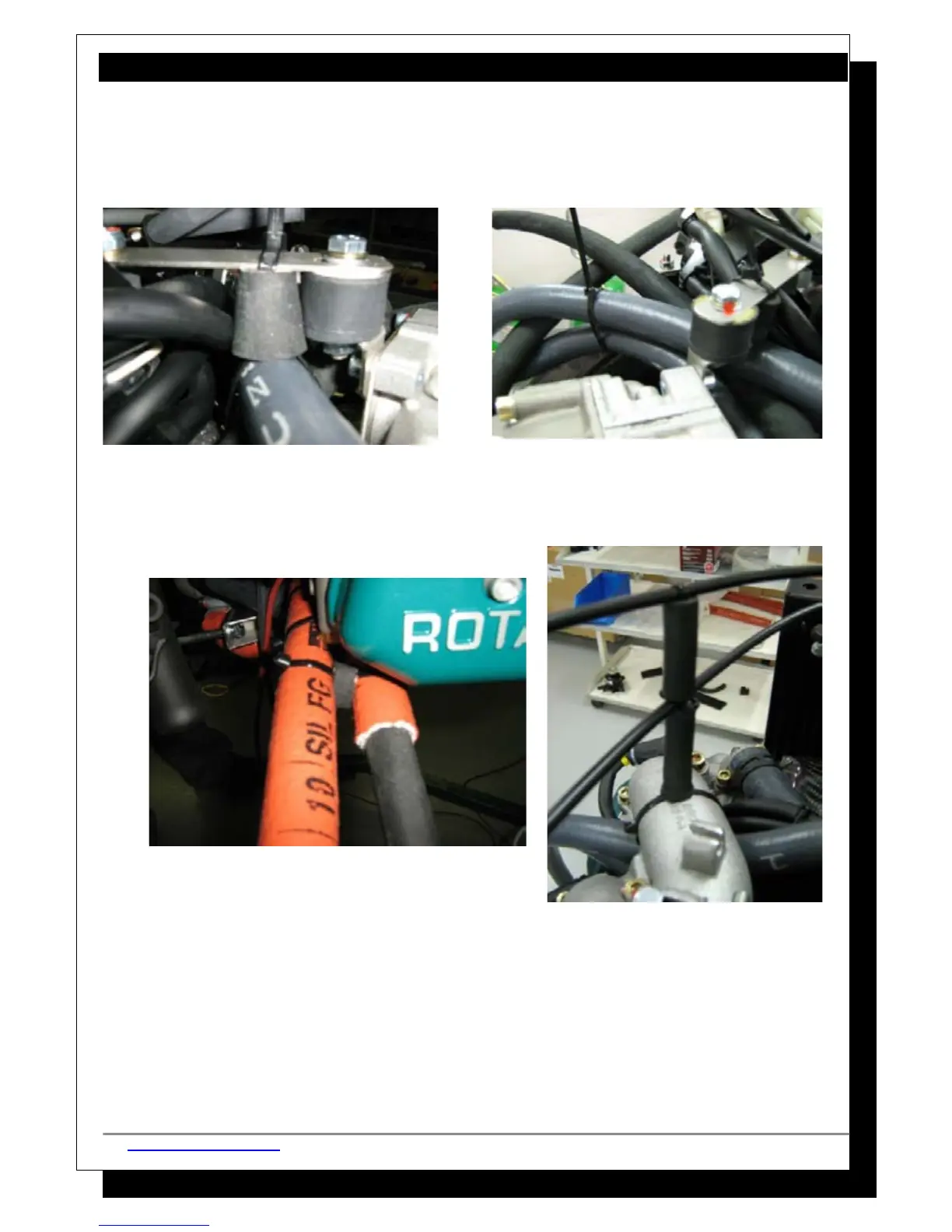

 Find the fuel line, which runs from the fuel pump between cylinder heads 2 and 4. Also
find the L-shaped, diagonally-bent brace provided with the kit.
 Mount the brace onto the top of cylinder head 4 as shown in the photo below.
 Fit the fuel line with a hose clamp and fix it to the brace.
 Then install the gas-flow sensor. Make sure the arrow on the sensor points towards the
carburetor. Use two 13mm hose clamps on either end of the sensor and a 12mm hose
clamp for attaching it to the carburetor.
 Cover the gas-flow sensor with orange rubber insulation. Run the sensor's wire toward
the carburetor end.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 157 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
