K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

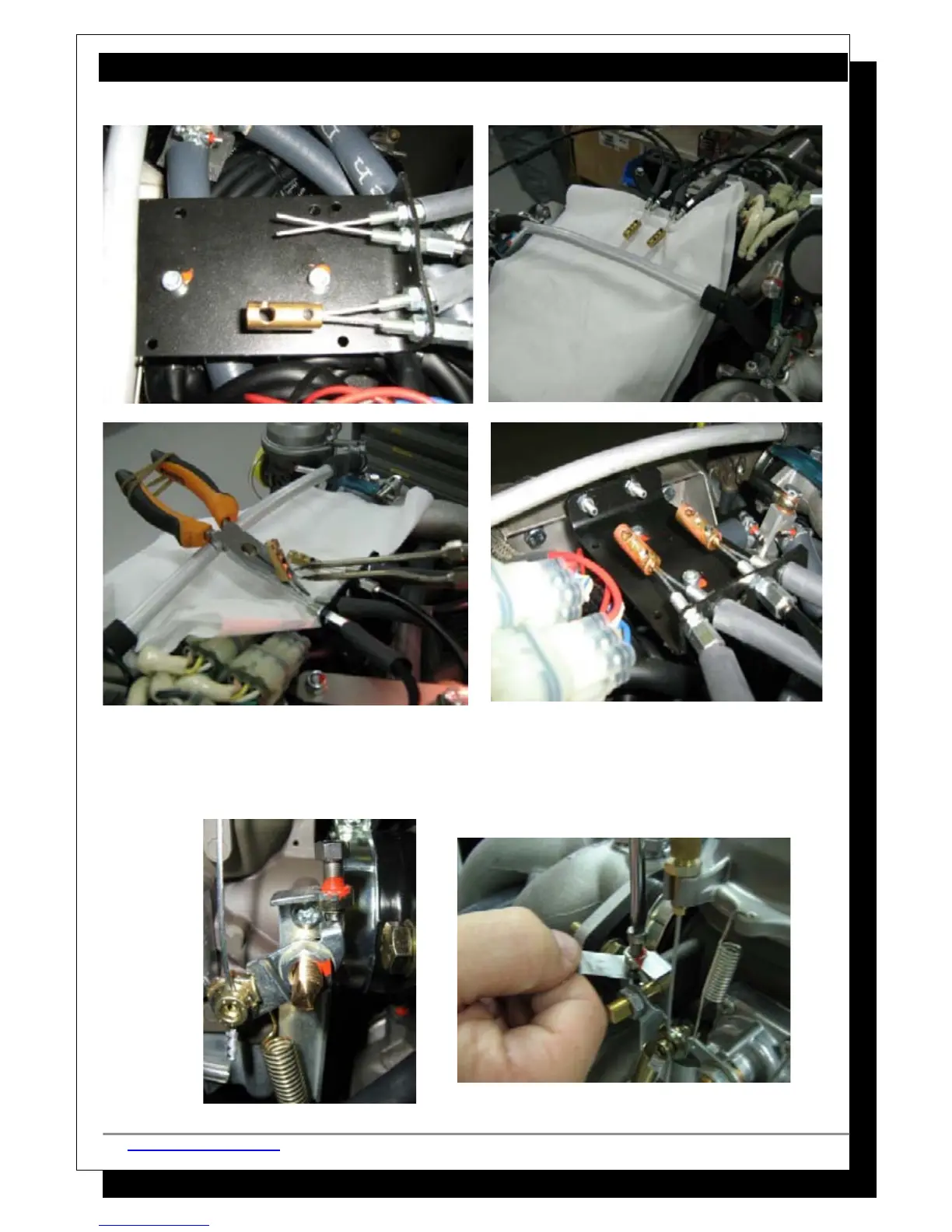

 Set the minimum throttle for both carburetors by measuring the gap between the stopper
bolt and the throttle lever shown in the picture below.
 The gap needs to be 0.5mm. Use your feeler gauge to set this. Once this is set, tighten
the stopper bolt another ¾ of a turn to achieve the proper minimum throttle setting.
