Pipistrel Sinus User Manual

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

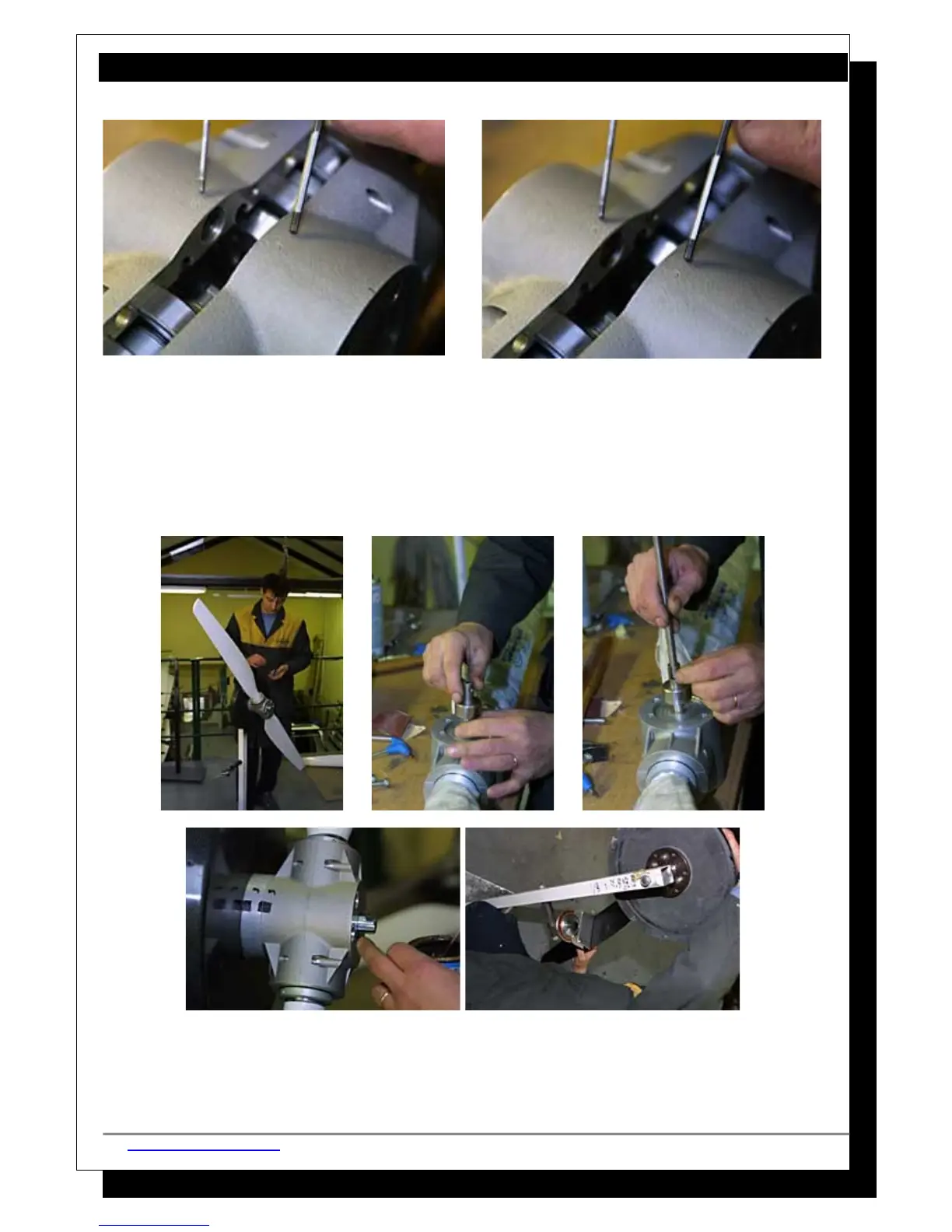

 Assemble the hub, the spacer and the backing plate and put the assembly back on the
prop balancer. Check the balance with the blades in place. Check blade movement again.
They should move freely but not too loosely. There will be a little resistance if they are
set up properly.
 If there is a little resistance use valve-grinding polish and put on the spleen and work the
propeller for a few minutes.
 Remove the propeller from the stand after adjusting the blade angles to be the same.
 Separate the prop hubs by tapping some bolts to break it open.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 193 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
