K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

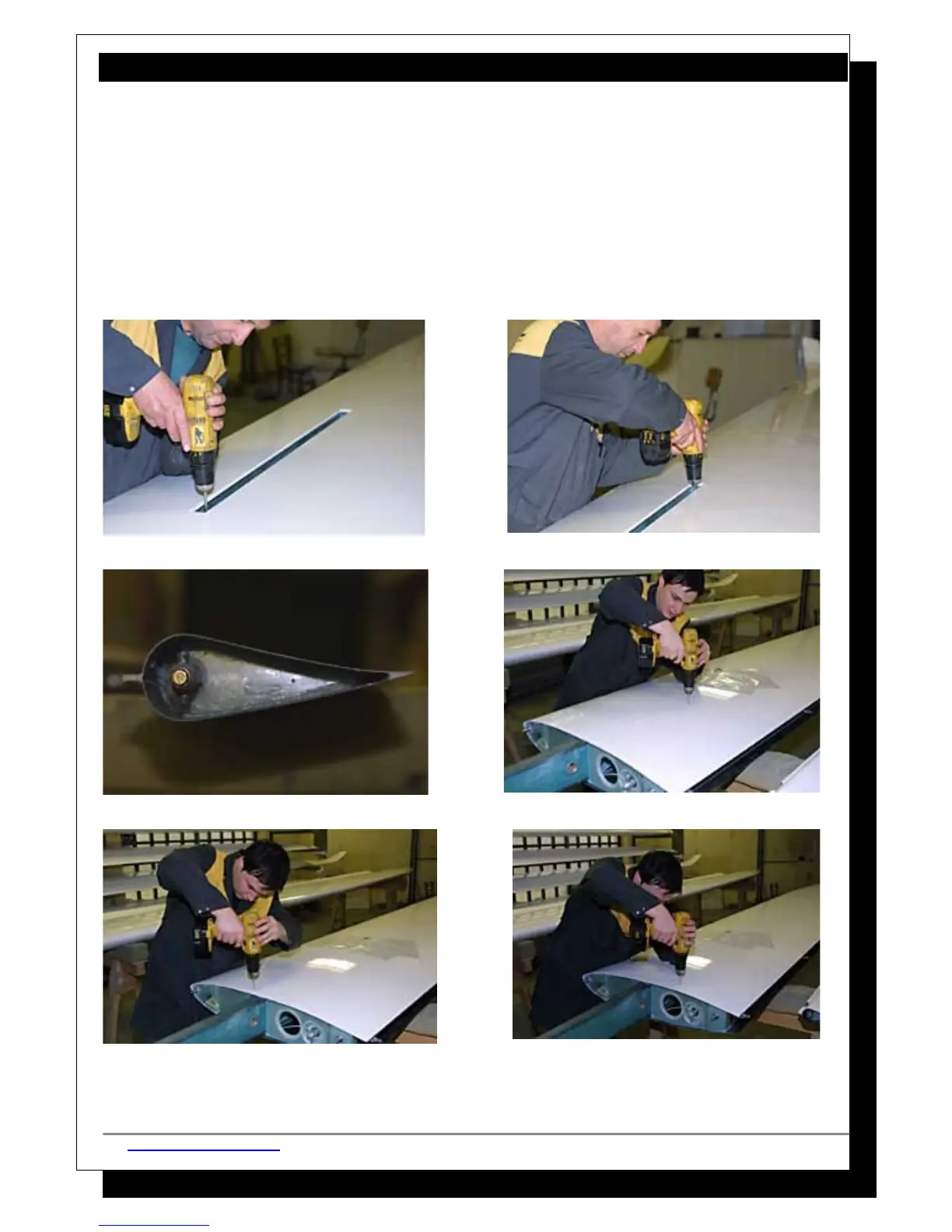

Drilling the necessary holes:
Drill two 5 mm holes in both ends of the brake slot base for drainage. Clean up the wing
surface afterwards and place red sticker.
Do the same for the two drainage holes located near the base of both wings. These
locations of these holes should already be marked. Note that the positions are different
on each wing because of the main wing spar positions.
Then mark and drill holes for the door pins and open them out to 8mm. Remove the paint
from the wings around the door latch position. Be very careful because the wing surface
is very thin. Roughen the door pins to allow good adhesion of epoxy.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 199 of 267
