Pipistrel Sinus User Manual

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t

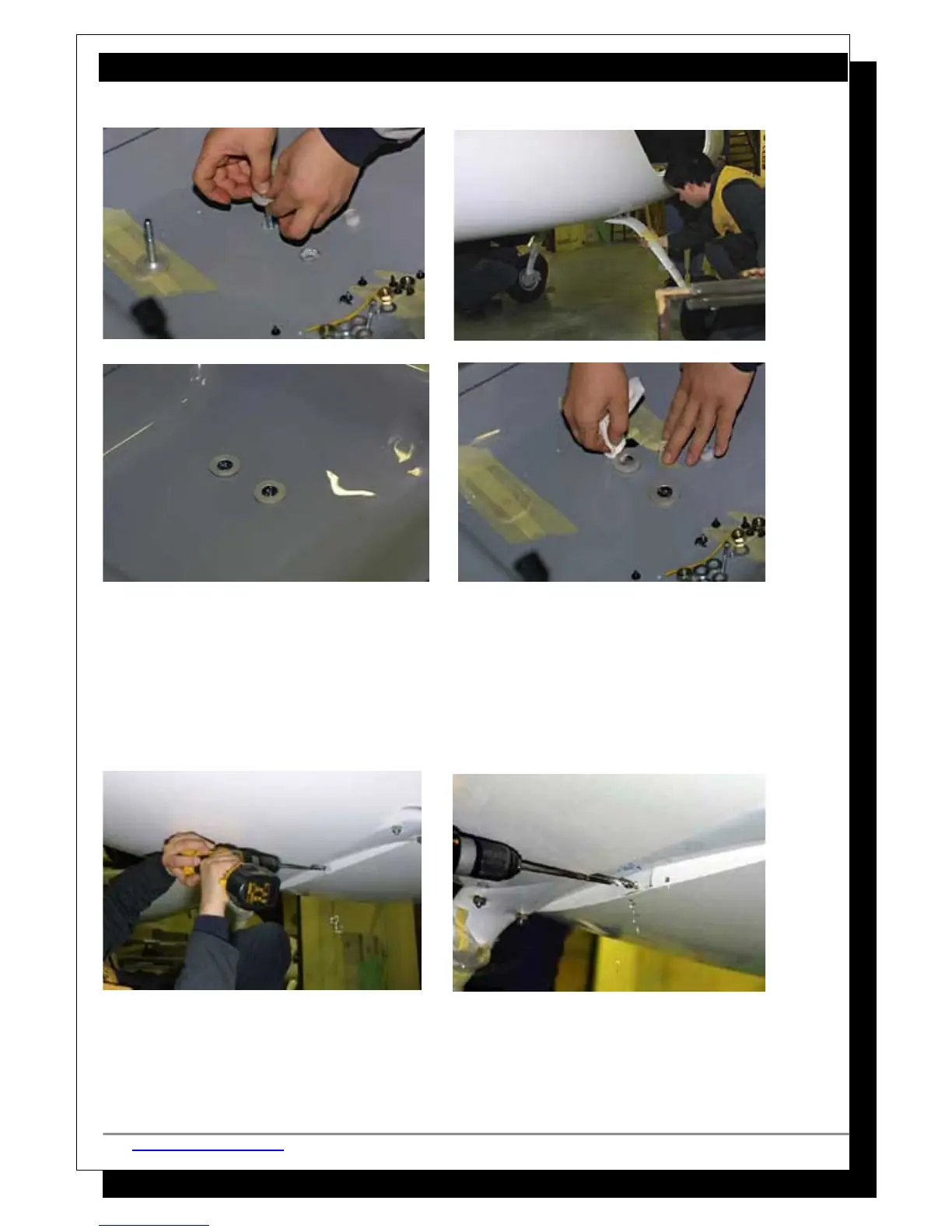

 The last step is to prepare the fuselage for the brake lines. Position yourself under the
fuselage so that you're looking directly at the undercarriage and your legs are pointing
towards the engine.
 Locate the center mark of the undercarriage's groove and drill two holes. Each hole
should be approximately 3 cm from the center mark.
 Dremel the opening in the side of the aircraft for the brake lines to run from the pedals to
the wheels. The position is already marked in marker pen by the factory.
 Be careful not to go to deep or you can go through the outer shell of the aircraft, then
clean up with a drill and sandpaper
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 20 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
