Pipistrel Sinus User Manual

K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t
 Now prepare both both the upper surface of the container and the inner surface of the
fuselage around the hole for mounting. Mix up a small volume of epoxy resin (without
cotton flock) and nicely cover both surfaces with it.
 Mix up to batches of epoxy resin; one normal mix with cotton flock and one rapid-dry
polyester mix. Make sure that they're fairly thick mixes. Remove the strips of tape you

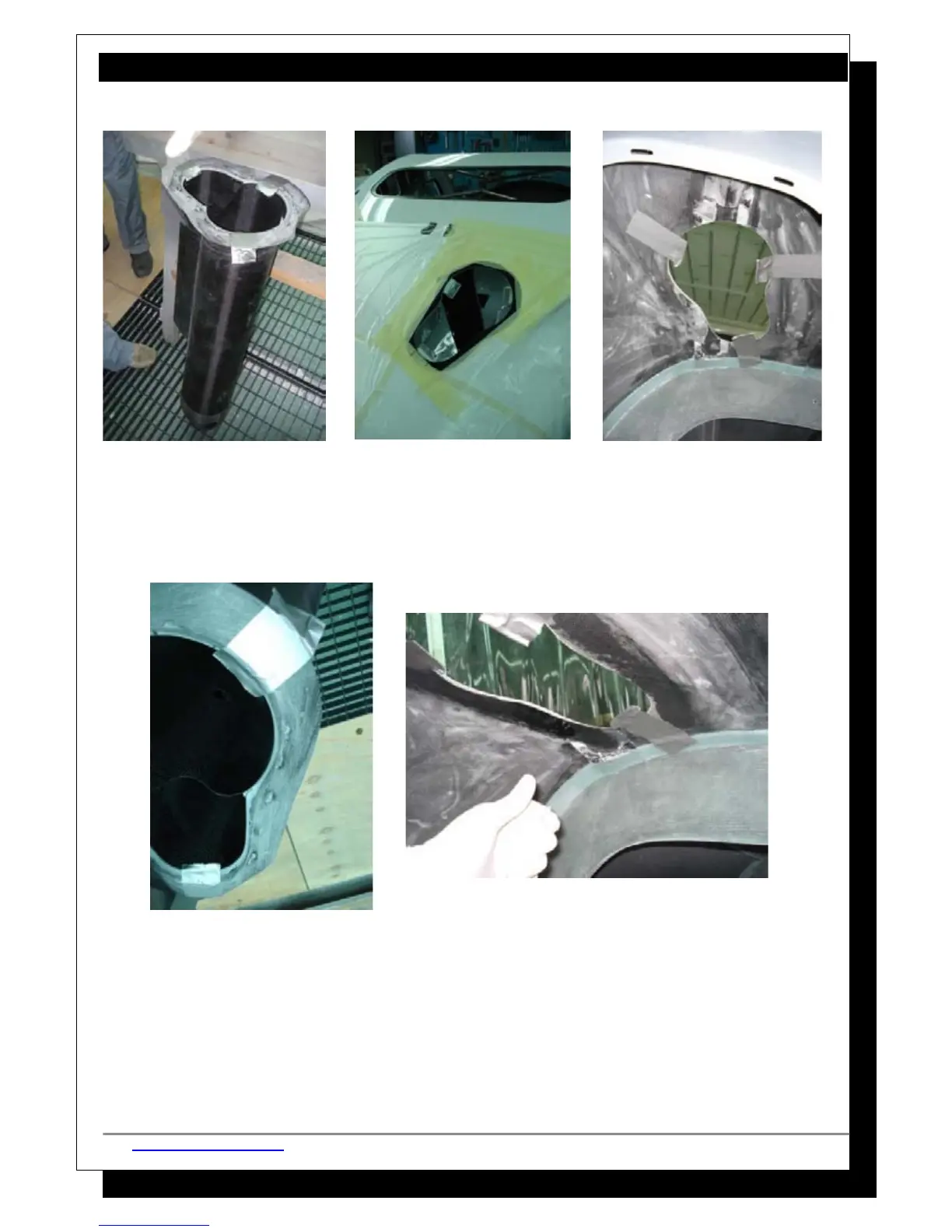

placed on the containers rim earlier and apply the epoxy resin as shown in the photos
below. The rapid-dry epoxy resin is to be applied to those areas where the duct tape was
before.
 Also place a “handful” of rapid-dry epoxy resin to the bottom of the container. This will
serve as the second fixation point between the container and the fuselage.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 39 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
