K i t M a n u a l f o r P i p i s t r e l S i n u s a n d V i r u s A i r c r a f t
 Feed the rudder cables through from the middle of the aircraft, using a little WD-40 for
lubrication.

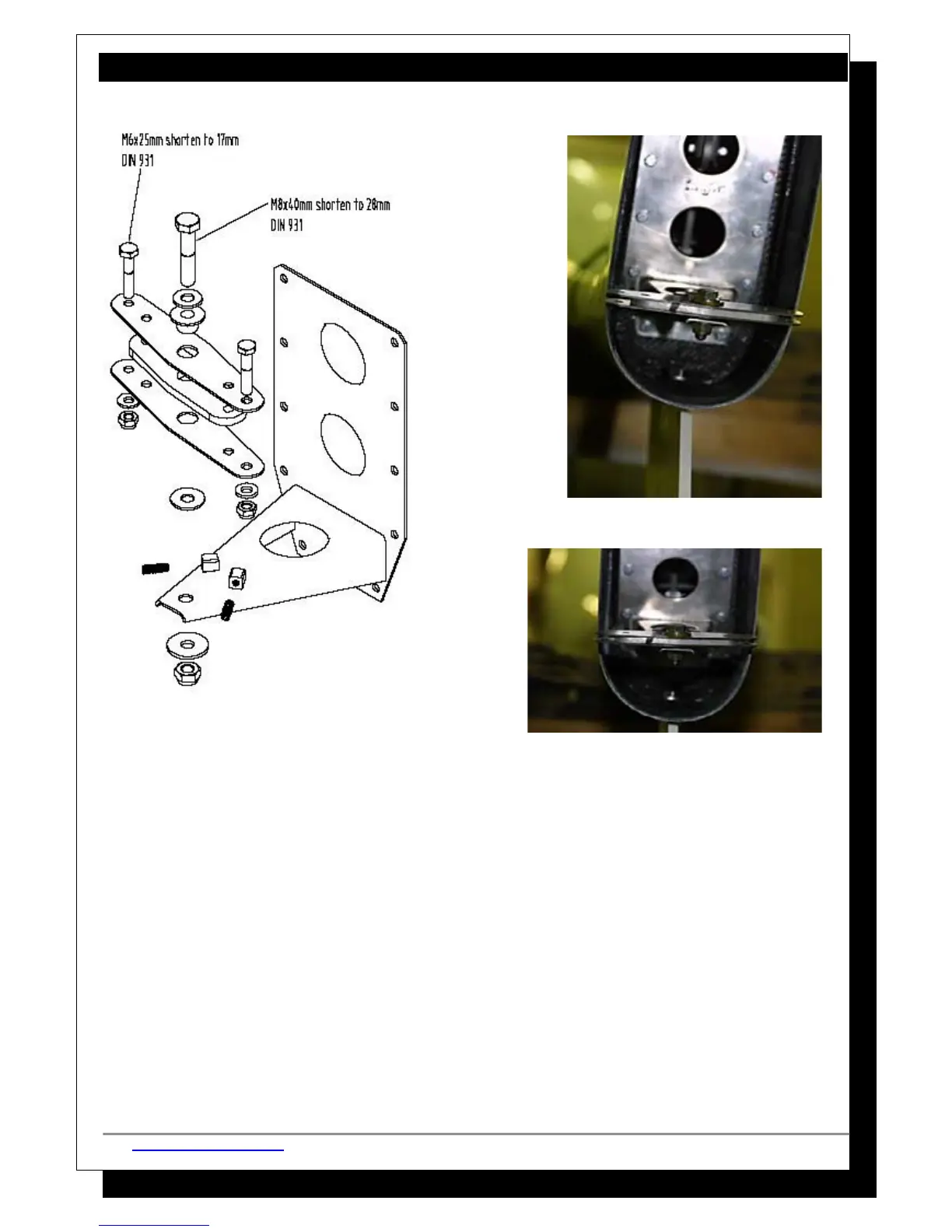

 Position the cable ends about ½ way between the bulkheads and mark the rear exit
points of the cable at the center of the holes as shown in the pictures
 Swage with the fittings supplied and a nicopress tool. Check that the swaged end is not
more than 5mm thick or it will not fit onto the bracket properly. If it is too thick it will
need to be pressed down to be less than 5mm. Put grease on the cable ends and insert
the small bush and position into the bracket. Fix the bolt and nut with Loctite 243.
http://www.pipistrel.si © Pipistrel Release March 2009 © Page 76 of 267

Pipistrel Sinus Specifications

General

Manufacturer	Pipistrel
Seats	2
Rate of climb	5.5 m/s (1, 080 ft/min)
Ballistic parachute rescue system	Optional
Engine	Rotax 912
Type	Motor glider
