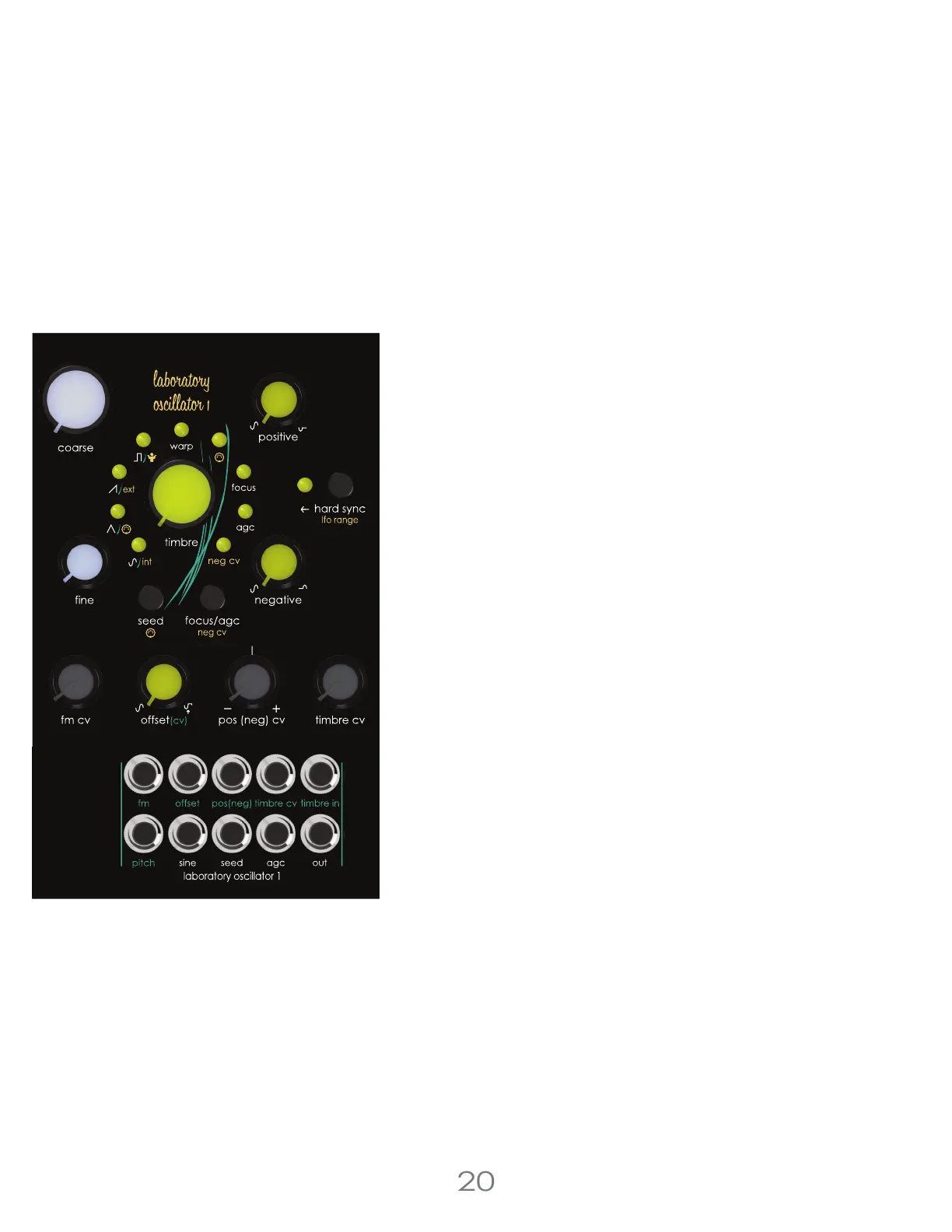

Laboratory Oscillator 1
MIDI Pitch Response
[EDIT BUTTON] + [SEED BUTTON] enables or disables MIDI pitch response.
This also determines if the oscillator responds to the [OCTAVE UP BUTTON]
and [OCTAVE DOWN BUTTON] in the voice control section.
Laboratory Oscillator 1 Input Jacks :
[PITCH JACK] 1 volt per octave pitch input jack.
[FM JACK] Linear frequency modulation input jack. Attenuated using
the [FM CV ATTENUATOR].
[OFFSET JACK] Adds a positive or negative voltage offset to the
waveform. Attenuated using the [OFFSET(CV) KNOB].
[POS(NEG) JACK] Center clipping modulation jack. Attenuverted using
the [POS(NEG) CV ATTENUVERTER].
[TIMBRE CV JACK] Timbre modulation jack. Attenuated using the [TIMBRE
CV ATTENUATOR].
[TIMBRE IN JACK] Audio input to the wavefolder, patching into this
overrides the oscillator’s signal path into the wavefolder with an external
audio signal. This means the second oscillator or any other audio signal
can be patched through the wavefolder in place of oscillator 1.
Laboratory Oscillator 1 Output Jacks :
[SINE JACK] Clean sine wave output jack.
[SEED JACK] Unprocessed selected seed wave.
[AGC JACK] Center Clipping and AGC modified version of the seed
output, before the wave folder.
[OUT JACK] Wavefolder output.
