Pittsburgh Modular Voltage Lab 2 - Page 26

26
[FALL JACK] Fall time modulation input. Attenuverted using the [FALL CV ATTENUVERTER].
Function Generator Output Jacks :
[END OF RISE JACK] Trigger output that fires when the function generator completes its rise stage.
[OUT JACK] Function Generator main output, 0-5v.
[INVERT JACK] Function Generator Inverted output, 0-5v.
Function Generator Mix Output Jacks :
[+OR JACK] compares the output voltage of Function Generator 1 with the output voltage of Function Generator 2 and
passes the output voltage of the Function Generator with the highest voltage.
[|F1-F2| JACK] outputs the voltage difference between the output voltage of Function Generator 1 and Function
Generator 2.
[MIX JACK] sums the output voltage of Function Generator 1 with the output voltage of Function Generator 2.
The [-MIX JACK] outputs the inverted sum of the output voltage of Function Generator 1 with the output voltage of
Function Generator 2.

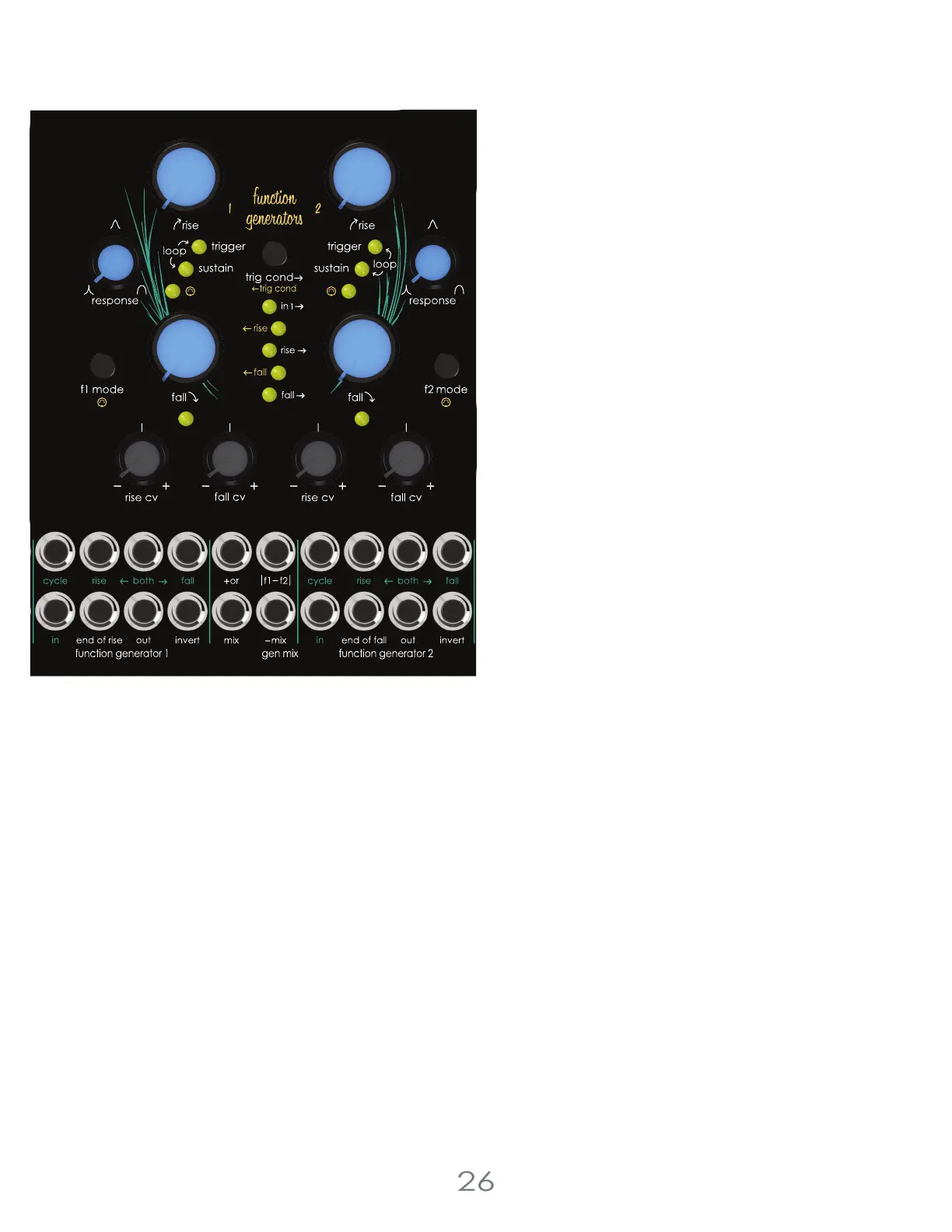

Function Generators
Generator Mix Outputs
The Function Generator section utilizes 4 different mixing
circuits to combine the outputs of Function Generator 1
and Function Generator 2. Depending on the relationship
between both function generators, these can generate
more complex LFO’s, multi-stage envelopes, or react to
varied input signals in useful and unexpected ways.
Especially when combined with trigger conditions, the
mixed outputs enable a radically deep interplay
between the two function generators. The potential
functionality, and valid use-cases are almost endless.
Function Generator Input Jacks :
[IN JACK] Function Generator input.
[CYCLE JACK] Sets the function generator to loop when a
gate signal is present.
[RISE JACK] Rise time modulation input. Attenuverted
using the [RISE CV ATTENUVERTER].
[BOTH JACK] Modulation input for both rise and fall.
Attenuverted using the [RISE CV and FALL CV
ATTENUVERTERS].
3 Voltage Lab 2 Voice Modules
