Control
Clock Source

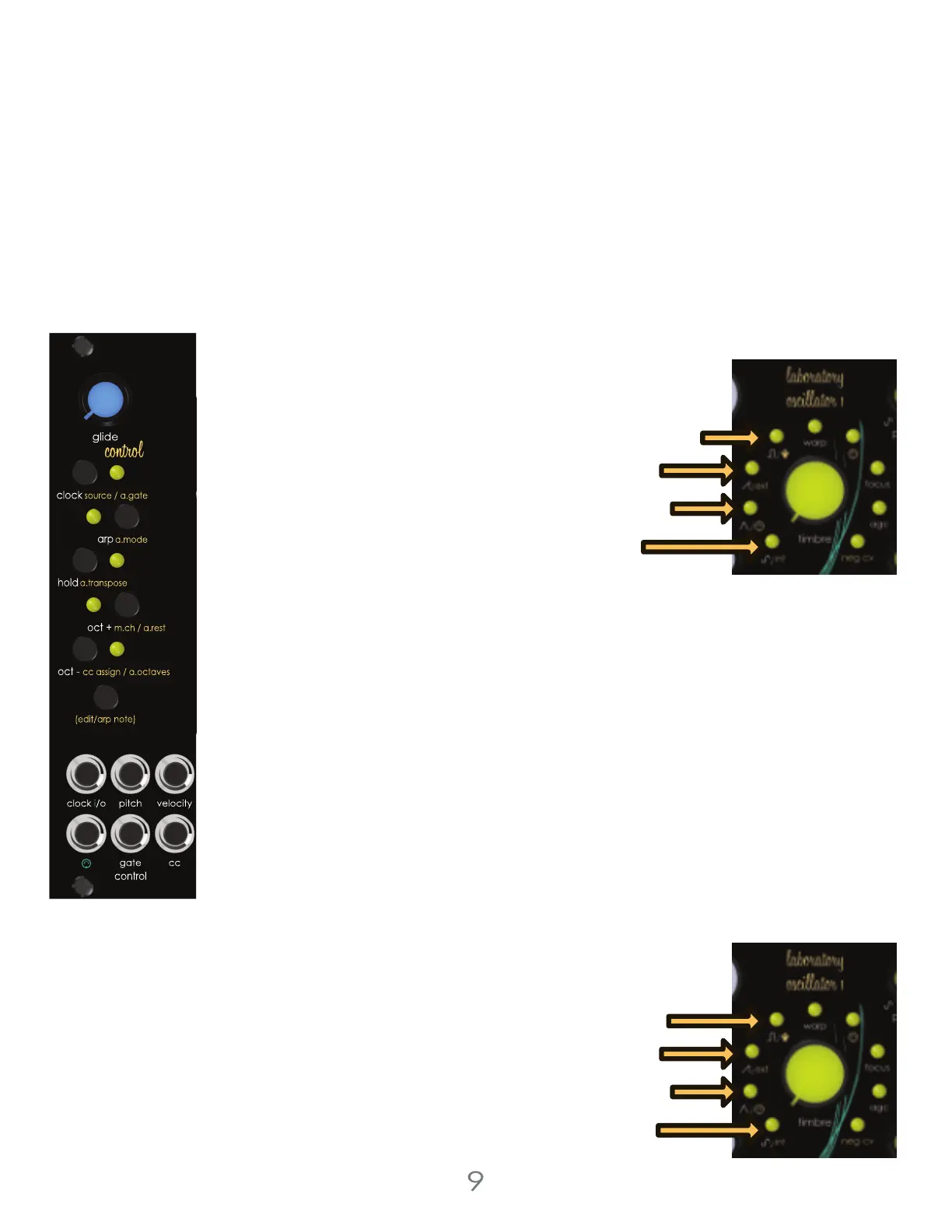

The Control module utilizes 4 clock sources; internal tap tempo, external MIDI, external gate,
and internal pseudo-random. The clock is used to advance the Arpeggiator and Sample and
Hold. To select the clock source, press and hold the voice section’s [EDIT BUTTON] then press the
[CLOCK BUTTON] to cycle through the 4 choices. These options will display on laboratory
oscillator 1’s seed LED’s, with the yellow text indicating each mode. Press once to check current
mode. Press again to advance through the available options. The clock source can only be
changed when arpeggiator mode is NOT active.
Clock Source Options :
Random Internal clock [Square LED]
External Gate [Saw LED]
External Midi [Triangle LED]
Internal [Sine LED]
Internal Tap Tempo Clock Source
The internal clock source utilizes the voice section’s [CLOCK BUTTON] to modify the rate of the
internal clock. Tap the voice section’s [CLOCK BUTTON] to change the tempo of the clock. The
internal clock rate is saved in memory and recalled when Taiga is powered on. The voice
section’s [CLOCK I/O JACK] functions as a clock output source in internal tap tempo clock
mode. The voice section’s [CLOCK I/O JACK] outputs a +5v 10ms gate signal.
External MIDI Clock Source
The external MIDI clock responds to MIDI start/stop messages and MIDI tempo from an external
MIDI clock source. In external MIDI clock mode, the voice section’s [CLOCK BUTTON] acts as a
clock divider cycling through 4 available clock divisions. ÷ 1, ÷ 2, ÷ 4, ÷ 8. Set the MIDI clock
division by pressing the voice section’s [CLOCK BUTTON]. Press once to check current mode.
Press again to advance through the available options. The MIDI clock division is saved in
memory and recalled when Taiga is powered on. The voice section’s [CLOCK I/O JACK]
functions as a clock output source in External MIDI Clock mode. The voice section’s [CLOCK I/O
JACK] outputs a +5v 10ms gate signal.
External MIDI Clock Divider Options :
Divided by 8 [Square LED]
Divided by 4 [Saw LED]
Divided by 2 [Triangle LED]
Divided by 1 [Sine LED]
