10
Control
External Gate Clock Source
The external gate clock uses an external gate signal to trigger the clock. In external gate clock
mode, the voice section’s [CLOCK BUTTON] acts as a clock divider cycling through 4 available
clock divisions. ÷ 1, ÷ 2, ÷ 4, ÷ 8. Set the external gate clock division by pressing the voice
section’s [CLOCK BUTTON]. Press once to check current mode. Press again to advance through
the available options. The external gate clock division is saved in memory and recalled when
Taiga is powered on. The voice section’s [CLOCK I/O JACK] functions as a clock input in External
Gate Clock mode. The voice section’s [CLOCK I/O JACK] triggers the clock with the rising edge
of most waveforms that rise above 2.5v.

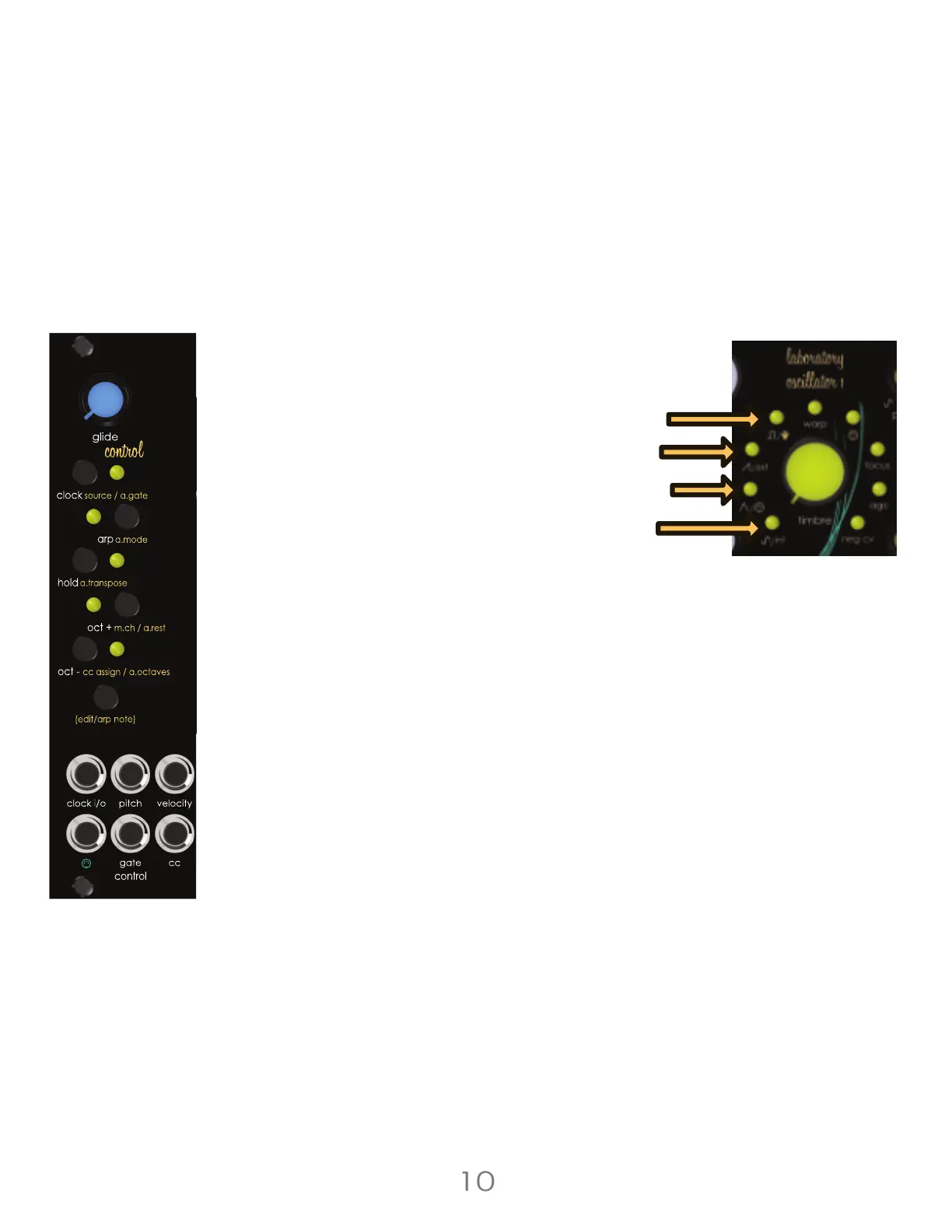

External MIDI Clock Divider Options :
Divided by 8 [Square LED]
Divided by 4 [Saw LED]
Divided by 2 [Triangle LED]
Divided by 1 [Sine LED]
Internal Pseudo-Random Clock Source
Internal random clock is based on the tap-tempo set by tapping the voice section’s [CLOCK
BUTTON], but randomly adds or subtracts up to 90% of the clock rate per step. The random clock
is very sloppy and will not sync properly with anything.
3 Voltage Lab 2 Voice Modules
