BT37 MarkII: Service Manual MA200606 1.0.0
Introduction

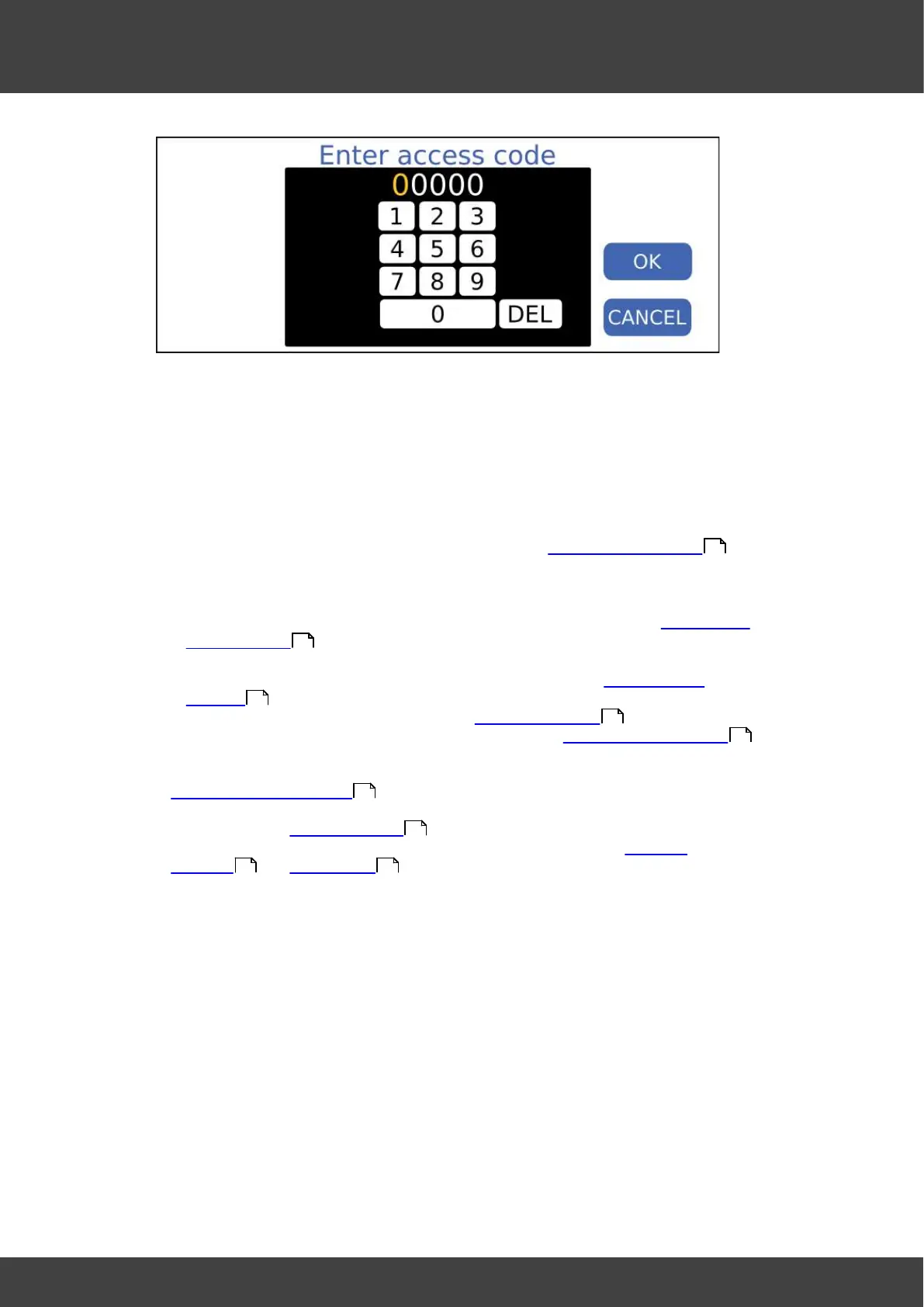

1. Use the keypad to enter the required number.
2. Use DEL to erase an invalid entry.
3. Press OK to submit the entry or CANCEL to exit the menu option.
1.1.5.2 Menus
All menu options are shown below:
 Display mode: Press to toggle through different presentations of the current incubator
readings and setpoints.
 Change bottle: Select to change the humidifier. See the Installing the humidifier
section.
 Configuration: Select to change the control settings or calibration settings. Calibration
settings should only be adjusted by trained service personnel.
o Control settings: Select to adjust the main incubator settings. See the Changing the
control settings section.
o Calibration offsets: Select to adjust the calibration settings. Calibration settings
should only be adjusted by trained service personnel. See the Calibration and
servicing section.
 Test: Select to run the in-built tests. See the Testing the alarms section.
 Set access code: Select to set the access code. See the Setting the access code
section.
 Reset access code: Select to reset the access code if it has been forgotten. See the
Resetting the access code section.
 Security: Select to allow the incubator settings to be temporarily modified via the
network. See the Network security section.
 Standby: Select to place the incubator into standby mode. See the Theory of
operation and Switching off sections.
1.1.6
Status and alarm indicators
The status indicators on the front of the BT37 show the current state of the system.
These are used along with an internal buzzer and the external alarm. The state of the
indicators, buzzer and external alarm in various states are shown below.
