Planer BT37 MarkII - Presetting Rotary Damper

85
BT37 MarkII: Service Manual MA200606 1.0.0
Component replacement

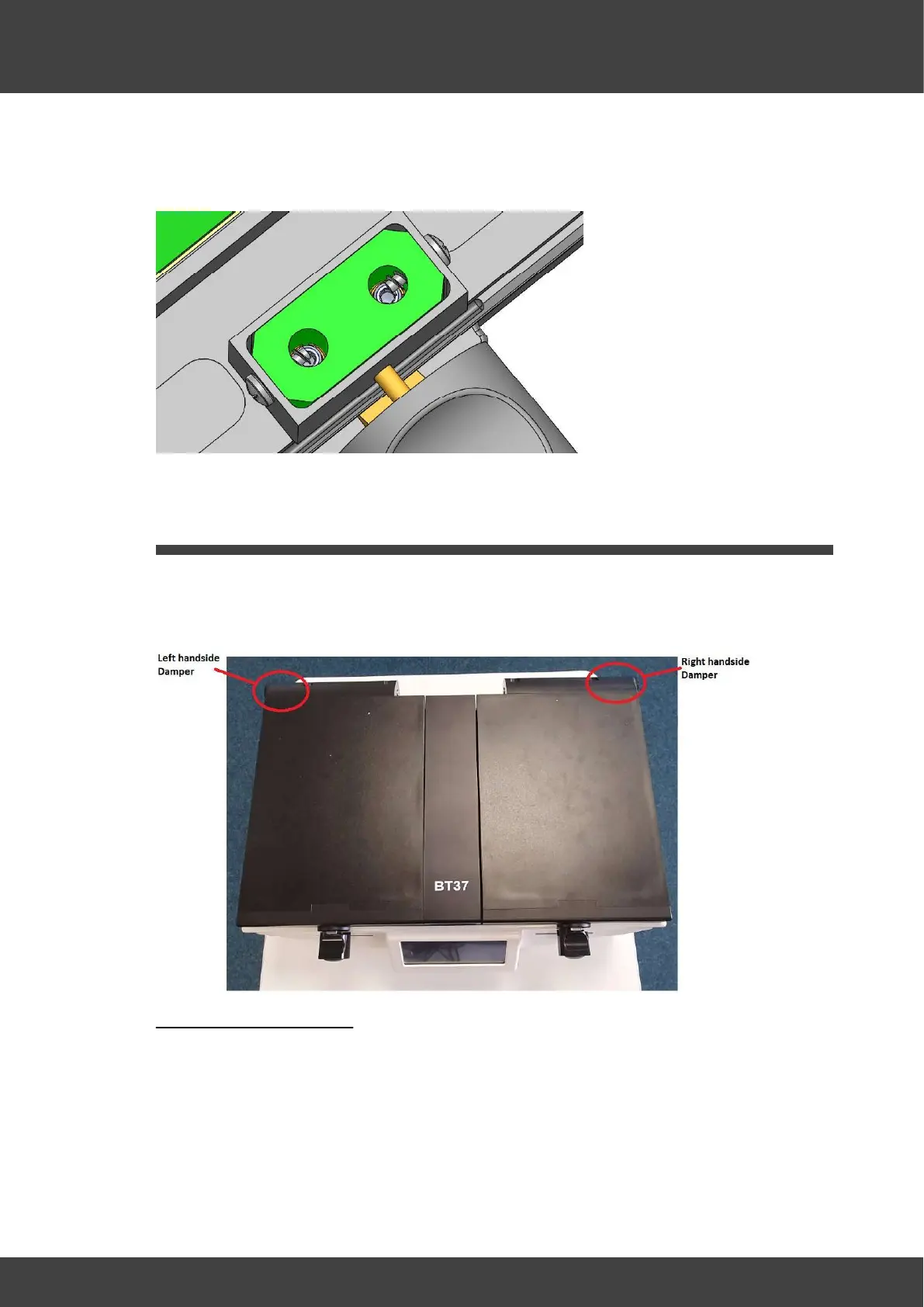

Fig 7: Adjustment on grub screws
14. While latch is closed, do up the two side screws to secure block in place. See fig 8.
Fig 8: Side screws done up
3.20 Presetting rotary damper
Presetting the damper stops the incubator lid using either of the damper two end stops,
which could reduce damper life. This is done by rotating back the damper by 5º from it’s
end stop.
Setting left hand side damper
1. Place rotatory damper (PA200166) in vice as shown Fig.1, rotate housing with
adjustable spanner clockwise until you feel a resistance and come to it’s end stop.
Fig.2 (Note: Do not rotate further then the end stop as damper will be damaged).
