Component replacement

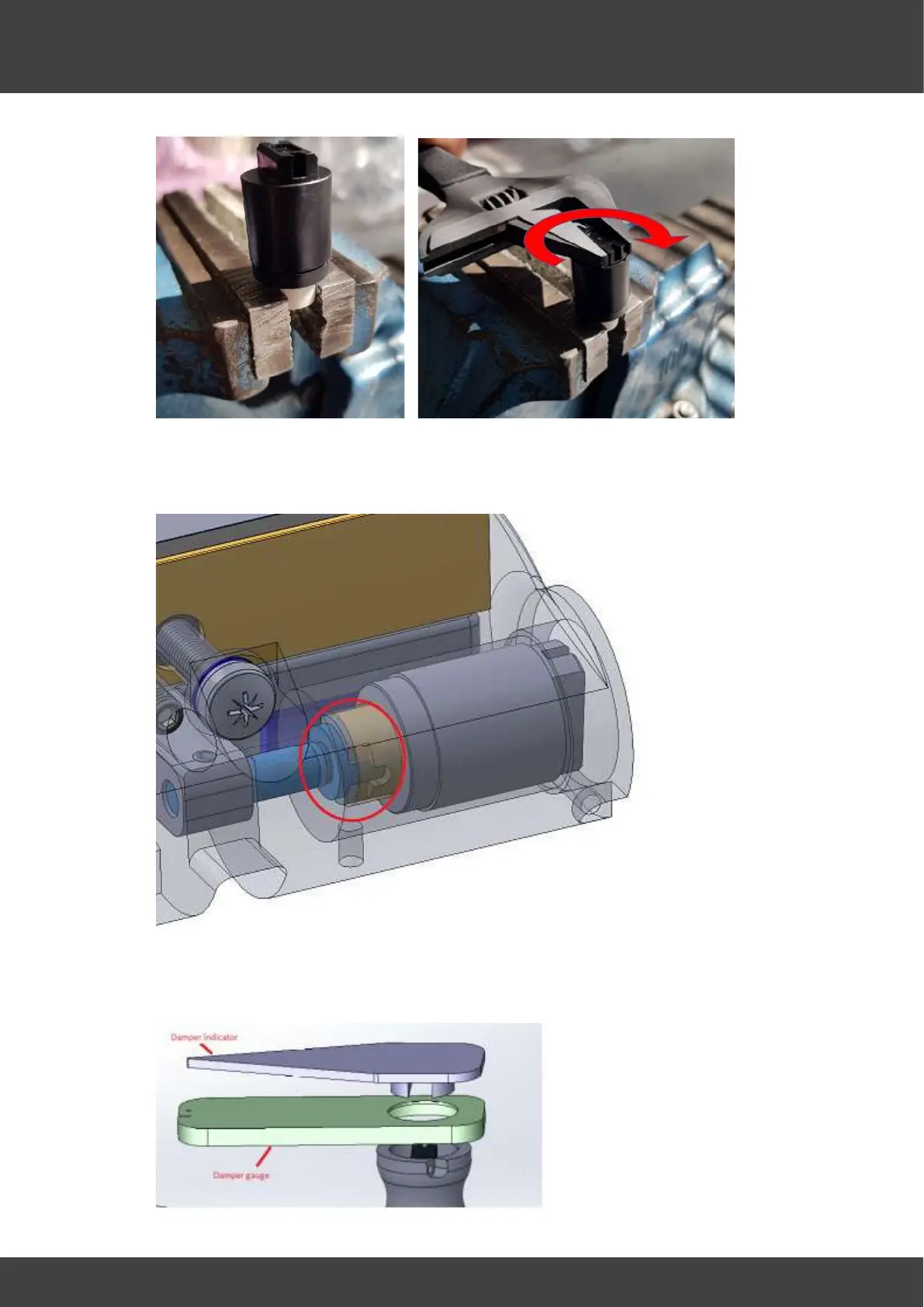

Fig.1 - Damper in vice Fig.2 - Rotating damper housing
2. Close & lock incubator lid, then insert damper fully into damper housing ensuring
shoulder screw engages fully with damper. See Fig.3.
Fig.3 – Damper engaged with shoulder screw
3. Place damper preset gauge and preset indicator onto damper housing making sure
preset indicator engages with damper, refer to Fig.4.
