BT37 MarkII: Service Manual MA200606 1.0.0
Component replacement

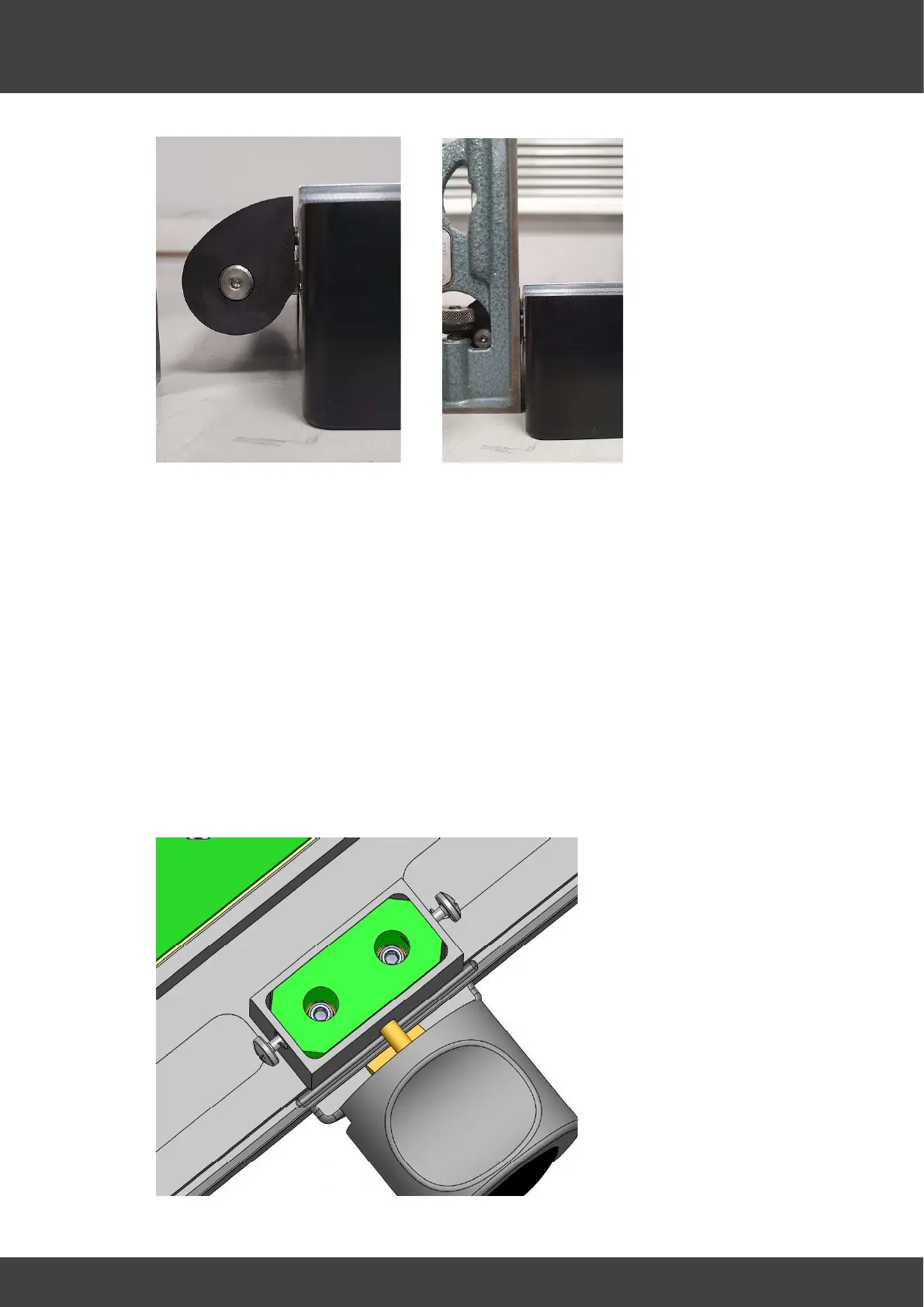

Fig 5: Hinge position Fig 6: Square lining up hinge
9. Using an allen key slowly wind the grub screws in until it bottoms out onto the top
plate. Do not over tighten as this could cause the top plate to move out of alignment
with heater plate guide jig or cause the hinge to rotate back.
10. Check that heater alignment jig is still aligned with the heater plate, if required
readjust top plate, and redo step 3 & then 8.
11. Using a pozi screw driver tighten up the two pozi screws until they are fully
tightened.
12. Remove chamber from jig and retry heater alignment jig into bottle inlet hole to make
sure alignment has not moved and approves that adjustment settings has been
successful.
13. Keeping adjustment jig spacer in chamber, adjust the two grubs screws evenly so
that when the latch cam closes you will feel a prominent click the cam against the
pin in the block. See fig 7.
