Planet NVR-820 - Page 111

NetworkVideoRecorderwithHDMI
NVR‐820/NVR‐1620

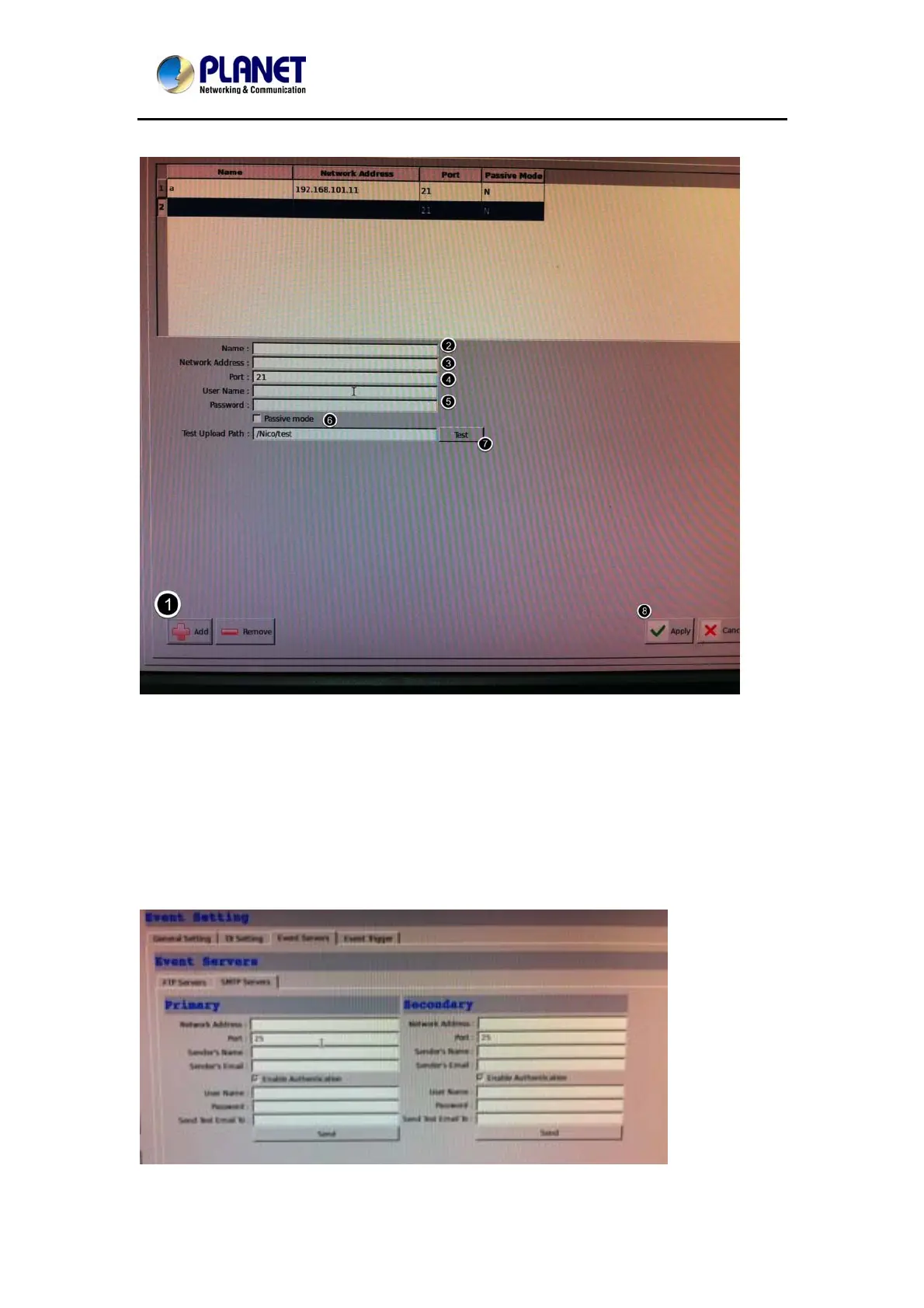

To add an FTP server,
1. Click "Add" to begin
2. Start by giving a name to the server that you are adding to the recorder
3. Enter the host name or the IP address of the FTP server
4. Enter the communication port of the FTP server (usually port 21)
5. Enter the user name and password of the FTP server if it’s required
6. Check “Use Passive Mode” if it’s required or leave it unchecked to use active mode
7. Click “Test” to verify if all information is entered correctly and the connection to the FTP
server can be established successfully
8. Click “Apply” for the settings to take effect

111
