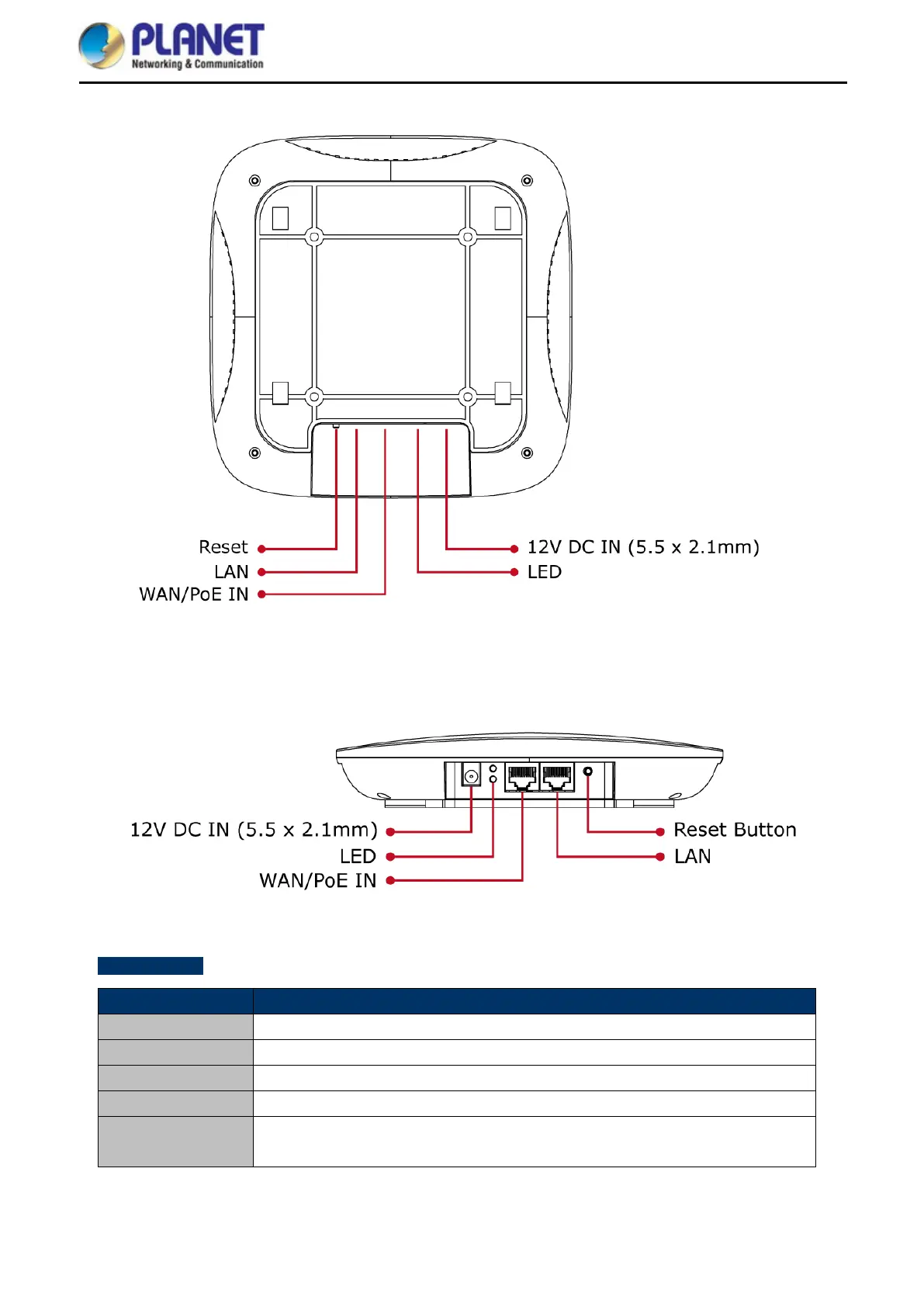

Rear Panel
Figure 2-3 WDAP-C7210E Rear Panel
Bottom Panel
Figure 2-4 WDAP-C7210E Bottom Panel
Port definition
Object
Description
12V DC
12V DC port for the power adapter( DC-Jack 5.5 x 2.1mm )
LED The access point is on.
PoE
LAN port with Power over Ethernet (PoE) IN
LAN
LAN port connecting to the network equipment.
Reset
To restore to the factory default setting, press and hold the Reset Button for
about 15 seconds, and then release it.
